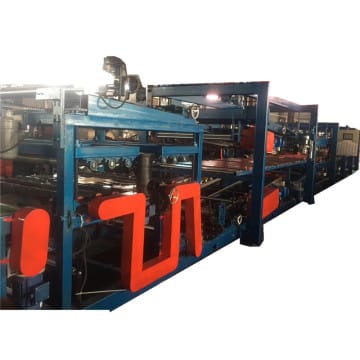

EPS Rockwood Sandwich panel production line

    Payment Type: L/C,T/T,D/P
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days
Basic Info

Model No.: zt-010

Length Of The Main Part: 9500-1650-1500mm

Weight Of Main Part: 6.8 T

Voltage: As Customer Required

Roller Fixer: Middle Plate Welded

Frame: Guide Pillar And The Thickness Is 50mm

Frame Thickness: 25mm

Drive Mode: Gear

Material Of Rollers: 45# Steel,surface Hard Chromium Plating

Material Of Shafts: 45# Steel

Additional Info

Productivity: 8-22m/min

Brand: ZhongTuo

Transportation: Ocean

Place of Origin: China

Supply Ability: 30 sets/month

Certificate: ISO9001, CE

Port: TIANJIN

Product Description


EPS Rockwood Sandwich Panel Production Line

Equipment overview:

The car panel color steel Sandwich Panel is an ideal material for multi-functional new building decoration. This kind of product has been widely used in various countries all over the world and has become a mature plate. The board can be widely used in large industrial plants, warehouses, paint shops, stadiums, supermarkets, hospitals, cold storage, mobile homes, building plus floors, clean workshops and places that need thermal insulation. It can be widely used in roofing, exterior walls and internal partitions of industrial and civil buildings with fireproof, sound insulation and insulation requirements, especially for projects with high fire protection requirements.

1

The double-sided color steel sandwich composite board unit of the compartment board is a thin double-layered high-strength material laminated on the double-sided outer layer of the thicker and lighter inner core material, forming high strength, light weight, good heat insulation effect, strong and durable, A new type of building material with a beautiful appearance. The outer layer is generally made of a 0.3-0.6 mm color steel plate, and the inner layer is a 0.25-0.5 mm color steel plate. The inner core adopts EPS expandable self-extinguishing non-flammable polystyrene, foamed polyurethane and rock wool, and the thickness can be arbitrarily selected between 50-250mm.

The production line adopts advanced production technology with gas, electricity and machinery as one. It is special mechanical equipment for processing color steel sandwich panels. The working speed is variable frequency stepless speed regulation, which can be combined at one time. The complete assembly line is discharged by the feeding mechanism and pressure type. The mechanism and composite mechanism (compression gluten, rubber coating, heating, compounding, and crimping, slotting, trimming, pneumatic, automatic cutting) are indispensable equipment for producing industrial plants, warehouses and other wall panels.

The production line is professional equipment for producing car panel color steel sandwich panels.

Take the following drawing profiles for your reference:

2


Machine working flow:

Passive Unwinder 2 sets---Hand-placed EPS sheet equipment---Foam and rock wool milling edge---Flanging wheel flanging---spraying glue-soaking glue---compositing---cutting machine cutting-- - discharging (manual lifting)

3


Main elements of the Machine

Coil feeding device

NO.

Elements

Function

Requirements

1-1

Decoiler with the bridge

With the main machine speed to feed the coil to machine

Loading weight5t,Inner ID 520mm,

1-2

Shearing system

If you need to cut any length

Manaul cutter

1-3

Spray glue system

According to different profiles and spray the glue.

1-4

Glue pump two sets

Device for proportionally supplying glue

Stepless speed regulation, range 0-0.4kg/m2

1-5

EPS Rib making

The excess material of the core material of the core material is milled, and the size of the milling cotton can be finely adjusted.

1-6

Double bag vacuum cleaner

Absorbing core material that has been milled

1-7

Press and push devide for EPS

The core material can be adjusted between 40-250mm and automatically conveyed at the same speed.

1-8

Main body and coil feeder

Main machine

Sandwich panel elements

NO.

Elements

Function

Requirements

2-2

Sizing devide

Sense the length of the finshed products

2-3

PLC operation

The whole production line is controlled by PLC

2-4

Heating Pipe

Adjust the temperature of the upper and lower plate processing zone

Shearying system



Why choose ZT EPS Rockwood Sandwich panel production line?

1. Make sure the shape is more beautiful, the panle is flat.

2. Make sure the working is safe.

3. The machine working is lower noise and more clean when working.

4. The rolling shape is more accurate and cutting length is more accurate also.

5. The motor and other PLC elements, we use the world famous brand.

Here are some finished product pictures for your reference:

4



FAQ:

1.Does one EPS Rockwood Sandwich panel production line can only produce one style product?

Not exactly. Our machines can produce more kinds of by change their rollers.

2. Do you have after sales support?
Yes, we are happy to give advice and we also send skilled technicians to your place to support the technical guidance. We will let your machines running that in order to keep your business running.

3. What can you do if the machine broken?

Our machine's warranty period is 12months. And if the broken parts can't be repaired, we will send the new one to replace the broken parts. And the only thing you need to do is paying the transport costs.

If beyond the warranty period, we can through the negotiation to solve the problems, and we will supply the technical support for the whole life of the machine.

Looking for ideal EPS Rockwood Sandwich panel production line manufacturer & supplier ? We have a wide selection at great prices to help you get the target product. If you have any question, please contact us.
