ZT Galvanized Roofing Sheet Roll Forming Machine

    Unit Price: USD 17000 - 8000 / Set/Sets
    Payment Type: L/C,T/T,D/P,Western Union
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days
Basic Info

Model No.: Zt-003-09

Additional Info

Packaging: One 40GP

Productivity: 25m/min

Brand: Zhongtuo

Transportation: Ocean,Land

Place of Origin: Hebei

Supply Ability: 30sets/month

Certificate: CE/ISO9001

Product Description

Galvanized Roofing Sheet


Roll Forming Machine

Machine Description

Quantity

Delivery time

Container Type

Price(FOB TIANJIN)

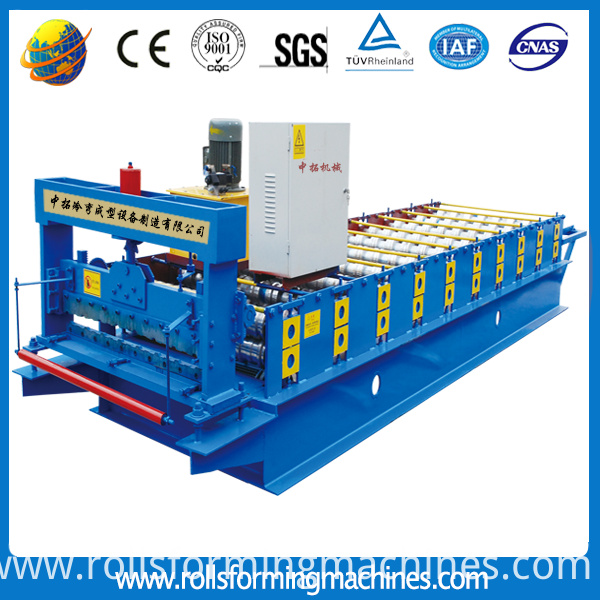

Galvanized Roofing Sheet Roll Forming Machine

1 SET

40 working days

after receiving deposit

One 20GP

USD8000---17000

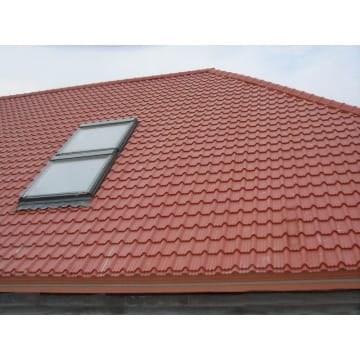

Glazed Tile Roll Forming Machine are widely used in building: the steel-structured large-scale warehouses, plants,

supermarkets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences,

and different kinds of greenhouses. What's more, equipment can be designed and manufactured as customers' requests.

Glazed Roof Tile Panel Roll Forming Machine Simply Building Roof / Wall Tiles Forming Equipment

19

Control System: PLC with touch screen

Way Of Drive: 1.2 inch single chain

Roll material: 45# high grade steel

Shaft material: 45# high grade steel

Frame material: 300 H-high grade steel

Cutting blade material: Cr 12 high grade steel

Cutting type: hydraulic cutting

Lanugage system: Chinese ,English ,Russian

Size of container: 40GP

Feature: high speed, low energy consumption

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Step formed→ Auto cutting→Products receiving

Packaging Detail:

1. one 40ft container for loading one set machine with Manual Decoiler;

2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film;

3. Spare parts and some small parts packed in plastic tooling box;

4. All Components Fixed by steel wire with Container.

Delivery Detail: 45 days after receipt of buyer's deposit.

2. Parameters

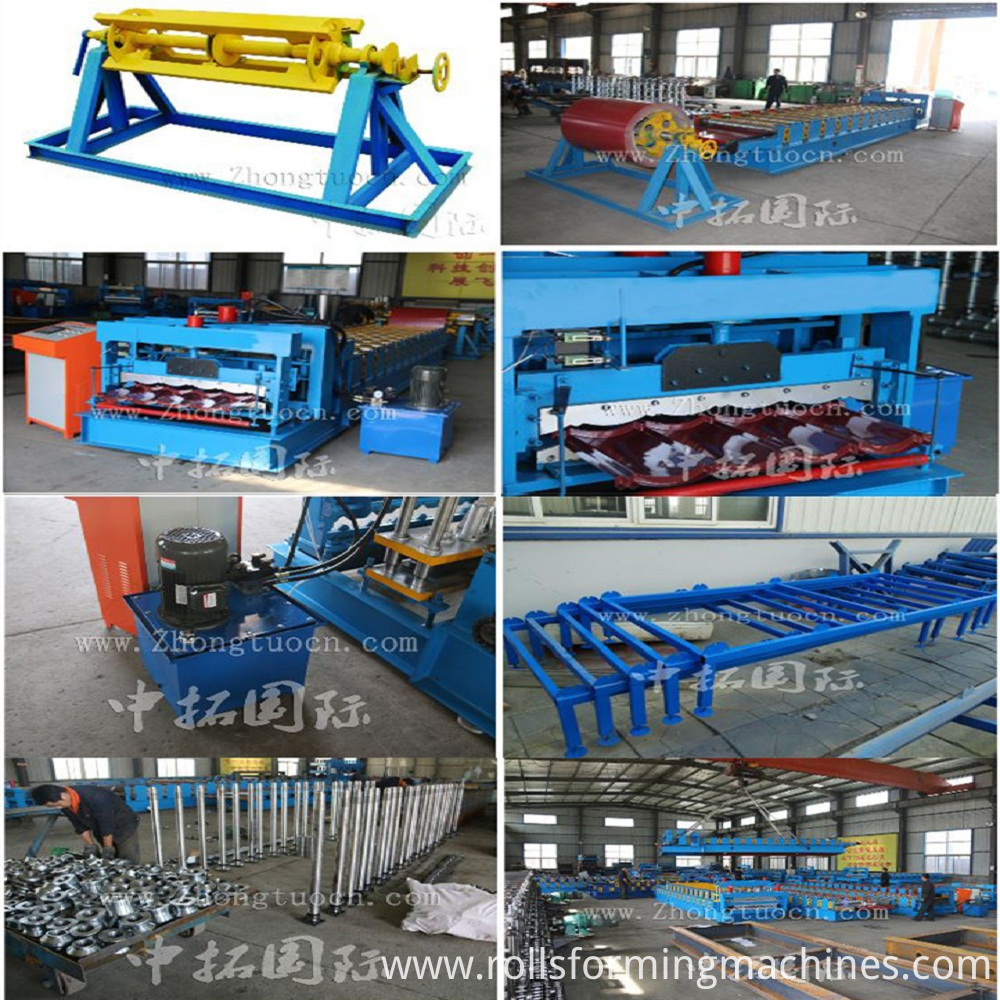

More photos of line:

Product name

Metal roofing roll forming machine

NO.

Items

Parameters

Remark

1

Suitable

Material

Type

GI/PPGI/AL

Width

1000/1200/1220/1250mm

Custom

Thickness

0.40-0.70mm

2

Product

Specifications

Length

Any length

Length Tolerance

±2mm/6m

3

Working Speed

25 m/min (10 piece per min as 8 feet per piece)

Standard machine

4

Control System

Mitsubishi/Siemens PLC& transducer

Custom

5

Total Power

About 12KW

6

Total Weight

About 10.5T

Up to final design















Components of production line

Glazed tile roll forming machine (19)

No.

Name

Unit

Qty

1

Manual decoiler

set

1

2

Main forming machine

set

1

3

PLC control system

set

1

4

Hydraulic pump station

set

1

5

Post cut

set

1

6

Electric motor

set

1

7

Output table

set

1

5.Spare parts


1

Magnetic Valve (1 PCS)

2

Counter (1 PCS)

3

Hydraulic Oil Pipe (2 PCS)

4

Position Switch (2 PCS)

5

Counter Wheel (2 PCS)

6

Relay (4 PCS)

7

Protector Tube (4 PCS)


No.

Main parameter of Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

950mm

3

Roller

Up layer:11 rows Down layer:14rows

4

Dimensions

8700*1550*1910mm

5

Power

4+4kw

6

Thickness of the plate

0.3-0.6mm

7

Productivity

15-20m/min

8

Material of the cutting blade

Cr12

9

Diameter of the roller

Φ70mm

10

Weight

About 5.9T

11

Voltage

380V 50Hz 3phases

14

Control system

PLC control


Looking for ideal Galvanized Roofing Sheet Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Zt Metal Roofing Roll Forming Machine are quality guaranteed. We are China Origin Factory of Metal Step Tile Machine. If you have any question, please feel free to contact us.
