Zhongtuo Roll Forming Machinery Co., ltd

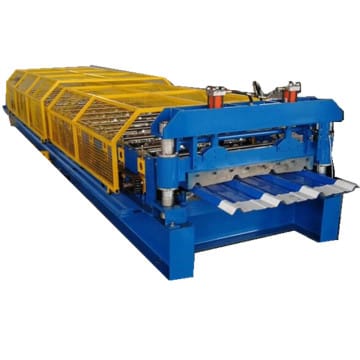

IBR color sheet roll forming machine
IBR color sheet roll forming machine
IBR color sheet roll forming machine
IBR color sheet roll forming machine
IBR color sheet roll forming machine

IBR color sheet roll forming machine

Payment Type: L/C,T/T,D/P
Incoterm: FOB,CIF
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Contact Now

Basic Info

    Model No.: zt-010

    Length Of The Main Part: 9500-1650-1500mm

    Weight Of Main Part: 6.8 T

    Voltage: As Customer Required

    Roller Fixer: Middle Plate Welded

    Frame: Guide Pillar And The Thickness Is 50mm

    Frame Thickness: 25mm

    Drive Mode: Gear

    Material Of Rollers: 45# Steel,surface Hard Chromium Plating

    Material Of Shafts: 45# Steel

Additional Info

    Productivity: 8-22m/min

    Brand: ZhongTuo

    Transportation: Ocean

    Place of Origin: China

    Supply Ability: 30 sets/month

    Certificate: ISO9001, CE

    Port: TIANJIN

Product Description

IBR sheet Roll Forming Machine

Generally speaking, an IBR sheet roll forming machine can easily produce the metal roofing sheets in the speed of the 25 meter to 50 meter per minute with Inverted Box Ribs. Like other metal sheet roll former, IBR sheet roll forming machine has advanced PLC control system & Omron encoder and is capable to run both automatically and manually.

What is the IBR panel sheet?

IBR, abbreviated from [Inverted Box Rib", usually applies for the outside cladding or roofing materials in commercial, industrial and residential buildings. Besides, the raw material is mostly Galvanized steel with the thickness from 0.4mm-0.8mm, and the width 925mm and 1219mm. Sometimes the customer also uses the PPGI as raw mateiral and the thickness also could be from 0.18 to 0.2mm if the customer uses SG550 hardness strong material. The IBR roofing roll forming machine and corrugated sheet roll forming machine are TOP 10 metal roofing roll formers in African steel building industry. Here is one drawing profile for your reference:


Based on the IBR sheet features, we design machine like following:


Technical Specifications of 686 IBR for Example Sheet Roll Forming Machine:

1.Uncoiler: Manual Uncoiler or you can choose hydraulic decoiler

2.Inner diameter: 508mm

3.Outer diameter: 1250mm.

4.Loading weight: 5 tons or 10 Ton

5.Forming speed: 12m/ 50 m/min

6.Forming steps: 16 stations

7.Material of Shafts: 45# high-quality steel

8.Diameter of Shafts: 70mm

9.Material of Roller: high quality 45#steel coated with hard chrome 0.05mm.

10.Thickness of Siding Plate:25mm

11.Transmission: chains-sprockets or gearbox

12.Motor Power: 15 KW

13.Material of cutting blade: Cr12 with quenched treatment 60-62

14.Hydraulic Power: 4 KW

15.Panasonic PLC Control system, touch screen, frequency converter

16.Voltage 380V/50HZ/3phase or customize

The following part is about the details of the IBR machine:


1.For the gear it is important for the machine we use Chinese famous brand HRB

2.For the leveling part, we will use two layer and handrail adjustment.

3.For the roller we use the carefully polishing to make sure it will not damge the surface of raw material.

The main parts of the IBR roof panel roll forming machine is composed by the following elements:

Manual Uncoiler;

Feeding Guider;

Roll forming machine;

Hydraulic Cutting system;

PLC Control System;

Run-out Table

For the IBR roofing machine above is about the slow speed like 25 meter per minute. We also have another options like 45 meter per minute, here is the machine pictures for your reference:



1.Does one IBR roofing machine can only produce one style product?

Not exactly. Our machines can produce more kinds of by change their rollers.

2. Do you have after sales support?
Yes, we are happy to give advice and we also send skilled technicians to your place to support the technical guidance. We will let your machines running that in order to keep your business running.

3. What can you do if the machine broken?

Our machine's warranty period is 12months. And if the broken parts can't be repaired, we will send the new one to replace the broken parts. And the only thing you need to do is paying the transport costs.

If beyond the warranty period, we can through the negotiation to solve the problems, and we will supply the technical support for the whole life of the machine.

Looking for ideal IBR roofing machine manufacturer & supplier ? We have a wide selection at great prices to help you get the target product. If you have any question, please contact us.


Looking for ideal IBR Roofing Sheet Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the High Quality Production Line are quality guaranteed. We are China Origin Factory of Stainless Color Steel. If you have any question, please feel free to contact us.

Product Categories : Roofing/ Wall Panel Sheet
