Zhongtuo Roll Forming Machinery Co., ltd

ZT840 roof wall sheet roll forming machine
ZT840 roof wall sheet roll forming machine
ZT840 roof wall sheet roll forming machine
ZT840 roof wall sheet roll forming machine
ZT840 roof wall sheet roll forming machine

ZT840 roof wall sheet roll forming machine

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,FCA,CPT,CIP
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Contact Now

Basic Info

    Model No.: ZT-005

    Decoiler: 5 Ton Decoiler

    Entry Leveling: Guarantee That The Products Are Neat

    Roll Forming Machine: Number Of Rollers : 15 Rollers

    Material Of Rollers: Gcr15 Steel, Quenching Treatment 58-60°

    Shearing System: Feature : Ensure Stability, Precision And Cutting

    Power Supply: Hydraulic Power

    Hydraulic Station: Hydraulic Oil: 46#

    Electric Control System: Adopted PLC

    Counter: Omron Encoder For Length Measurement

    Run Out Table: Adopts Welded Steel And Supported Roller To Transm

Additional Info

    Packaging: covered by the anti rust oil and plastic film

    Productivity: 10 sets/month

    Brand: Zhongtuo

    Transportation: Ocean

    Place of Origin: China

    Supply Ability: 120 sets/year

    Certificate: CE ISO 9001 SGS

Product Description

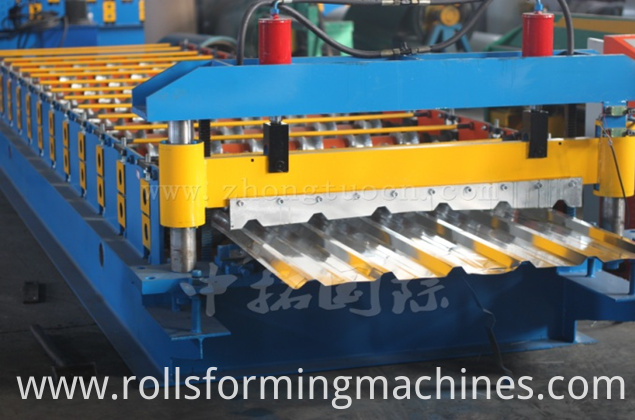

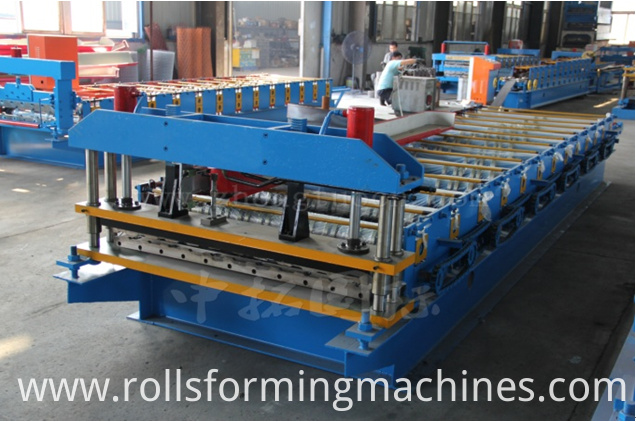

ZT840 roof wall sheet Roll Forming Machine

This 1000 metal roof sheet machine Roofing Panel roll forming machine is consisted of a below parts: Decoiler,Entry leveling,Roll forming machine,Shearing system ,Hydraulic station,

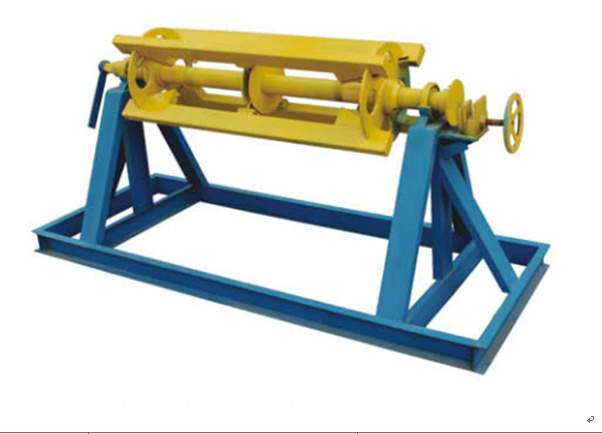

5 Ton decoilers

roof sheet roll forming machine

Processing material: colored steel plate, galvanized plate

Material thickness: 0.4---1.2mm

Material hardness: 195 mpa---350 mpa

Forming speed: 8-12m/min


roof sheet roll forming machine

Usage:Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate board.

roof sheet roll forming machine

roof sheet roll forming machine

roof sheet roll forming machine

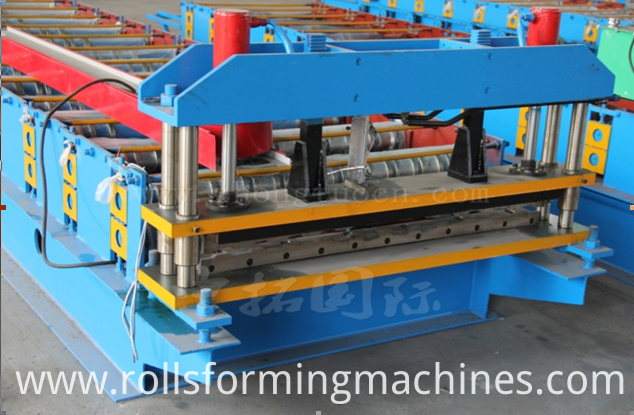

1.Feature : Ensure stability, precision and cutting speed

2.Function : Automatic cutting controlled by PLC

3.It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

4 .Material of blades: Cr12 quenched

5 .Power supply : hydraulic power

6. Components: It contains one set of blade, one hydraulic tank and one cutter machine.


roof sheet roll forming machine

1. It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

2.Power:3kw

3.Hydraulic oil: 46#

4. Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, four hydraulic pipes. and two sets of electromagnetism valves.


roof sheet roll forming machine

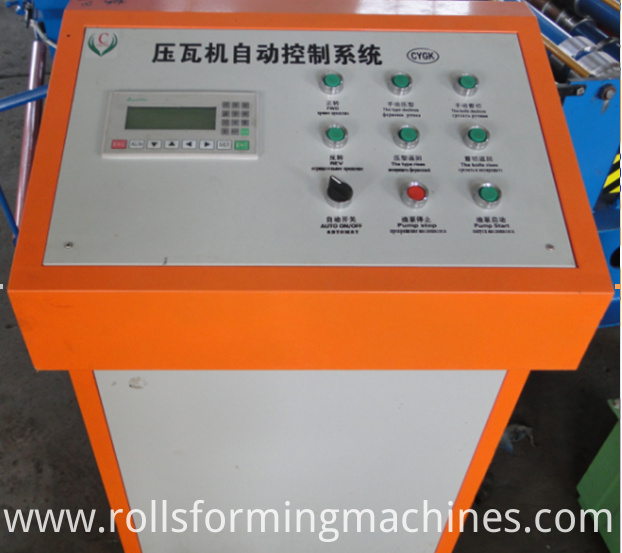

Adopted PLC , frequency converter , Delta fromTaiwanto ensure high speed with stability, precision and lifetime.


One counter gauges length, pulses, and decides length.

Omron encoder for length measurement.


roof sheet roll forming machine

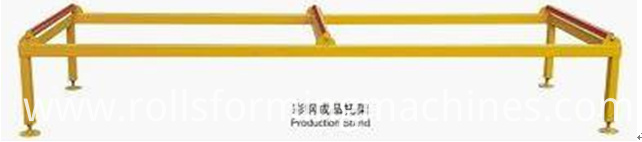

It adopts welded steel and supported roller to transmit the products.

Zhongtuo factory is professinal design different kinds of roofing machine based on customers requirements.Any planning of your roofing sheet, no matter normal roofing sheet, or glazed tile roofing sheet, or stone coated roofing machine, welcome contact me:




Looking for ideal Roof Sheet Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Wall Sheet Roll Forming Machine are quality guaranteed. We are China Origin Factory of 840 Roll Forming Machine. If you have any question, please feel free to contact us.

Product Categories : Roofing Sheet Roll Forming Machine > Roof and Wall Panel Roll Forming Machine
