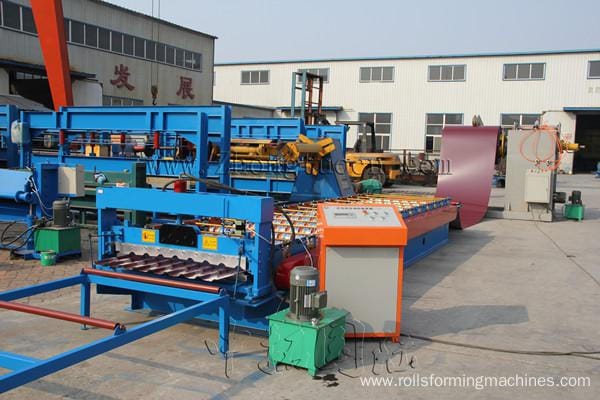

Trapezoid Metal Sheet Forming Machine ZT36-129-889

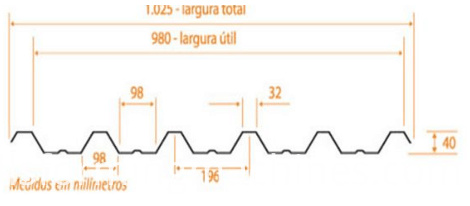

ⅠDrawings profile of roof tile:
Material used : gavanized and galvalume
Formed width: 980mm
Wave height: 40mm
Material thickness: 0.43mm- 0.65mm
Material hardness: 195 mpa---350 mpa
Forming speed: 15m/min
Ⅲ Production process
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving
1. Un-coiler System
Usage: It is used to support the steel coil and uncoil it in a turntable way.
Passive uncoil pulled by roll forming system
1) Coil inner diameter: 450-550mm
2) Max coil out diameter:1300 -1600 mm
3) Max coil width: 1250mm
4) Carrying capacity:10T
5 ) Hydraulic expansion
6 ) Automatically feeding
7) Hydraulic, inner tight
8) Hydraulic power : 3 kw Drive power:3kw
2. Coil feeding part
Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat,
parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.
3. Main Roll Forming System
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive,chain transmission,
roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working
Feature : Ensure stability , precision and lifetime.
| 1 || |
Length of the main part
| 2 || |
Weight of main part
| 3 || |
| 380V/50HZ3Phase (as customer`s request) |
| 4 || |
Middle plate welded
| 5 || Frame || |
350 H steel welded
| 6 || Frame thickness |
| 7 || |
| 8 || |
Material of rollers
45# steel, surface hard chromium plating.
| 9 || |
Material of shafts
| 10 || |
Diameter of shafts
| 11 || |
Number of rollers
| 12 || |
| 5.5kw |
4. Cutting device
Feature : Ensure stability, precision and cutting speed
Function : Automatic cutting controlled by PLC
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12 quenched
Power supply : hydraulic power
Components: It contains one set of blade, one hydraulic tank and one cutter machine.
One counter gauges length, pulses, and decides length. Omron encoder for length measurement.
6. Products receiving tables.
1) It adopts welded steel and supported roller to transmit the products.
7. Controlling device
1) Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with
stability, precision and lifetime.
2) Other electric element are Delta
3) Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.
| Screen |
| PLC |
| Text screen displayer |
| Taida DVP14ES from Taiwan |

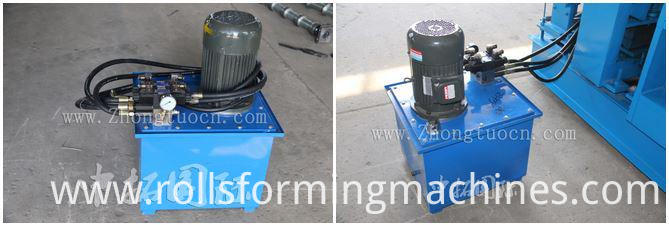

(include a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves )
Advanced hydraulic system from Taiwan

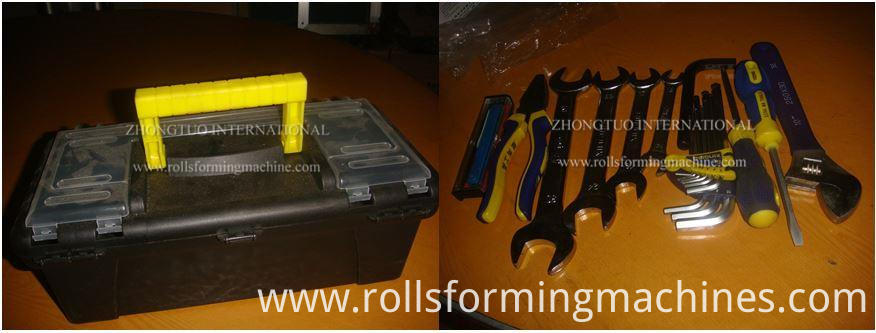

Ⅳ Spare parts ( for free)
1. Easy damaged parts: conk 2 pcs, fuse-link 4 pcs;
2. Rubber mat 1 pcs;
3. Bolt spanner 1 pcs
30% T/T in advance and balance 70% after inspection confirmation before shipment.
within 45 working days after receipt of deposit.
Nude packing with 1*40HQ container
One year, and we will provide the technical support for the whole life.
1.Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50 / person/day for salary.
2. Need one technician
3. Training time: one week (contains the time of installation and adjustment)
