Roller shutter door frame forming machine

    Unit Price: USD 22000 - 8500 / Set/Sets
    Payment Type: L/C,T/T,D/P
    Incoterm: FOB,CFR,EXW
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
Basic Info

Model No.: ZT-005-236

Material: Steel

Opening Style: Rolling

Door Panel Pattern: Linear

Color: White

Surface Finishing: Finished

Additional Info

Packaging: As Customer's Requirement

Productivity: 10-15m/min

Brand: ZHONGTUO

Transportation: Ocean,Land,as customer requirem

Place of Origin: Made in China

Supply Ability: 20set per Month

Certificate: ET, ISO9001

Port: TIANJIN,QINGDAO,SHANGHAI

Product Description

Roller shutter door frame forming machine

Product Destription

The roller shutter door frame forming machine can manufacture galvanised roller shutter door slats. Produced products are in fashionable design and are widely used.

Roll Shutter Door Slat Roll Forming Machine with the highest security in rolling fire doors, rolling steel doors, fire doors, rolling shutter, offshore rolling doors, offshore rolling fire doors, storm doors.

Quickly informations:

1.Control system:computer control

2.Main forming unit driving motor power:5.5kw

3.Material of rollers:45#steel,quenched HRC58-62,coated with rigid chrome.

4.Material of roller shafts:45#steel

5.Step of rollers:14steps

6.Forming speed:10-15m/min

7.Thickness to be rolled:0.5-1.5mm

Components of Line

1. Decoiler

Industrial Shutter Door Making Machine

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Passive uncoil pulled by roll forming system

a. Coil inner diameter: 450-550mm

b. Coil max width: 300mm
c. Max carrying capacity: 3000kg

(you can choose this part with Electric or hydraulic)

2. Entry leveling and punching dots

Industrial Shutter Door	Making Machine

This part will level coil to make sure it is neat clean and straight.

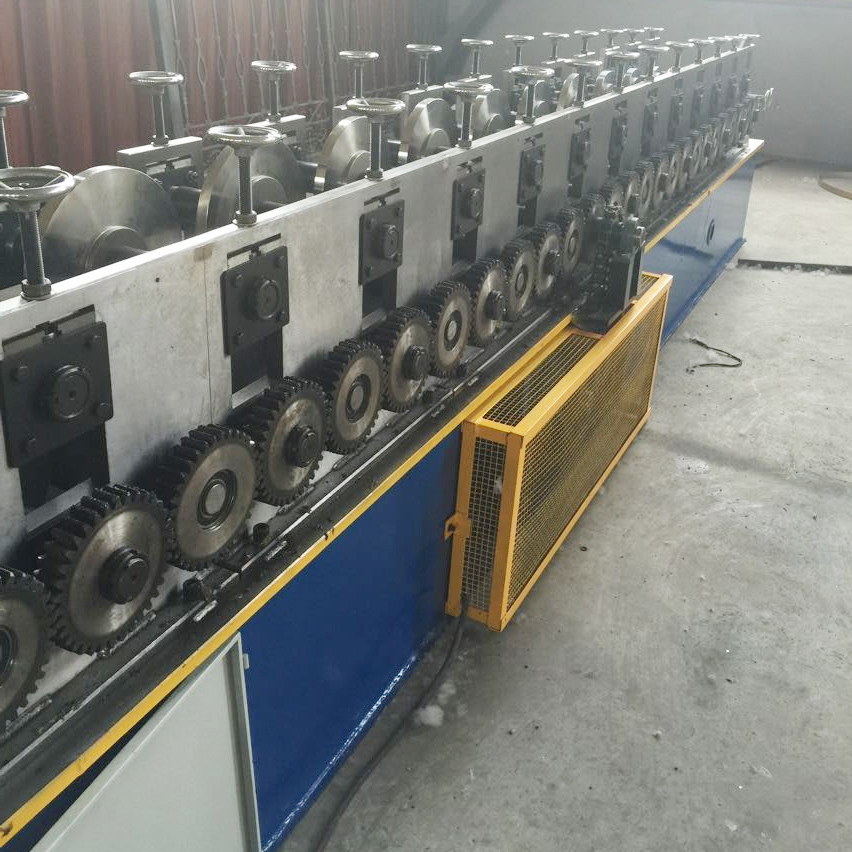

3. Roll forming machine

Industrial Shutter Door	Making Machine

 Industrial Shutter Door Making Machine

a. Number of forming steps: 14 stations

b. Shaft material: 45# steel with quenched treatment, precision machined,

The diameter: ¢56mm

c. Roller material: bearing steel with quenched treatment

d. Transport: by gear

e. Forming speed: 10-15m/min
f. Motor:5.5kw

g.Voltage:380v, 50Hz,3 phase

h. Structure: independent stand

4. Shearing system

Industrial Shutter Door	Making Machine


 Industrial Shutter Door Making Machine

Servo flying and tracking cutting saw, the cutting saw will adjust the cutting speed and location according to the main machine speed. By this method, the machine working speed will be same as the main machine accordingly. The cutting plate we take the best material for cutting it in high speed and beautiful cutting scare.

The material of blade: Cr12Mov, Hardening HRC 58-62℃

Length Tolerance:3m±1.5mm

5. Hydraulic station

Industrial Shutter Door Making Machine

Hydraulic motor Power: 3kw

Hydraulic oil: 46#

Hydraulic pressure : 12Mpa

Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, and two hydraulic pipes. And two sets of electromagnetism valves.

6. PLC station

Industrial Shutter Door Making Machine-PLC station

PLC control system, we will take Panasonic or you can specify the one you like. Different with normal machine, PLC programmed will add servo cutting saw control parameters.

7. Run out table

It adopts welded steel and supported roller to transmit the products.


ZTRFM has been dedicating to roll forming technologies for over 2 decades and now boasts strong experience, capabilities, innovative thinking and roll forming expertise to provide perfect roll forming solutions to our clients. At ZTRFM, we can help build a better future for you and your customer.

FAQ

1. IS AFTER SALES SERVICE AVAILABLE?

Yes, we offer 7x 24hours online support and our engineers can work oversea to help.

2. HOW CAN I GET TO YOUR FACTORY?

a. First fly to Beijing airport and then go from Beijing Nan to Cangzhou Xi (1 hour) by high speed train . Then we can pick you up at the railway station.

b. First fly to Shanghai Airport and then go from Shanghai Hongqiao to Cangzhou Xi(4.5 hours) by high speed train. Then we can pick you up at the railway station.

3. WHAT IF SOME PARTS BREAK?

We offer warranty of 12 months ,during which free spare parts are available if some parts of the machine break to be irreparable. Besides, we also offer whole life technical support which means we will still offer technical advice 1 year after your purchasing. We can discuss to help you out.

4. CAN YOU TAKE CHARGE OF TRANSPORT?

Yes, we have strong expertise in this area for years and you can trust us.


Looking for ideal Door Frame Machine Roller Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Door Frame Machine Shutter Door are quality guaranteed. We are China Origin Factory of Frame Forming Machine Shutter Door. If you have any question, please feel free to contact us.
