Automatic Rolling Shutter Door Making Machine
Automatic Rolling Shutter Door Making Machine
Automatic Rolling Shutter Door Making Machine
Automatic Rolling Shutter Door Making Machine
Automatic Rolling Shutter Door Making Machine

Automatic Rolling Shutter Door Making Machine

Unit Price: USD 45000 / Set/Sets
Payment Type: L/C,T/T,D/P,Western Union
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Contact Now

Basic Info

    Model No.: ZT-002

    Material Type: Aluminum Coil Plate And Colorful Galvanize Steel

    Roller Material: Cr12

    Axial Diameter: 40mm

    Main Shaft Material: 40Cr

    PLC Touch Screen: Siemens

    Inverter: Mitsubishi

    PLC Control: Fix Length Control ±1mm

    Machine Basement Material: H Beam

    Driving: Gear Box

    Material Thickness: 0.8- 1.2 Mm

Additional Info

    Packaging: as customer's need

    Productivity: 15-50m/min

    Brand: zhongtuo

    Transportation: Ocean,Land,Air

    Place of Origin: China(mainland)

    Supply Ability: 30 sets/month

    Certificate: CE,ISO,SGS,IAF,CNAS.

    HS Code: 8455221000

    Port: TIANJIN

Product Description

Automatic Rolling Shutter Door Making Machine

Metal shutter door is widely used in the shop, hotel , bank etc building, because it is easy to open and close , Also very easy to install, For fit this market, we manufactured the High speed Roller Shutter Door Forming Machine. Metal shutter door has many types, here I will take random profile drawing and type for your reference.

profiles of roller shutter door

Working flow of Shutter Door Roll Forming Machine:

Decoilerà leveling systemà Roll Forming Machineà shearing systemà runout table

Main parameter and basic introduction of shutter door machine:

Decoiler:

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Passive uncoil pulled by roll forming system

a.Coil inner diameter: 450-550mm

b.Coil max width: 300mm
c. Max carrying capacity: 3000kg

decoiler

Leveling system:

Entry leveling and punching dots if you need.

This part will level coil to make sure it is neat clean and straight.

leveling part of shutter door making machine

Main roll forming machine system:

a. Number of forming steps: 12 stations

B. Shaft material: 45# steel with quenched treatment, precision machined,

The diameter: 40mm

c. Roller material: Cr15Mov with quenched treatment

d.Transport: by gear

e. Forming speed: 18-20m/min
f. Motor: 4kw

g. Voltage: 380v, 50Hz,3 phase

h. Structure: independent stand

i. Size of machine: 4.5m *0.8m *1.2m

j. weight:1.8T

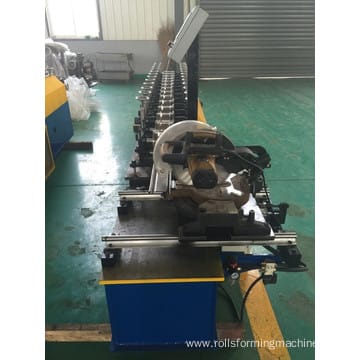

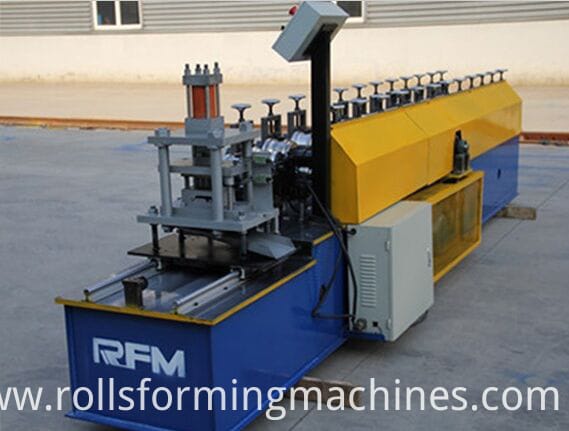

automatic rolling shutter door making machine

Shearing system:

The material of blade: Cr12Mov,

Hardening HRC 58-62

Length Tolerance:3m±1.0mm

The punched holes will be done together with the shearing system.

shearing system of rolling shutter door machine

Hydraulic station:

Hydraulic motor Power: 3kw

Hydraulic oil: 46#

Hydraulic pressure: 12 Mpa

Brand: Chinese famous brand.

Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, and two hydraulic pipes. And two sets of electromagnetism valves.

hydraulic station

PLC Control system:

Feature:

Adopted PLC, transducer, touch panel from Mitsubishi Japan to ensure high speed with stability, precision and lifetime.

Other electric element is Schneider

Equipped with movable switch, air break, radiator, transformer & electric leakage protector, that element can make sure easy operation convenience and safety.

Brand: Delta Taiwan brand or Semen Germany brand or Panasonic, Japan brand.



Looking for ideal Rolling Shutter Door Making Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Automatic Rolling Shutter Door Making Machine are quality guaranteed. We are China Origin Factory of Automatic Rolling Shutter Door Machine. If you have any question, please feel free to contact us.

Product Categories : Roller Shutter Door Forming Machine
