Zhongtuo Roll Forming Machinery Co., ltd

Roller shutter door making machine
Roller shutter door making machine
Roller shutter door making machine
Roller shutter door making machine

Roller shutter door making machine

Unit Price: USD 12000 / Set/Sets
Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Min. Order: 1 Set/Sets
Delivery Time: 50 Days

Contact Now

Basic Info

    Model No.: ZT-006

    Drive Mode: Chain

    Material Of Rollers: GCr15MoV

    Material Of Shafts: 45# Steel With Tempering

    Material Of Blades: Gcr12MoV Quenched

    Voltage: 380V/50HZ3Phase (as Customer`s Request)

    Name: Purlin Machine Manufacturer In Botou

    Diameter Of Shafts: Φ76mm

    Number Of Rollers: 16 Rollers

    Main Power: 15kw

    Hydraulic Motor Power: 5.5kw

    Certification: SGS, CE, ISO

    Condition: New

    Customized: Customized

    Automatic Grade: Automatic

    Structure: Other

    Transmission Method: Electric

Additional Info

    Packaging: As customer's need

    Productivity: 0-25m/min

    Brand: zhongtuo

    Transportation: Ocean,Land,Air

    Place of Origin: China(mainland)

    Supply Ability: 30 sets/month

    Certificate: CE,ISO,SGS,IAF,CNAS.

    HS Code: 84552210

    Port: Xingang, Tianjin, China

Product Description

roller shutter door making machine

ThePerforated Roller Shutter Door Machine can manufacture the Galvanized roller shutter door slat. Produced products are in fashionable design and are widely used. Perforated Roller Shutter Door Machine with the highest security in rolling fire doors, Rolling Steel Doors, Fire Doors, rolling shutter smoke doors, air-leakage doors, counter shutters, insulated doors, rolling sound doors, and storm shutters. rolling steel doors, rolling steel fire doors, rolling fire shutters, insulated fire doors, rolling steel grilles. Roller shutter garage doors are designed for use in industrial, commercial, airports, retail, hotel, institutional, malls and shopping centers.

shutter door making machine (3)

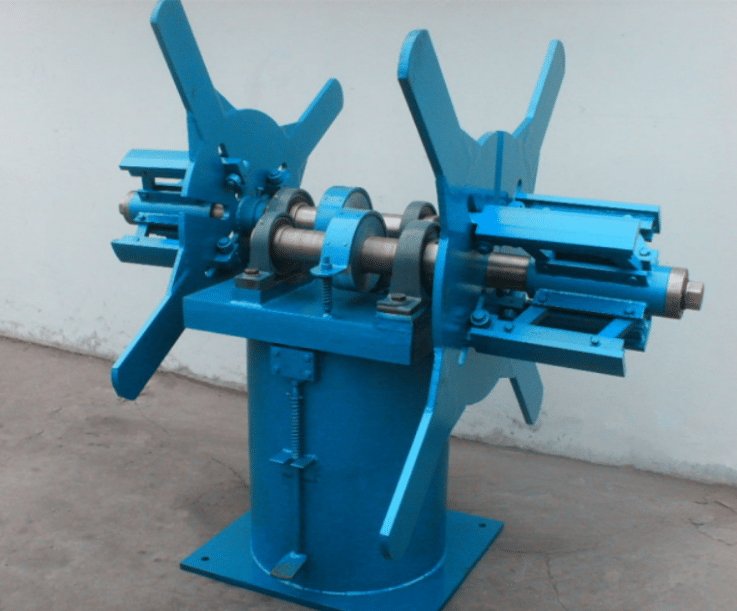

Decoiler SystemUsage: It is used to support the steel coil and uncoil it in a
turnable way. Passive uncoil pulled by roll forming system
Capacity: Each head 1.5 Tons
Loading width: Max 300 mm
Valid expanding range for coil inner diameter: 450-550 mm

Feeding System

Usage: Put the raw material (steel plate) through the beach
to manufacture and process, it can guarantee that the
products are neat, parallel and everything is uniformity.
Please refer to the equipment regulation to know the
function of locate angle iron.

Main Roll Forming System

Usage: In order to keep the product shape and precision,
adopts welded sheet structure, motor reducer drive, gear
transmission, roller surfaces polishing, hard plating , heat
treatment and galvanizing treatment .
Length of the main part: About 3500 х 900 х 1000 mm
Weight of main part: 3 tons
Voltage : 380 V 50 HZ 3 Phase
Frame type: Memorial arch frame
Drive mode: Gear
Material of rollers: GCr 12 quench with 58-60°
Material of shafts: 45# steel with tempering
Diameter of shafts: φ 50 mm
Number of rollers : 12 rollers
Main power: 5.5 kw
Forming speed: 15-20 m/minute

Cutting System

Usage: Automatic cutting controlled by PLC. It adopts the
hydraulic drive and automatic location to decide the
dimension and cut the target products.
Power supply : Hydraulic power
Material of blades : Gcr 12 quench 58-60°
Components: It contains one set of blade, one hydraulic tank
and one cutter machine

Receiving table

It adopts welded steel and supported roller to transmit the products.
Table quantity: 1 sets
Table length : 3 m/per set

roller shutter door machine

Looking for ideal Door Making Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Shutter Door Making Machine are quality guaranteed. We are China Origin Factory of Roller Shutter Door Machine. If you have any question, please feel free to contact us.

Product Categories : Roller Shutter Door Forming Machine
