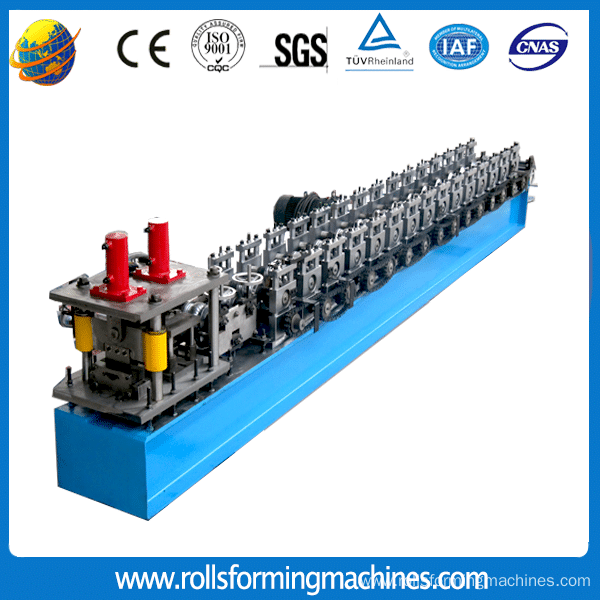

Garage door roller shutter roll forming machine

    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Incoterm: FOB,CFR,CIF,FCA
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
Basic Info

Model No.: ZT-005-103

Material: Steel

Opening Style: Rolling

Surface Finishing: Finished

Roller Material: Gcr12MoV Quenched

Shaft Material: 45#steel Processing

Shaft Diameter: ¢50mm

Roller Station: 12 Rows(Final Rollers Depend On The Design)

Power: 4KW

Speed: 6-10m/min

Material Thickness: 0.5---1.5 Mm

Additional Info

Packaging: nake package

Productivity: 30 sets/month


Transportation: Ocean,Land,as customer requirem

Place of Origin: China

Supply Ability: 30 sets/month

Certificate: CE, ISO9001

Product Description

Garage door roller shutter garage door roll forming mahcine

Garage door roller shutter garage door roll forming mahcine can produce shutter door Smooth.

This machine can production all kinds production,such as rolling fire door, rolling steel door,rolling garage door and so on.

garage door roller shutter garage door roll forming mahcine have can produce two types, shutter slats and Australia shutter door.About the shutter door slats,it can be produce with double and poured into PU.It has a good function to stop the warm.

Composition of all the production line:

Garage door roller shutter garage door roll forming mahcine consists of uncoiler, Perforation,feeding and straightening,main roll forming part,punching parting,cutting device and runout table.

Perforation machine can make the holes concentrated, it is different from the punching part.

Process Flow of Garage Door Roll Forming Mahcine :

Uncoiling→ (Perforation machine )→Feeding material into machine→Roll forming→Measuring length→ (punching )→Auto cutting→Products receiving

Parameters of Garage Door Roll Forming Mahcine:

Raw material:

Type: colored steel plate, galvanized plate, or aluminium plate

Thickness: 0.5---1.5 mm (As customer`s need)

Material hardness: 550 mpa---350 mpa

Material width: 117mm-310mm (According to customer`s profile)


Max width: 1250mm (According to customer`s profile)

Inner diameter: 450-650mm (According to customer`s profile)

Max Loading capacity: 5 T

Perforation machine:

Power: 4KW (According to the thickness)

The distribution,area and size of the holes: As customer`s need (The basic information for quote the Perforation machine)

Thickness: 0.5---1.5 mm (As customer`s need)

Main roll machine:

Working efficiency: 6-10m/min

Forming by rolling Roll: 12 rows(Final rollers depend on the design)

Roller material: Gcr12MoV quenched

Shaft material: 45#steel processing

Diameter of shaft: ¢50mm (Final rollers dependon the design)

Main part power: 5.5kw (Depend on the thickness of material and size of machine)

Hydraulic motor power :3kw (Depend on the thickness)

Scissor material: Gcr12MoV quenched

Voltage: 380V, 50HZ,3 phase (As customer`s need)

Transmission: Gear box (Chain and gear box depend on thickness and customer`s need)

Detailed picture of Garage Door Roll Forming Mahcine:

detailed of garage door roller shutter garage door roll forming mahcine

Sample of shutter door:

shutter door

Our service:

1. Installation and training :
a.If buyers visit our factory and check the machine, we will teach you how to install and use the Roll Forming Machine , and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service :
a.One year guarantee.
b.24 hours technical support by email or calling
c.If there is any problem be found of machine , we will repair roll forming machine for free in one year.

Pictures of shipping machine:



1.You are trade company or factory?
- We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.
2. Why your price is higher than others?
- As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free quality assurance.

Looking for ideal Garage Door Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Garage Door Roll Forming Machine are quality guaranteed. We are China Origin Factory of Roller Shutter Garage Door Roll Forming Machine. If you have any question, please feel free to contact us.
