CE Galvanized C Z Purlin Roll Forming Machine

    Unit Price: USD 52000 - 9800 / Set/Sets
    Payment Type: L/C,T/T,D/P,Western Union
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 40 Days
Basic Info

Type: Cold Bending Equal Channel

Standard: GB, ASTM, JIS, AISI, DIN, BS

Shape: C Channel

Perforated: Not Perforated

Length: 5-12m

Additional Info

Packaging: nude packing

Productivity: 5-15m/min

Brand: zhongtuo

Transportation: Ocean,Land,Air,as customer requirem

Place of Origin: cangzhou

Supply Ability: 45 working days

Certificate: CE\ISO9001

Product Description

C Z Purlin Roll Forming Machine

A cee purlin or z purlin is a horizontal beam or bar to provide structural support in buildings. Our purlin roll former can produce purlins of different sizes. C Z purlin Roll Forming Machine is also called Interchangeable purlin roll forming machine or z purlin making machine. In steel construction, the term purlin typically refers to roof framing members that span parallel to the building eave and support the roof decking or sheeting. The steel of c purlins are in turn supported by rafters or walls. So pre-punched purlins are quick to install and suitable for both insulated and uninsulated roofs and walls. The thickness and height of the purlin selected depend on span length and loads.

Applications of c & z purlin:

  1. Industrial construction
  2. Hall and warehouse construction
  3. Extension construction and renovation
  4. Agricultural projects

1

The size we can do:

Hot Aale Pre-Engineered H Beams Z Beams C Purline Machine Hot Aale Pre-Engineered H Beams Z Beams C Purline Machine

Some pictures for you reference:

Metal Building Steel Frame Roll Forming Machine

The Parameters of CZ Purlin Roll Forming Machine

Manual un-coiler System

Loading capacity: 5T;

Uncoiling width: 500mm ;

Inner diameter: 450-550mm

C Z Adjustable Purlin Roll Forming Machine--decoiler

Entry Beach

Specification:Usage: Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

C Z Section Steel Purlin Machine

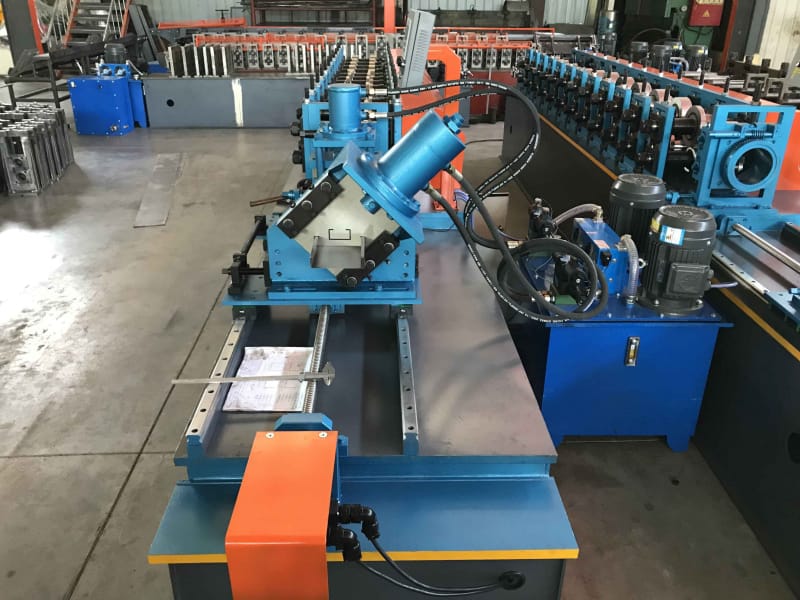

Shearing Mechanism and punching (include cutting tools, hydraulic tank, cutter machine)

1)Feature : Ensure stability, precision and cutting speed; Function : Automatic cutting controlled by PLC; Material of blades: Gcr12MoV quenched;

2)Power supply : hydraulic power;

3)Frame : Pillar style with rack & pinion system;4)Stroke switch : non-contact photoelectric switch

Hot Aale Pre-Engineered H Beams Z Beams C Purline Machine

Hot Aale Pre-Engineered H Beams Z Beams C Purline Machine

Main Roll Forming System for C Z Purlin Roll Forming Machine

1)Number of forming steps:12stations;

2)Shaft material:45# steel Outer diameter:80mm ;

3) Roller Material:Cr12MoV ;

4)Transport: chain ;

5)Forming speed:5-12m/min ;

6)Motor:15kw ;

7)Voltage:380v,50Hz,3 phase ;

8)Frame : middle plate welded ;

9)Dimensions:12000mm*1800mm*1600mm ;

10)Weight of machine: about 9ton

Hot Aale Pre-Engineered H Beams Z Beams C Purline Machine

Hydraulic Station

1)Hydraulic motor Power: 5.5kw ;

2)Hydraulic oil: 46# (include a set of hydraulic tank , a set of hydraulic oil pump,two hydraulic pipes and two sets of electromagnetism valves )

C Z Section Steel Purlin Machine

Electric Control System

1.Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime.

2.Other electric element are Delta; 3.Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.

C Z Section Steel Purlin Machine



ZTRFM has been dedicating to roll forming technologies for over 2 decades and now boasts strong experience, capabilities, innovative thinking and roll forming expertise to provide perfect roll forming solutions to our clients. At ZTRFM, we can help build a better future for you and your customer.

FAQ

1. IS AFTER SALES SERVICE AVAILABLE?

Yes, we offer 7x 24hours online support and our engineers can work oversea to help.

2. HOW CAN I GET TO YOUR FACTORY?

a. First fly to Beijing airport and then go from Beijing Nan to Cangzhou Xi (1 hour) by high speed train . Then we can pick you up at the railway station.

b. First fly to Shanghai Airport and then go from Shanghai Hongqiao to Cangzhou Xi(4.5 hours) by high speed train. Then we can pick you up at the railway station.

3. WHAT IF SOME PARTS BREAK?

We offer warranty of 12 months ,during which free spare parts are available if some parts of the machine break to be irreparable. Besides, we also offer whole life technical support which means we will still offer technical advice 1 year after your purchasing. We can discuss to help you out.

4. CAN YOU TAKE CHARGE OF TRANSPORT?

Yes, we have strong expertise in this area for years and you can trust us.



Looking for ideal Galvanized Purlin Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the CE Purlin Roll Forming Machine are quality guaranteed. We are China Origin Factory of Galvanized Purlin Roll Forming Machine. If you have any question, please feel free to contact us.
