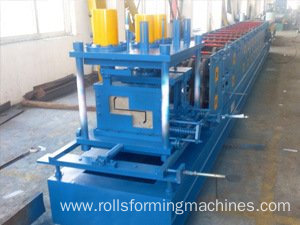

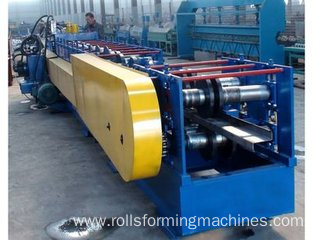

Z shaped purlin cold Roll Forming Machine Z steel purlin machine
Machine Description: Z shaped purlin cold roll forming machine Z steel purlin machine
Quantity: 1 SET
Delivery time: 45 working days after receiving deposit
Container Type: One 40GP
Z Steel Purlin Machine Process Flow:
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving

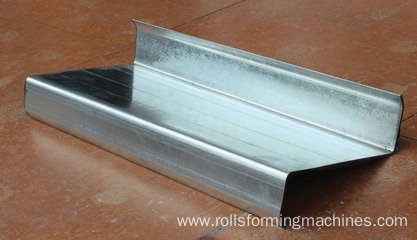

Product name: Z Shaped Making Machine
Length: Any length
Length Tolerance: ±2mm/6m
3. Working Speed: 8-15 m/min (Standard machine)
4. Control System: Mitsubishi/Siemens PLC& transducer (Custom)
5. Total Power: 6KW
6. Total Weight: About 6.2T (Up to final design)
Detailed information of Z shaped purlin cold roll forming machine
Usage: It is used to support the steel coil and uncoil it in a turntable way. Passive uncoil pulled by roll forming system
Coil feeding part
Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working
Feature : Ensure stability , precision and lifetime.
Main parameter of Z Steel Purlin Machine
1.Length of the main part: 6800*800*1200mm
2. Weight of main part: About 6.2 t
3. Voltage: 380V/50HZ3Phase (as customer`s request)
4.Roller fixer: Guide column
5. Frame: Middle plate welded: Memorial arch frame type
6. Frame thickness: 25mm
7.Drive mode: Gear or chain
8. Material of rollers: 45# steel with tempering
9. Material of shafts: 45# steel with tempering
10. Diameter of shafts: φ80mm
11. Number of rollers: 12rollers
14. Main power:11kw (Cycloidal planetary gear speed reducer)
Advanced hydraulic drive flying saw cutting, automatic punching and cutting after forming, no distorting or wasting, high level safety factor. Flying saw punching Z steel equipment is a kind of Z steel machine cut, it adapt after cut. This cut off the way do not need to change model,You can added the punch in the flying saw device at the same time to achieve the effect of flying saw punching if you need.
Blade Material: Cr12 steel with quenched treated 60-62°C
Cutting system: Full automatic
Features: punching is a part of the the flying saw cutting, is controlled by hydraulic station, mainly punches holes at Z steel , Whether puching is according to pople's need, easy to control use conveniently and long life.
Power: 3kw(double values)
oil cylinder: 2
Screen: Text screen displayer
PLC: Taida DVP14ES from Taiwan
Orgin: Advanced hydraulic system from Taiwan
1. Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also tr
ain your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
Looking for ideal Z Steel Purlin Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Z Shaped Making Machine are quality guaranteed. We are China Origin Factory of Z Steel Purlin Machines. If you have any question, please feel free to contact us.
