Steel Long span Roof Roll Forming Machine

    Unit Price: USD 19800 - 49800 / Set/Sets
    Payment Type: T/T,L/C,D/A,D/P,Western Union
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 15 Days
Basic Info

Model No.: ZT-914-610

Additional Info

Packaging: as customer requirem

Productivity: 30 sets/month

Brand: ZHONGTUO

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 30 sets/month

Certificate: CE, ISO9001

Product Description

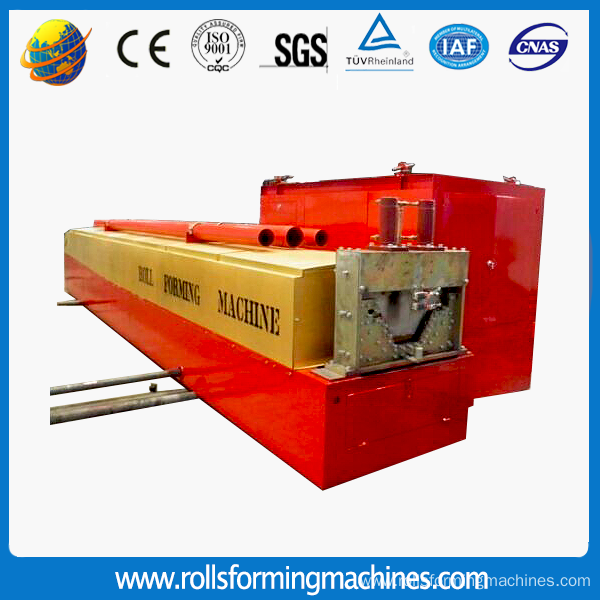

Steel Long span Roof Roll Forming Machine

Steel Long span Roof Roll Forming Machine is comprised of decoiler, forming unit, hydraulic mould cutting device, electric control system, hydraulic system and unloading rack. All parts are mounted on a mobile pedestal. So it is suitable for site working.

Steel Long span Roof is widely used in Various types of warehouses, workshops, exhibition halls, stadiums and other markets and stylistic building system.

Advantages of Steel Long span Roof Roll Forming Machine:

a. There is a brake system on our uncoiler, if the machine stops suddenly, the uncoiler can be stopped accordingly.

b. 14-steps to form, including the first step--Rubber shaft, it fixes steel sheet tightly from the beginning. Also there is one row Rubber Roller in the middle of each shaft, coordinating different thickness of steel sheets tightly when roll forming.

c. Long Span Roof Roll Forming Machine includes 20 wider rollers than other supplier, which can make the appearance of finished sheet more beautiful and stronger.

d. Long Span Roof Roll Forming Machine`s rollers and axles are connected with a pin inside and screw outside, and with reinforcing design on both sides of rollers, which can fix the rollers and axles more tighten and work for a long time without deformation.

e. Gear, Sprocket driving from superior workmanship.

One profile drawing for reference (914-610):

 Long span Roof Roll Forming Machine

Accessories :

Name : Amount

Manual De-coiler: 1

Seaming machine: 2

Run out table: 20

Leg of run out table :19

Small leg of run out tab: 48

Fastening screw for leg: 58

Side support: 10

Suspender :3

Pin of suspender: 2

Hanger :8

Clamp: 4

Bearing(208#): 4

Driving chain: 3(run)

Chain link: 3

Half section:3

Super plier: 1

Metal scissor: 1

Crank handle: 2

Main parameters of Arching Roof Panel Roll Forming Machine :

1 Mounting dimension: 8900mmX2100mmX2300mm(With single axle 4 tires)

2 Total weight: About 8 Ton

3 Control system: electric control

4 Cutting type : Mechanical Cutting

5 Seaming Power: 1.1KW+1.1KW

6 Total motor power : 15.2KW

7 Material of rollers: 45# steel, quenched HRC 58-62

8 Material of roller shafts: 45# steel, quenched HRC 55~65, hard chrome plating

9 Material of cutting blade: 12CrMoV material, Heat treatment

10 Step of rollers: 13 steps

11 Working Speed : Forming Part : 15m/min, Bending Part: 13m/min,Seaming : 16m/min

12 Max span: 4~28m

Deatiled pictures of Arching Roof Roll Forming Machine:

a.There is brake system on de-coiler, if the machine stop suddenly, the de-coiler can be stopped accordingly.

Arching Roof Panel Roll Forming Machine

b.Arching Roof Panel Roll Making Machine includes 20 more wider rollers than other supplier`s machine, which can make the appearance of finished arch more beautiful.

Arching Roof Roll Forming Machine

c.Arching Roof Panel Roll Making Machine`s rollers and shafts are connected with pin inside and screw outside, and with reinforcing design on both sides of rollers, which can fix the rollers and shafts tightly without deformation.

Arching Roof Panel Roll Making Machine

d.Gear, Sprocket driving from superior workmanship.

Arching Roof Panel Roll Forming Machine

e.Adopt car rear axle as the axle of machine, with size of 825-16 tires, can load more and has better impact resistance and damping effect.

Arching Roof Panel Roll Making Machine

f.Cutting material: Cr12 MoV, best and sharpest cutting material

Roof Panel Roll Forming Machine

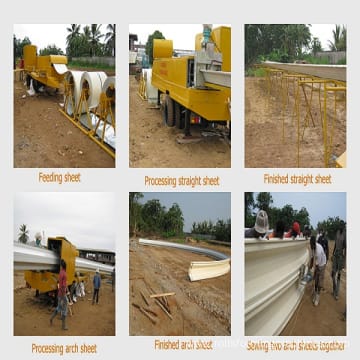

The Installation Pictures:

Roof Panel Roll Forming Machine


Looking for ideal Long Span Roof Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Steel Long Span Roof Machine are quality guaranteed. We are China Origin Factory of Long Span Roof Roll Forming Machine. If you have any question, please feel free to contact us.
