Arching Roof Panel Roll Forming Machine

    Unit Price: USD 22000 - 49800 / Set/Sets
    Payment Type: T/T,L/C,D/A,D/P,Western Union
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 15 Days
Basic Info

Model No.: ZT-600-305

Additional Info

Packaging: as customer requirem

Productivity: 30 sets/month

Brand: ZHONGTUO

Transportation: Ocean,Land,as customer requirem

Place of Origin: China

Supply Ability: 30 sets/month

Certificate: CE, ISO9001

Product Description

Arching Roof Panel Roll Forming Machine

Arching Roof Panel is widely used in Various types of warehouses, workshops, exhibition halls, stadiums and other markets and stylistic building system.

Arching Roof Panel Roll Forming Machine is comprised of decoiler, forming unit, hydraulic mould cutting device, electric control system, hydraulic system and unloading rack. All parts are mounted on a mobile pedestal. So it is suitable for site working.

One profile drawing for reference (600-305):

Arching Roof Roll Forming Machine 600-305

Main parameters of Arching Roof Panel Roll Forming Machine :

1 Mounting dimension: 8900mmX2100mmX2300mm(With single axle 4 tires)

2 Total weight: About 8 Ton

3 Control system: electric control

4 Cutting type : Mechanical Cutting

5 Seaming Power: 1.1KW+1.1KW

6 Total motor power : 15.2KW

7 Material of rollers: 45# steel, quenched HRC 58-62

8 Material of roller shafts: 45# steel, quenched HRC 55~65, hard chrome plating

9 Material of cutting blade: 12CrMoV material, Heat treatment

10 Step of rollers: 13 steps

11 Working Speed : Forming Part : 15m/min, Bending Part: 13m/min,Seaming : 16m/min

12 Max span: 4~28m

Accessories :

Name Amount

Manual De-coiler 1

Seaming machine 2

Run out table 20

Leg of run out table 19

Small leg of run out tab 48

Fastening screw for leg 58

Side support 10

Suspender 3

Pin of suspender 2

Hanger 8

Clamp 4

Bearing(208#) 4

Driving chain 3(run)

Chain link 3

Half section 3

Super plier 1

Metal scissor 1

Crank handle 2

Deatiled pictures of Arching Roof Roll Forming Machine:

a.There is brake system on de-coiler, if the machine stop suddenly, the de-coiler can be stopped accordingly.

Arching Roof Panel Roll Forming Machine

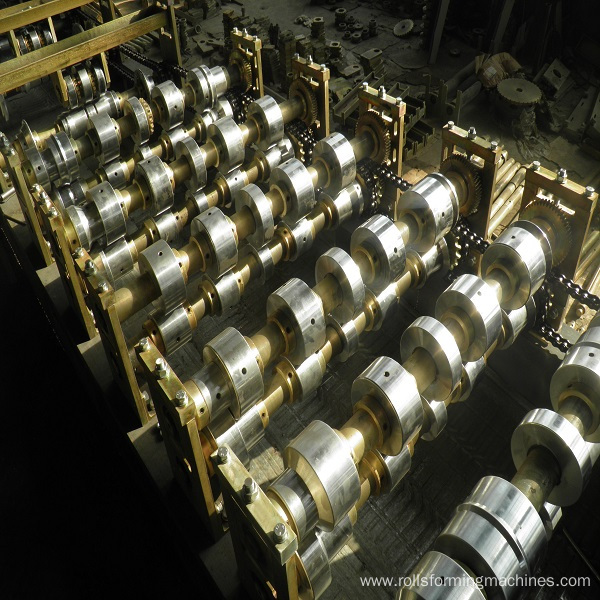

b.Arching Roof Panel Roll Making Machine includes 20 more wider rollers than other supplier`s machine, which can make the appearance of finished arch more beautiful.

Arching Roof Roll Forming Machine

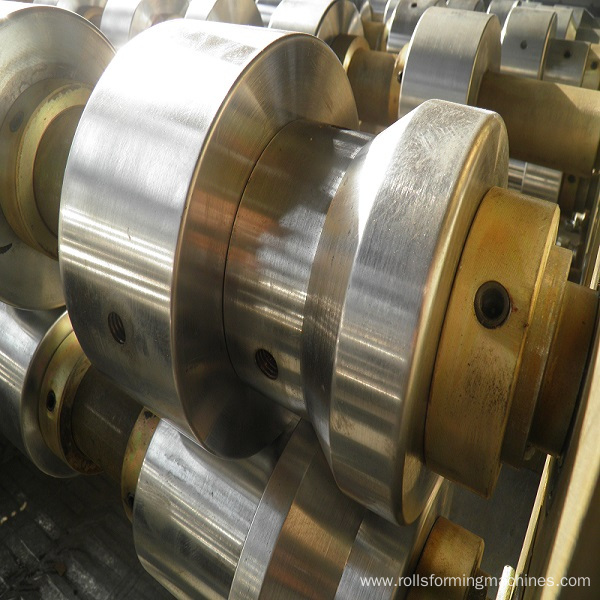

c.Arching Roof Panel Roll Making Machine`s rollers and shafts are connected with pin inside and screw outside, and with reinforcing design on both sides of rollers, which can fix the rollers and shafts tightly without deformation.

Arching Roof Panel Roll Making Machine

d.Gear, Sprocket driving from superior workmanship.

Arching Roof Panel Roll Forming Machine

e.Adopt car rear axle as the axle of machine, with size of 825-16 tires, can load more and has better impact resistance and damping effect.

Arching Roof Panel Roll Making Machine

f.Cutting material: Cr12 MoV, best and sharpest cutting material

Roof Panel Roll Forming Machine

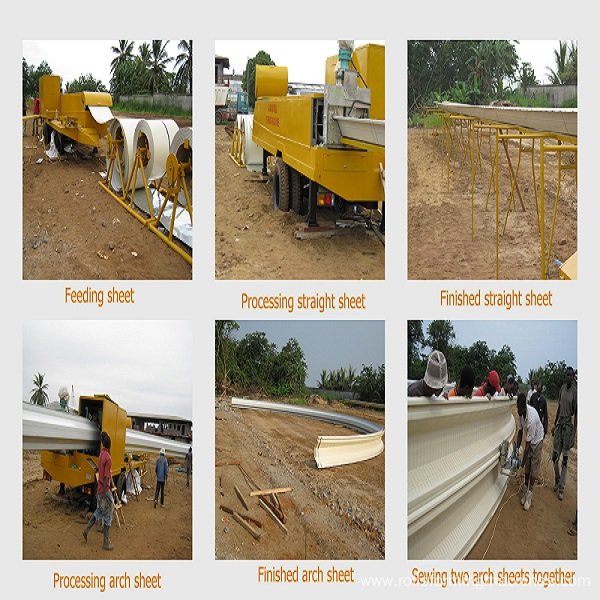

The Installation Pictures:

Roof Panel Roll Forming Machine

Roof Panel Roll Forming Machine
