Basic Info
Model No.: ZT-005
Material: Color Steel Plate
Type: Ridge Tiles
Shape: Plain
Size: 300*400mm
Color: Blue, As You Want
Customized: Customized
Weight: 7t
Place Of Origin: Botou
Roller Diameter: 50mm
Roller: 20
Main Frame: 300mm
Machine Size: 7*1.5*1.2m
Certificate: CE&ISO
Total Power: 7kw
Raw Material Size: Color Steel Sheet
Additional Info
Packaging: naked
Productivity: 20sets/month
Brand: Zhongtuo
Transportation: Ocean,Land
Place of Origin: China
Supply Ability: 20sets/month
Certificate: CE&ISO
Product Description

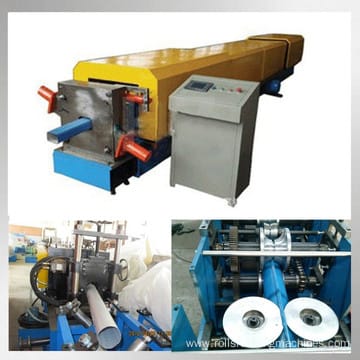

Steel gutter downpipe Roll Forming Machine
Specification
Description
Our downspout roll forming machine mainly consists of uncoiler, roll forming system, cutting equipment, protective guard, hydraulic system, control system and out table. It can make curve for down pipe to meet the requirement of practical engineering projects.
Machine components
Passive uncoiler
Guiding unit
Roll forming machine
Cutting unit
Hydraulic station
PLC control cabinet
Supporter table
Security cover

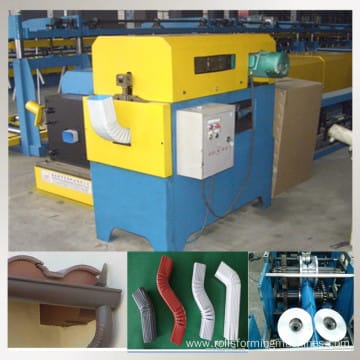

Elbow machine
Technical process
Passive uncoil- Feeding-Roll forming-Cut to length-Output table-Elbow with pipe
Technical parameters
| Items | Specifications |
| Material Spec | Galvanized steel sheet, color sheet |
| Thickness of Coil Sheet | 0.3 –0.8mm |
| Main Motor Power | 5.5kw |
| Forming Speed | 10-15m/min |
| Hydraulic Station Power | 3kw |
| Quantity of Stands | 18 |
| Hydraulic Pressure | 10~12Mpa |
| Controlling System | Panasonic PLC |
| Index Error of Length | 10m±2mm |
| Total Weight | 7T |
| Voltage | 380V 3 phase 50Hz |
Product Categories : Gutter & Downspount
