W guardrail profile roll forming machine or expressway guardrail forming machine is used for producing three waves shaped guardrail. It possesses good features of high corrosion resistance, high aging resistance, elegant appearance and easy installation.
W guardrail profile roll forming machine is mainly constituted of uncoiler, feed leading table, main forming machine, punching system, cutting device, hydraulic station and computer control system.
Detailed information of Three Wave Highway Guardrail Machine:
Usage: It is used to support the steel coil and uncoil it in a turntable way.Passive uncoil pulled by roll forming System.
2. Coil width:500mm
3. Loading ability:5000kg
4. Hydraulic power:3kw
Feeding and leveling part
1. Roller material after quenching
2. 9 rows station for leveling: 4 5
3. The diameter of raw material 95mm ,45 steel after quenching
4. Feed a side wheel GCR15 raw materials, after quenching
Punching and shearing part
1.Hydraulic punching, raw material after quenching Cr12,Which can be welded, which need to bolt
2.Shearing blade material:Cr12 after quenching.
3. Shear error: +/- 2mm
Feeding coil part
1. Feeding coil table:
2. Main power:3kw
Roll forming machine
Advantage: to make sure long time using, working steady and high speed.
1. Main-length: about 20.5*1.2*1.5m
2. Machine weight: 15.5 Ton
3. Voltage: customer choice
4. Fix wheel types: medium plate
5. Frame: 400# steel
6. Transmission: Chain
7. Shaft material: 45 steel after adjusting treatment, the diameter of 100mm, precision machining
8.Roller material: GCR15, after quenching, and after chrome wheels.High strength bolt
9. Rolling station:20 stations
2.Hydraulic oil type: 46#
3.Component: the system includes a set of one or two sets of hydraulic oil tank, hydraulic pump, hydraulic pipe line four, two sets of solenoid valve.

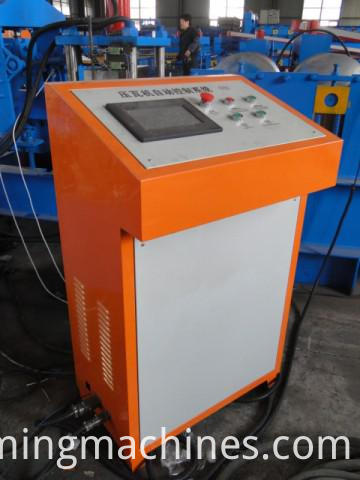

1.Panasonic 1.5.7 inch touch screen is Japan's Panasonic brand, to ensure high speed and stability, accuracy and service life.
2.Panasonic PLC, Panasonic inverter
3. automatic fixed length
4. automatic counting
Automatic stop shear length control. Equipped with 5 movable switch, fuse, radiator, transformer and convenient operation and safety of leakage protector.
