Steel Road Crash Barrier Machine

    Unit Price: USD 14500 - 49800 / Set/Sets
    Payment Type: T/T,L/C,D/A,D/P
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 25 Days
Basic Info

Model No.: ZT-005-53

Additional Info

Packaging: As the Customer's Requirement

Productivity: 10-15m/min

Brand: ZHONGTUO

Transportation: Ocean,Land,as customer requirem

Place of Origin: China

Supply Ability: 30 sets/month

Certificate: ET, ISO9001

Product Description

Steel Road Crash Barrier Machine

Steel Road Crash Barrier Machine, also known as crash barrier forming machine, is commonly used for producing crash barrier and W shaped guardrail. In order to improve road safety, the crash barrier is designed to prevent vehicles from leaving the roadway.

Steel Road Crash Barrier Machine is mainly composed of uncoiler, feed leading table, main forming machine, punching system, cutting device, hydraulic station and computer control system.

Highway Guardrail Forming Machine

Working process:

Uncoiler--- Punching---Roll forming---Cutting---Packing table.

Steel Road Crash Barrier Machine

Detailed information of Steel Road Crash Barrier Machine:

Hydraulic decoiler

Usage: It is used to support the steel coil and uncoil it in a turntable way.Passive uncoil pulled by roll forming System.

1.ID:500-550mm

2. Loading ability:5000kg

3. Hydraulic power:3kw

4.Motor:3kw

Steel Road Crash Barrier Machine

Feeding and leveling part for Steel Road Crash Barrier Machine

1. Roller material after quenching

2. 9 rows station for leveling: 4 up 5 down

3. The diameter of raw material 95mm ,45 steel after quenching

4. Feed a side wheel GCR15 raw materials, after quenching

Steel Road Crash Barrier Machine

Punching and shearing part

1.Hydraulic punching, raw material after quenching Cr12,Which can be welded, which need to bolt

2.Shearing blade material:Cr12 after quenching.

3. Shear error: +/- 2mm

Steel Road Crash Barrier Machine

Roll Forming Machine

Advantage: to make sure long time using, working steady and high speed.

1. Main-length: about 20.5*1.2*1.5m

2. Machine weight: 15.5 Ton

3. Voltage: customer choice

4. Fix wheel types: medium plate

5. Frame: 400# steel

6 Shaft material: 45 steel after adjusting treatment, the diameter of 100mm, precision machining

7.Roller material: GCR15, after quenching, and after chrome wheels.High strength bolt

8. Rolling station:20 stations

Steel Road Crash Barrier Machine

Shearing system

Usage: controlled by PLC, driven by hydraulic power to shear accurate and accurately.

Shearing blade material:Cr12 after quenching.

Shear system: automatic hydraulic shear system, advanced, no waste edge, high security.

Shear error: + 2mm

We use PLC and encoder. This type is higher than the photoelectric measurement.

Steel Road Crash Barrier Machine

Hydraulic system

1.Power: 18.5kw

2.Hydraulic oil type: 46#

3.Component: the system includes a set of one or two sets of hydraulic oil tank, hydraulic pump, hydraulic pipe line four, two sets of solenoid valve.

Highway Guardrail Forming Machine

Electrical system

1.Panasonic 1.5.7 inch touch screen is Japan's Panasonic brand, to ensure high speed and stability, accuracy and service life.

2.Panasonic PLC, Panasonic inverter

3. automatic fixed length

4. automatic counting

Automatic stop shear length control. Equipped with 5 movable switch, fuse, radiator, transformer and convenient operation and safety of leakage protector.

Two Wave Highway Guardrail Machine

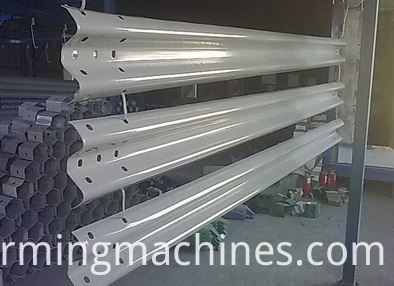

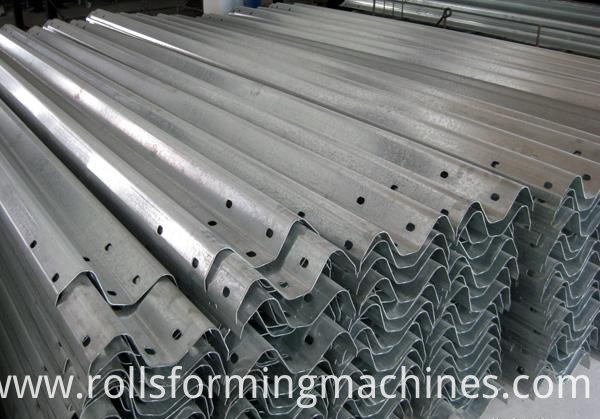

Some pictures for Steel Road Crash Barrier Machine:
Steel Road Crash Barrier Machine

Steel Road Crash Barrier Machine

Looking for ideal Crash Barrier Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Road Barrier Machine are quality guaranteed. We are China Origin Factory of Steel Road Barrier Machine. If you have any question, please feel free to contact us.
