Basic Info
Model No.: ZT-004-088
Additional Info
Packaging: nude package
Productivity: 25 set per month
Brand: zhongtuo
Transportation: Ocean,Land
Place of Origin: cangzhou
Supply Ability: 30 sets per month
Certificate: CE ISO9001
Product Description
Glazed Steel Tile Roll Forming Machine/High Rib Roofing Panel Roll Forming Machine/Roof Panel Machine
Brief Introduction:
Glazed Steel Tile Roll Forming Machine is also called High Rib Roofing Panel Roll Forming Machine or Roof Panel Machine.It is widely used in factories, residential, hotels, villas and other industrial
and civil construction.Compared with other type roof panel machine, its appearance is much more beautiful.

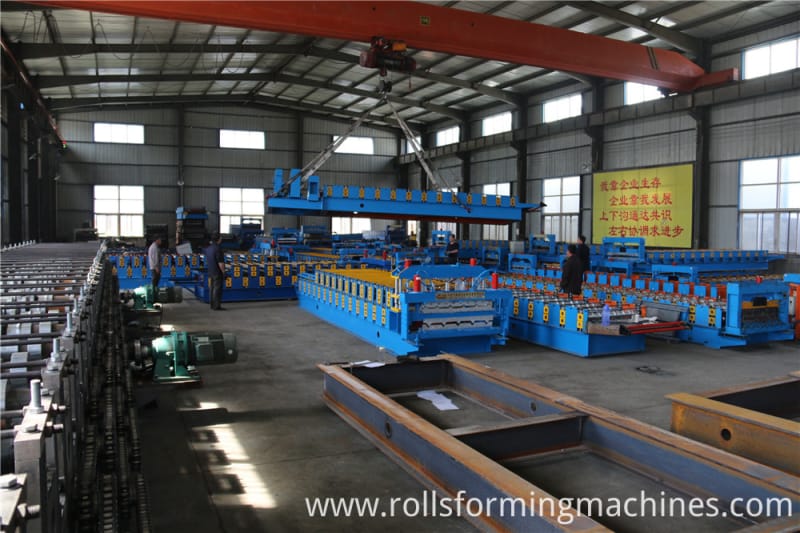

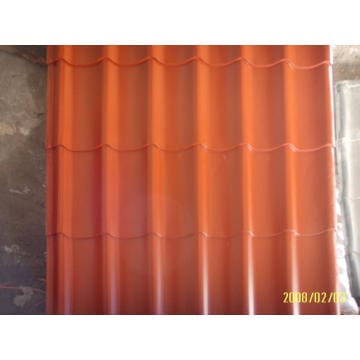

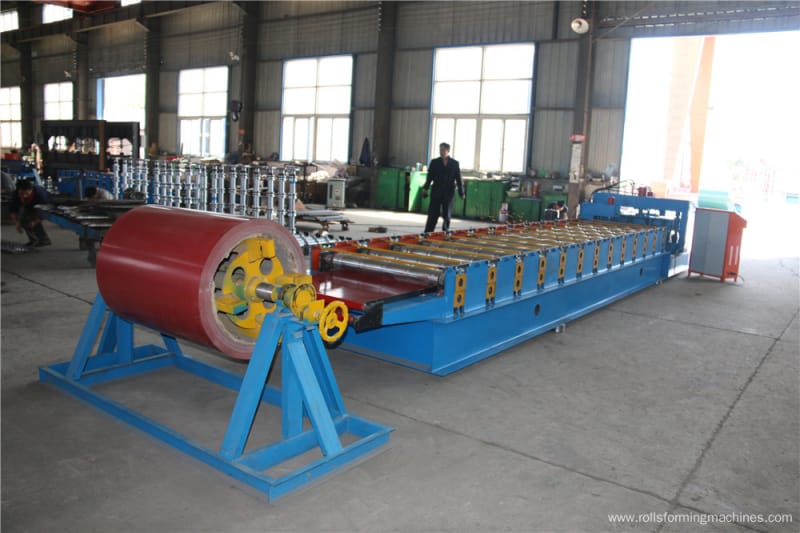

Photo of Glazed Steel Tile Roll Forming Machine for your reference:
Glazed Steel Tile Roll Forming Machine Working flow:
Uncoiler->feeding materials to machine->roll forming ->step formed->auto cutting ->product receiving table
Components of Glazed Steel Tile Roll Forming Machine
Manual Decoiler-----1 set
Main forming machine---1 set
PLC control system---1 set
Hydraulic oil pump ---1 set
Post cut---1 set
Electric motor---1 set
Product receiving table ---1 set
Main specification of Glazed Steel Tile Roll Forming Machine
Length of the main part: About 8500 х 1650 х 1500 mm
Weight of main partAbout 4.5 t
Voltage380 V/50 HZ 3 Phase (as customer`s request)
Roller fixer: Middle plate welded
Frame: 350 H steel welded
Frame thickness: 16 mm
Drive mode:chain
Material of rollers:45# steel, surface hard chromium plating
Material of shafts:45 # steel
Diameter of shafts: φ80 mm
Number of rollers: up layer:13 rollers
power: 5.5kw

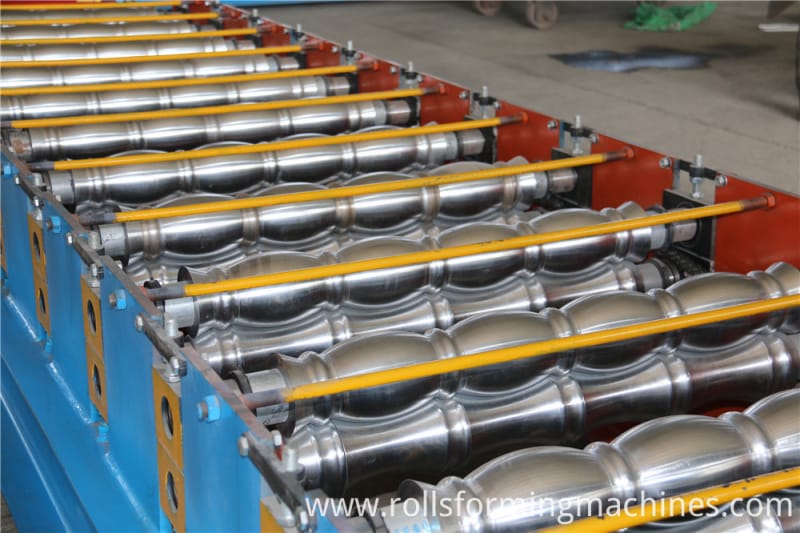

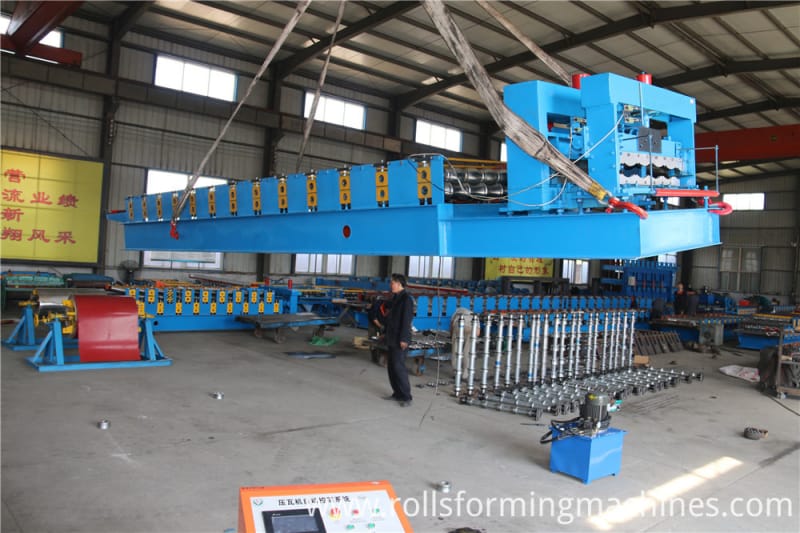

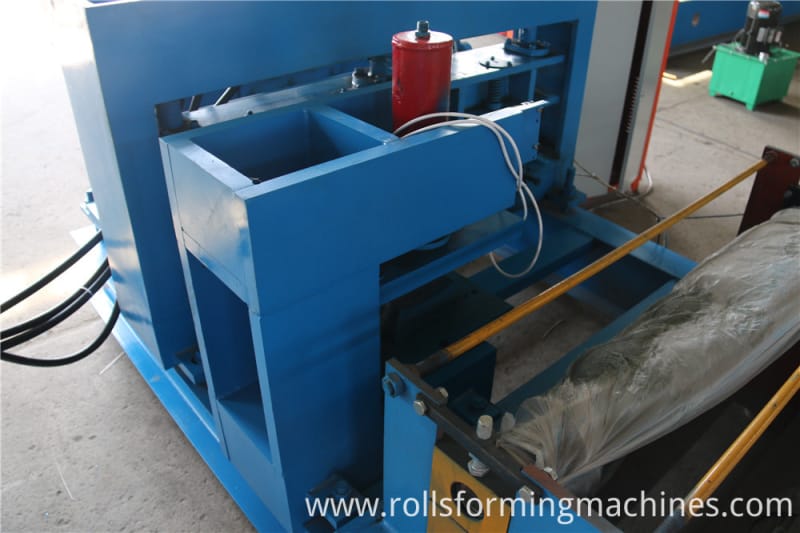

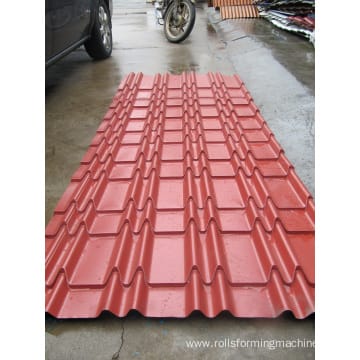

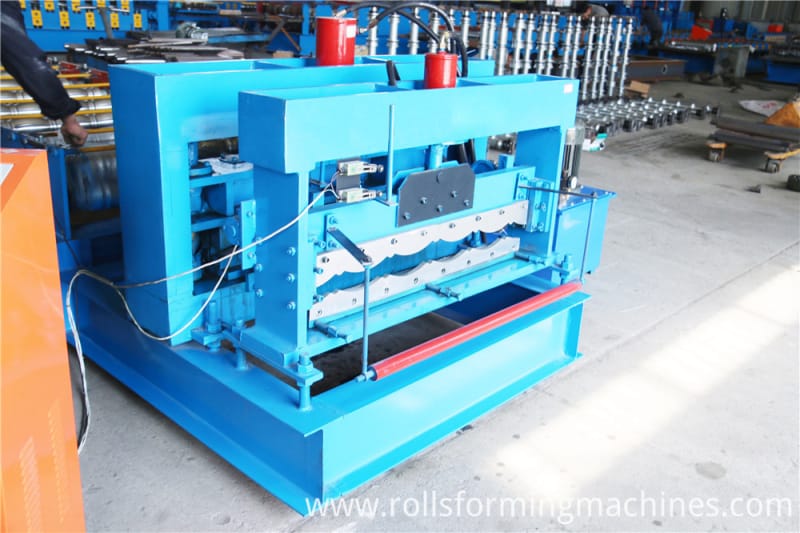

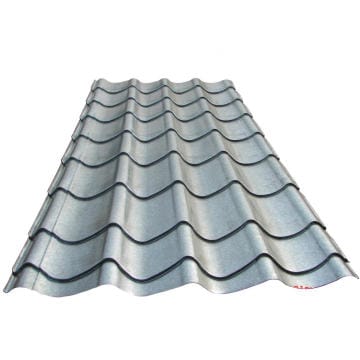

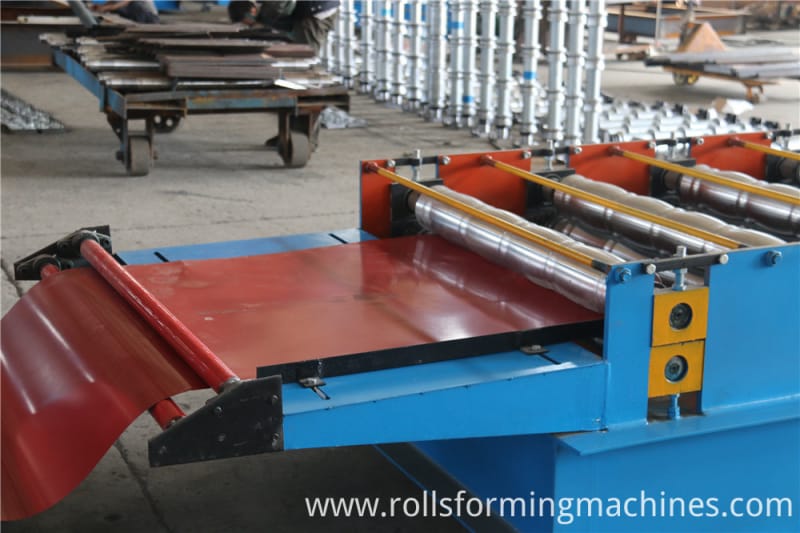

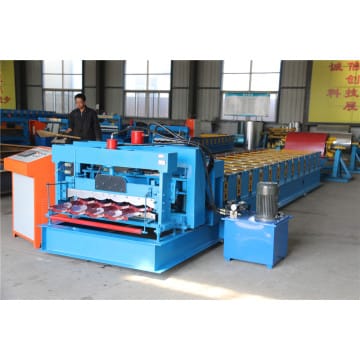

Detailed pictures about Glazed Steel Tile Roll Forming Machine:
