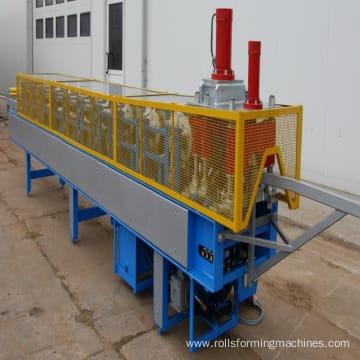

Rounded Ridge Cap Machine|Advanced Cap Ridge Machine

    Unit Price: USD 10500 - 13000 / Set/Sets
    Payment Type: L/C,T/T,D/P,Western Union,D/A
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
Basic Info

Model No.: ZT-004-005

Material: Color Steel Plate

Type: Plain Roof Tiles

Shape: Plain

Size: 1000*1000mm, 1200*600mm, 800*800mm, 600*600mm, 500*500mm, 400*400mm, 300*400mm

Customized: Customized

Additional Info

Packaging: nude package

Productivity: 25m/min

Brand: zhongtuo

Transportation: Ocean,Land

Place of Origin: cangzhou

Supply Ability: 30sets/month

Certificate: ce,iso9001

Product Description

Rounded Ridge Cap Machine|Advanced Cap Ridge Machine

This Roll Forming Machine is the special high speed roll forming machine for steel sheet cold-form industries. It can continuous form the steel sheet according to customer`s requirement, automatically cut to length. This equipment has many advantages, just like high forming speed,low noise, stable transmission, easy operation, good look and so on.


Uncoiler System

Usage: It is used to support the steel coil and uncoil it in a turnable way.

Passive uncoil pulled by roll forming system

Loading capacity: 5T

Uncoiling width: 1000mm

Inner diameter: 450-550mm

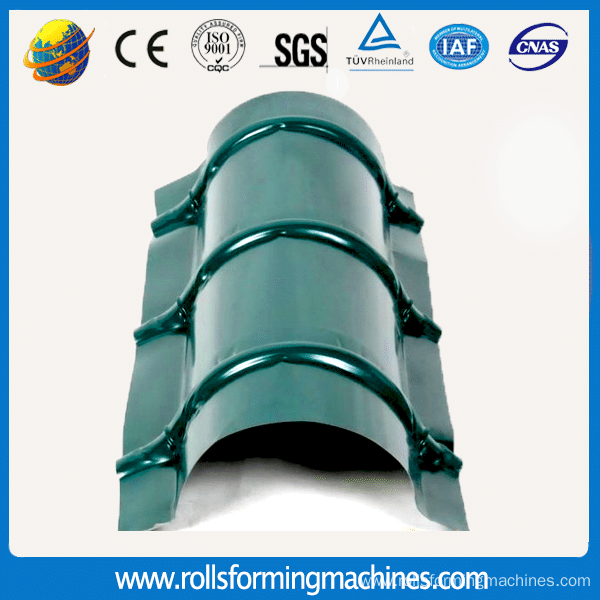

Rounded Ridge Cap Machine

Entry Beach

Usage: Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity.It is set in the beginning of the main machine with left-right guiding. It can help the operator to make the sheet in the right direction, left side and right side can be adjusted separately by manual screw structure.


Main Roll Forming System

Length of the main part: about 6200*1100*1500

Weight of main part: 3.2 tons

Voltage: 380V/50HZ 3Phase

Roller fixer: middle plate

Frame: 350 H steel welded

Drive mode: chain

Material of rollers:45# steel, surface hard chromium plating.

Material of shafts: 45# steel

Diameter of shafts: φ60mm

Number of rollers: 11 rollers

Main power: 3kw

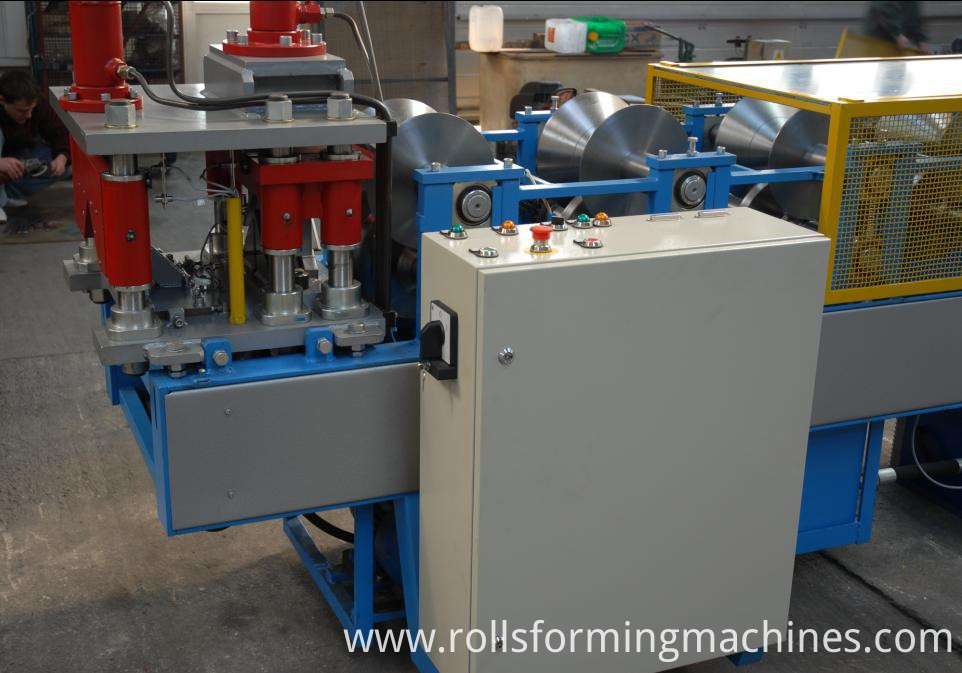

Rounded Ridge Cap Machine

Step-formed mechanism

Feature: it is used to make the step , the glazed tile's final formed

Material of mold: Cr12 quenched


Shearing Mechanism

Feature: Ensure stability, precision and cutting speed

Function: Automatic cutting controlled by PLC

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12 quenched

Power supply: hydraulic power

Components: It contains one set of blade, one hydraulic tank and one cutter machine.


Hydraulic Station

It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.

Power: 5.5kw

Hydraulic oil: 46#

Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, and four hydraulic pipes. and two sets of electromagnetism valves.

ridge cap06

Electric Control System

Feature:

1.Adopted PLC , frequency converter , Delta touch screen from Taiwan to ensure high speed with stability, precision and lifetime.

2.Other electric element are Panasonic

Rounded Ridge Cap Machine
Counter

One counter gauges length, pulses, and decides length.

Omron encoder for length measurement

Products receiving tables

It adopts welded steel and supported roller to transmit the products.

Looking for ideal Rounded Ridge Cap Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Advanced Cap Ridge Machine are quality guaranteed. We are China Origin Factory of Ridge Cap Machine Buy. If you have any question, please feel free to contact us.
