Galvanized layer ring lock scaffolding roll forming machine

    Payment Type: L/C,T/T,D/P
    Incoterm: FOB,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days
Basic Info

Model No.: zt-010

Length Of The Main Part: 9500-1650-1500mm

Weight Of Main Part: 6.8 T

Voltage: As Customer Required

Roller Fixer: Middle Plate Welded

Frame: Guide Pillar And The Thickness Is 50mm

Frame Thickness: 25mm

Drive Mode: Gear

Material Of Rollers: 45# Steel,surface Hard Chromium Plating

Material Of Shafts: 45# Steel

Additional Info

Productivity: 8-22m/min

Brand: ZhongTuo

Transportation: Ocean

Place of Origin: China

Supply Ability: 30 sets/month

Certificate: ISO9001, CE

Port: TIANJIN

Product Description

Galvanized layer ring lock scaffolding Roll Forming Machine

Scaffolding, also called scaffold or staging, is a temporary structure used to support a work crew and materials to aid in the construction, maintenance and repair of buildings, bridges and all other man made structures. Scaffolding is also used in adapted forms for formwork and shoring, grandstand seating, concert stages, access/viewing towers, exhibition stands, ski ramps, half pipes and art projects (quotoed from wiki).

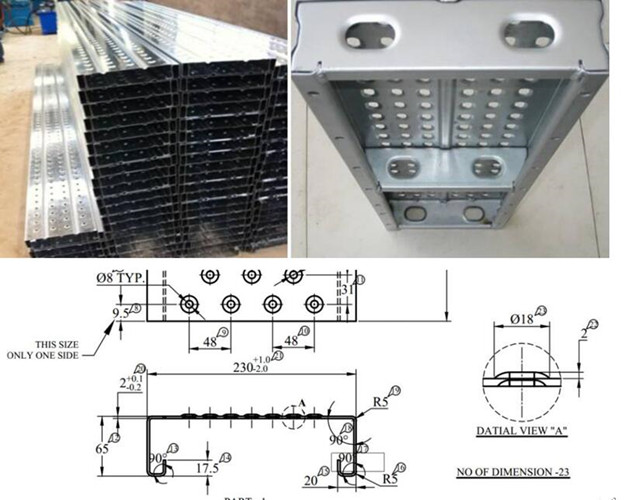

Now the metal ladder scaffolding for concrete slab and masonry construction, here are some drawing profile and finsihed product pictures for your reference:

1


For the scaffolding roll forming machine design, we use the following parameters:

2


Scaffolding roll forming machine parameters:

Machine working process:

Decoilerà levelingà servo coil feedingà punching systemà roll forming machineà sizing and shearing

Systemà runout table

3

Main roll forming machine

1. Roller station: 18
2. Machine frame: Independ stand
3. Support the Max coil width: 380mm

4. Machine frame material: HT200 tempering
5. Lelveing roller: 70mm, material is 40Cr quencing.

6. Transimission: gearbox

7. Main machine power: 15kw ZQ500 reduction box and velocity ration is 31.5

8. Shaft diameter: 80mm, made by 40Cr quencing at 56 to 58 degree.

9. Roller material: GCr12, quenching to the whole and make the hardness to HRC56-62º

10. Motor explosive-proof grade: ExdIICT4

11. Motor protection grade: IP54

4



FAQ:

1.Does one Galvanized layer ring lock scaffolding roll forming machine can only produce one style product?

Not exactly. Our machines can produce more kinds of by change their rollers.

2. Do you have after sales support?
Yes, we are happy to give advice and we also send skilled technicians to your place to support the technical guidance. We will let your machines running that in order to keep your business running.

3. What can you do if the machine broken?

Our machine's warranty period is 12months. And if the broken parts can't be repaired, we will send the new one to replace the broken parts. And the only thing you need to do is paying the transport costs.

If beyond the warranty period, we can through the negotiation to solve the problems, and we will supply the technical support for the whole life of the machine.
