Zhongtuo Roll Forming Machinery Co., ltd

Steel Deck Roll Fomring Machine with high quality
Steel Deck Roll Fomring Machine with high quality
Steel Deck Roll Fomring Machine with high quality
Steel Deck Roll Fomring Machine with high quality
Steel Deck Roll Fomring Machine with high quality

Steel Deck Roll Fomring Machine with high quality

Unit Price: USD 24500 - 38000 / Set/Sets
Payment Type: L/C,T/T,D/P,Western Union
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Contact Now

Basic Info

    Model No.: ZT-004-032

Additional Info

    Packaging: nude packing

    Productivity: 25m/min

    Brand: zhongtuo

    Transportation: Ocean,Land,Air

    Place of Origin: cangzhou

    Supply Ability: 30sets/month

    Certificate: ce,iso9001

Product Description

Steel Deck Roll Fomring Machine,Steel Floor Decking Machine

Product Description

To furnish the diverse requirements of our clients in the best possible manner we are involved in a wide range of steel deck Roll Forming Machine.These are widely used for manufacturing tiles of various deigns which are used in various buildings, homes and many more. These machines have high tensile strength and rigid construction.Offered products are available in various technical specifications as per the clients requirements.

Cost effective
Fine quality
Completely tested

Component of Steel Floor Decking Machine

Equipment and Qty.



Main roll forming machine

1 set

PLC control station

1 set

Hydraulic station

1 set

Post cut

1 set

Electric motor

1 set

Runout table

1 set

Drawings of floor deck



Specification of steel deck roll forming machine

Processing material:galvanized plate

Material thickness: 0.6- 1.2 mm

Material hardness: 195 mpa---350 mpa

Formed width: 960 mm

Forming speed:12 m/min

Working Flow of steel deck roll forming machine

steel deck roll forming machine

Parameters of Steel Floor Decking Machine

Uncoiler System

floor deck machine 01

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Loading capacity:5 T

Uncoiling width:1200 mm

Inner diameter: 450-550 mm.

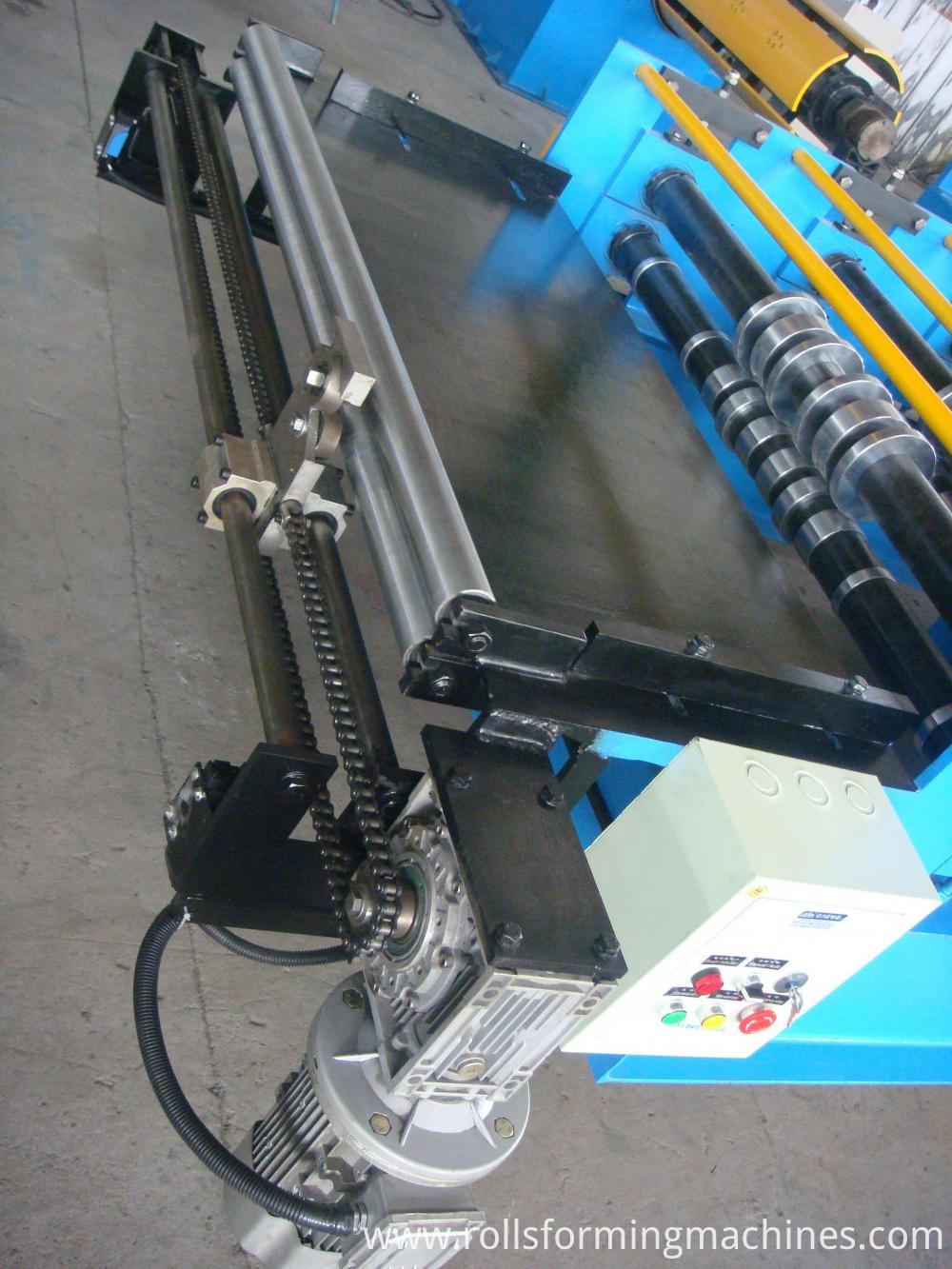

Entry Beach

floor deck roll forming machine

Usage: Put the raw material (steel plate) through the beach

to manufacture and process,it can guarantee that the

products are neat,parallel and everything is uniformity.

Please refer to the equipment regulation

to know the function of locate angle iron.

Main Roll Forming System


floor deck roll forming machine

floor deck roll forming machine 02

Size of the main part: about

12500 х 1850 х 1500

Weight of main part:11.5 tons

Voltage: 380 V/50 HZ 3 Phase or as your required

Roller fixer : middle plate

Frame : 400 mm H beam steel welded

Drive mode: case of differential

Material of rollers: 45# steel, surface hard chromium plating.

Material of shafts: 45# steel

Diameter of shafts: φ 90 mm

Number of rollers : 24 rollers

Main power:18.5 kw

Shearing Mechanism



Feature : Ensure stability, precision and cutting speed

Function : Automatic cutting controlled by P LC

It adopts the hydraulic drive and automatic location to decide

the dimension and cut the target products.

Material of blades: Cr 12 quenched

Power supply : hydraulic power

Components: It contains one set of blade, one hydraulic tank and one cutter machine.

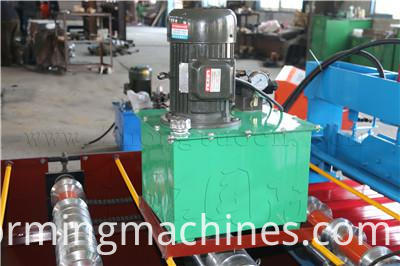

Hydraulic Station

It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank,

the pump drives the cutter machine to begin the cutting job

Power: 5.5 kw

Hydraulic oil: 46#

Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump,

2 hydraulic pipes. And 1sets of electromagnetism valves.

Electric Control System


1.Adopted PLC, frequency converter, Delta from Taiwan to ensure

high speed with stability, precision and lifetime.

If you need, we can change it other brand or little computer

type for touching screen.


One counter gauges length, pulses, and decides length.

Omron encoder for length measurement.

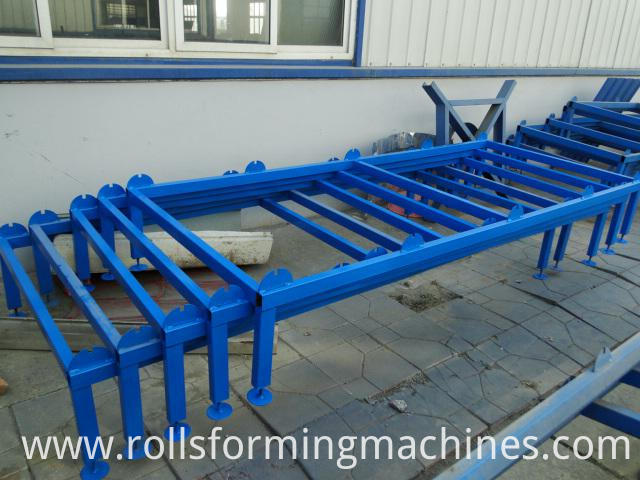

Products receiving tables

1. It adopts welded steel and supported roller to transmit the products.

2. 3m/set with 2sets

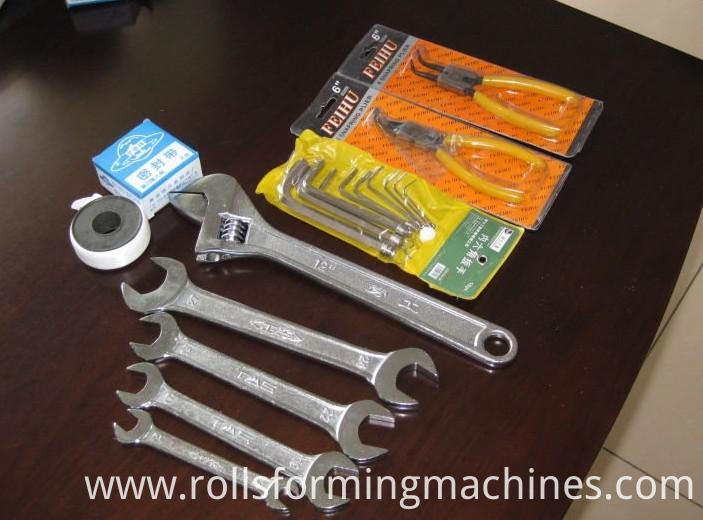

1.Easy damaged parts: conk 2 pcs, fuse-link 4 pcs

2. Rubber mat 1 pcs;

3.Bolt spanner 1 pcs

Payment terms

Payment: 30% T/T in advance and balance 70%

after inspection confirmation before shipment.

Delivery:within 45 working days after receipt of deposit.


1. Two years guarantee, and we will provide the technical support for the whole life.

2. Training: the buyer should charge of visa, return ticket, food and accommodation

overseas and USD50/person/day for salary, one technician needed.

4. Training time: one week (contains the time of installation and adjustment)


Q: Are you manufacturer?
A: Yes, we are manufacturer and trading company.

Q: What kind of payment term you can do?
A: We are flexible about payment terms, please contact us for details.

Q: What info you need before you make the proposal for a roll forming machine?
A: The profile drawings, material informations, your special requirements.

Q: What I should do if I just start to know roll forming machinery?
A: Contact us immediately, we provide free consultant pre-sales service.

Q: How to visit our company:
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3. Fly to Guangzhou aiport: By air From Guangzhou to Beijing airtpot; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

Looking for ideal Steel Deck Roll Fomring Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Steel Floor Decking Machine are quality guaranteed. We are China Origin Factory of Swallow Decking Forming Machine. If you have any question, please feel free to contact us.
