Metal Floor Decking Roll Former Machine

    Unit Price: USD 19000 - 39000 / Set/Sets
    Payment Type: L/C,T/T,D/P,Western Union,D/A
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days
Basic Info

Model No.: ZT-004-020

Additional Info

Packaging: nude packing

Productivity: 30 sets per month

Brand: zhongtuo

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 30 sets per month

Certificate: CE ISO9001

Product Description


Metal Floor Decking Roll Former

Product Description

Metal Floor Decking Roll Former Flow:

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving


Suitable Material Type:GI/PPGI

Thickness:0.75-1.25mm

Length Tolerance:±2mm/6m

Working Speed:8-12 m/min Standard machine

Total Power:22KW

Total Weight: About 14T Up to final design


Pictures gallery

floor decking drawing profilefloor decking machine

Metal Decking Roll Former 01Metal Decking Floor Roll Former 02

Un-coiler System of Metal Floor Decking Roll Former

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Passive uncoil pulled by roll forming system

Decoiler

Coil feeding part of Metal Floor Decking Roll Former

Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the prod

ucts are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of lo

cate angle iron.


Forming device of Metal Floor Decking Roll Former

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain

transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when

it is working

Feature : Ensure stability , precision and lifetime.


main machine


Length of the main part:14200*1300*1400mm

Weight of main part:About 14 t

Voltage:380V/50HZ3Phase (as customer`s request)

Roller fixer:Guide column

feeding width:1250mm

Drive mode:chain

Material of rollers:45# steel with tempering

Material of shafts:45# steel with tempering

cutting:hydralic cutting

Number of rollers:30 rollers

Main power:15kw (Cycloidal planetary gear speed reducer)


Cutting device of Metal Floor Decking Roll Former

Advanced hydraulic drive with track cutting, automatic punching and cutting after forming, no distorting or wasting, high level safety

factor.

Metal Decking Roll Former 03



Metal Decking Roll Former 04



Metal Decking Roll Former 05



About why choose us

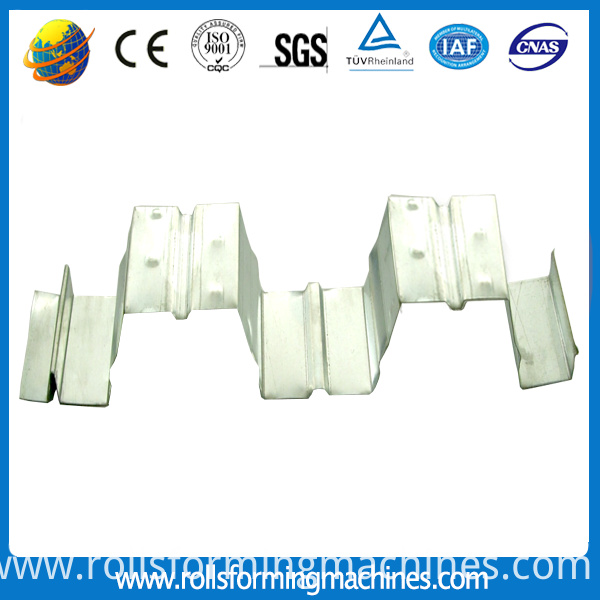

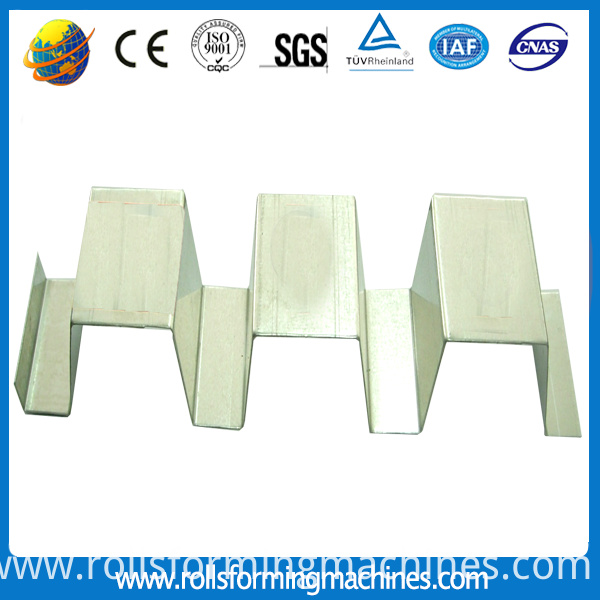

We can manufacture as per customer provided drawings or real objects of sectional materials, customization is welcome. The following are some floor decking panel profiles as reference.

Keeping in mind the diverse requirement of our clients we are involved in a wide range of Corrugated Roof Wall Roll Forming Machine. These are quality tested by highly skilled quality controllers to render maximum client satisfaction. These are used for manufacturing corrugated roof walls and are highly acclaimed among our clients due to their hassle free performance. Moreover, we offer our products at economical prices.



Looking for ideal Metal Floor Decking Roll Former Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Metal Decking Floor Roll Former are quality guaranteed. We are China Origin Factory of Metal Decking Roll Former. If you have any question, please feel free to contact us.
