Superb Wall Angle Steel Frame Making Machine

    Payment Type: L/C,T/T,D/P,Western Union
    Incoterm: FOB,CFR,CIF,EXW,FCA
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
Basic Info

Model No.: ZT-005-239

Type: Equal

Standard: GB, ASTM, DIN, BS

Speed: 15-50m/min

Main Power: 3kw

Number Of Rollers: 8 Rollers

Diameter Of Shafts: Φ40mm

Material Of Shafts: 45# Steel With Tempering

Material Of Rollers: GCr12MoV

Drive Mode: Gear

Frame Thickness: 25mm

Additional Info

Packaging: as customer's need

Productivity: 15-50m/min

Brand: zhongtuo

Transportation: Ocean,Land,Air,as customer requirem

Place of Origin: Cangzhou

Supply Ability: 50 sets/month

Certificate: CE, ISO, SGS, IAF,CNAS

Port: TIANJIN,QINGDAO,SHANGHAI

Product Description

Wall Angle Steel Frame Making Machine

Brief Introduction

Wall Angle Iron Making Machine is one of the main cold roll forming machines. We are a professional manufacturer of V shape machine and have rich experience. The whole production line is controlled by computer. The mill can be designed for different thickness , different material and L shape profiles.

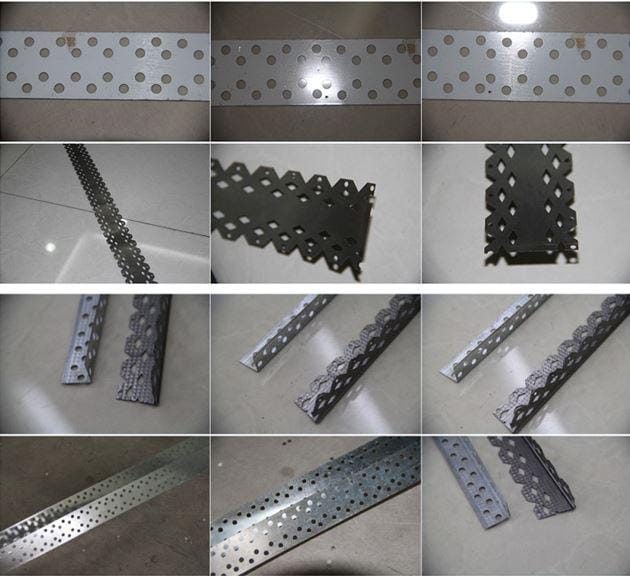

Wall Angle Iron Making Machine, Punching Flower Type Wall Angle Rolling Machine

Wall Angle Iron Making Machine, Punching Flower Type Wall Angle Rolling Machine

Main elements of Wall Angle Iron Making Machine

1.Decoiler

2.Wall Angle Iron Making Machine main Roll Forming Machine

3.punching maching(as customer's need)

4.Cutting machine (normal cutting and flying track cutting saw)(as customer`s need choose )

5.PLC control

6. Wall Angle Iron Making Machine Counter 1 set

7.hydraulic station

8.receiving table

Process flow

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving

Decoiler

  • Usage: It is used to support the steel coil and uncoil it in a turntable way.
  • Passive uncoil pulled by roll forming system
  • Loading capacity: 1.5T
  • Uncoiling width: 300mm
  • Inner diameter: 450-550mm
Wall Angle Iron Making Machine, Punching Flower Type Wall Angle Rolling Machine

Entry leveling

This part will level coil to make sure it is neat clean and straight.

Wall Angle Iron Making Machine, Punching Flower Type Wall Angle Rolling Machine

Roll forming machine

  1. Size: 2900х800х1400mm
  2. Weight : 3 tons
  3. Voltage:380V/50HZ3Phase(as customer`s request)
  4. Roller fixer : Guide column
  5. Frame : middle plate welded Memorial arch frame type
  6. Frame thickness:25mm
  7. Drive mode: gear
  8. Material of rollers: GCr12MoV
  9. Material of shafts: 45# steel with tempering
  10. Diameter of shafts: φ40mm
  11. Number of rollers : 8 rollers
  12. Main power: 3kw
  13. Cycloidal planetary gear speed reducer)
  14. Speed: 15-50m/min

Wall Angle Iron Making Machine, Punching Flower Type Wall Angle Rolling Machine

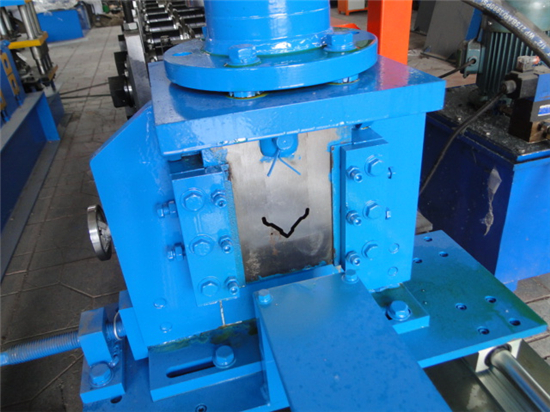

Shearing system

  1. Material of blades: Gcr12MoV quenched
  2. Power supply : hydraulic power
  3. Frame : Pillar style with rack & pinion system
  4. Stroke switch : non-contact photoelectric switch
  5. Components: It contains one set of cutting tools, one hydraulic tank and one cutter machine.

Wall Angle Iron Making Machine, Punching Flower Type Wall Angle Rolling Machine

PLC station

  1. Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime.

  2. Other electric element are Delta

  3. Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.

ZTRFM has been dedicating to roll forming technologies for over 2 decades and now boasts strong experience, capabilities, innovative thinking and roll forming expertise to provide perfect roll forming solutions to our clients. At ZTRFM, we can help build a better future for you and your customer.

FAQ

1. IS AFTER SALES SERVICE AVAILABLE?

Yes, we offer 7x 24hours online support and our engineers can work oversea to help.

2. HOW CAN I GET TO YOUR FACTORY?

a. First fly to Beijing airport and then go from Beijing Nan to Cangzhou Xi (1 hour) by high speed train . Then we can pick you up at the railway station.

b. First fly to Shanghai Airport and then go from Shanghai Hongqiao to Cangzhou Xi(4.5 hours) by high speed train. Then we can pick you up at the railway station.

3. WHAT IF SOME PARTS BREAK?

We offer warranty of 12 months ,during which free spare parts are available if some parts of the machine break to be irreparable. Besides, we also offer whole life technical support which means we will still offer technical advice 1 year after your purchasing. We can discuss to help you out.

4. CAN YOU TAKE CHARGE OF TRANSPORT?

Yes, we have strong expertise in this area for years and you can trust us.


Looking for ideal Superb Frame Making Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Wall Angel Rollformer are quality guaranteed. We are China Origin Factory of Frame Making Machine Bead. If you have any question, please feel free to contact us.
