Zhongtuo Roll Forming Machinery Co., ltd

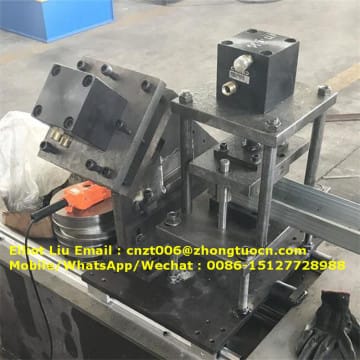

Steel frame roll forming machine
Steel frame roll forming machine
Steel frame roll forming machine
Steel frame roll forming machine
Steel frame roll forming machine

Steel frame roll forming machine

Unit Price: USD 11000 / Set/Sets
Payment Type: L/C,T/T,D/P,Western Union
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Contact Now Add to Basket

Basic Info

    Model No.: ZT-006-101

    Machine Name: Steel Frame Roll Forming Machine

    Process Material: GI

    Material Thickness: 0.3-0.8

    Application: Drywall System

    Computer Language: As Customer Demand

    Transmission: Chain

    Main Power: 5.5 KW

    Roller Material: Cr12

    Shaft Material: 45# Steel With Tempering

    Shaft Diameter: 50mm

Additional Info

    Packaging: Nude packaged in 20 ft container

    Productivity: 25m/min

    Brand: zhongtuo

    Transportation: Ocean,Land

    Place of Origin: cangzhou

    Supply Ability: 50 sets/month

    Certificate: CE, ISO, SGS, IAF,CNAS

    HS Code: 84552210

    Port: Xingang Port Tianjin China

Product Description

Steel frame Roll Forming Machine

Steel frame roll forming machine Brief introduction

Normally speaking, steel frame is used for the drywall system. Compared with wood keel, metal U channel has advantage of light weight, easy to install, durable and so on.The width and height are adjustable. Different models for optional: U shape track,C shape stud,V shape keel or W shape keel.

steel frame machine

Main elements of Steel frame roll forming machine:

2.main roll forming machine
3.punching maching(as customer's need)
4.Cutting machine (normal cutting and flying track cutting saw)(as customer`s need choose one set)
5.PLC control
6.stud machine Counter
7.hydraulic station

8. Automatic stud Machine receiving table

Light Steel Channel Roll Forming Machine

Quickly parameters of Steel frame roll forming machine:
1.Working efficiency: 25m/min
2.Processing material: GI
3.Material hardness: 550MPA-350MPA
4.Thickness of material: 0.5-1.2mm
5.Width of material: according to the profile
6. Un-coiler system: 1.5 Ton decoiler (Manual Decoiler, electric decoiler , hydraulic decoiler)
7.Number of rollers: 10 rollers
8.Automatic stud Machine Roller fixer: guide column
9.Roller material: Gcr12 MoV quenched
10.Material of shaft: 45# steel
11.Diameter of shaft: 40mm
12. Main power: 3KW
13.Hydraulic power: 3KW
14.Hydraulic pressure: 20Mpa
15.Blade material:Gcr12 MoV quenched
16.Voltage: 380V, 50HZ, 3phase (adjustable by customer)
17.Frame: 25mm
18.Drive : gear, chain or case of different speeds(as customer`s demand)
19.Punching mould: each type one set
20.Punching machine: Gcr12 MoV quenched
21.Control system: Delta of Taiwan.
22.machinery for steel framing system color: yellow or blue
23.Lenth: 3000*800*1400mm
More picture of Steel frame roll forming machine for you reference:

steel frame machine (3)

steel frame machine (1)

Some drywall profile for your reference:

drywall profile

Looking for ideal Roll Forming Machinery Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Steel Frame Machine are quality guaranteed. We are China Origin Factory of Steel Frame Roll Forming Machine. If you have any question, please feel free to contact us.

Product Categories : C/U/ Channel & T Bar Roll Forming Machine > Drywall Profile Roll Forming Machine
