Zhongtuo Roll Forming Machinery Co., ltd

ZT-005-35 light steel angle keel roll forming machine
ZT-005-35 light steel angle keel roll forming machine
ZT-005-35 light steel angle keel roll forming machine
ZT-005-35 light steel angle keel roll forming machine
ZT-005-35 light steel angle keel roll forming machine

ZT-005-35 light steel angle keel roll forming machine

Unit Price: USD 14500 - 7000 / Set/Sets
Payment Type: L/C,T/T,D/P,Western Union
Min. Order: 1 Set/Sets
Delivery Time: 10 Days

Contact Now

Basic Info

    Model No.: ZT-005-35

    Roller Station: 8 Rollers

    Power: 3KW

    Machine Size: 2900х800х1400mm

    Roller Material: GCr12MoV

    Roller Fixer: Guide Column

    Drive Mode: Gear

    Diameter Of Shafts:: Φ40mm

Additional Info

    Packaging: as customer's need

    Productivity: 25m/min

    Brand: zhongtuo

    Transportation: Ocean,Land

    Place of Origin: cangzhou

    Supply Ability: 50 sets/month

    Certificate: CE, ISO, SGS, IAF,CNAS

Product Description

light steel angle keel Roll Forming Machine

Brief Introduction

Light steel angle keel roll forming machine is one of the main cold roll forming machine. We are the professional manufacturer of V shape machine and have many experience. The whole production line is controlled by computer. The mill can be designed for different thickness , different material and L shape profiles.

light steel angle keel roll forming machine

Main elements of light steel angle keel roll forming machine


2.light steel angle keel roll forming machine main roll forming machine

3.punching maching(as customer's need)

4.Cutting machine (normal cutting and flying track cutting saw)(as customer`s need choose )

5.PLC control

6. Ceiling Ceiling wall angle Light Guage Steel Making Machine Counter 1 set

7.hydraulic station

8.receiving table

Process flow

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving


  • Usage: It is used to support the steel coil and uncoil it in a turntable way.
  • Passive uncoil pulled by roll forming system
  • Loading capacity: 1.5T
  • Uncoiling width: 300mm
  • Inner diameter: 450-550mm
angle Shape Keel Machine

Entry leveling

This part will level coil to make sure it is neat clean and straight.

angle Forming Line

Roll forming machine

  1. Size: 2900х800х1400mm
  2. Weight : 3 tons
  3. Voltage:380V/50HZ3Phase(as customer`s
  4. Roller fixer : Guide column
  5. Frame : middle plate welded
    Memorial arch frame type
  6. Frame thickness:25mm
  7. Drive mode: gear
  8. Material of rollers: GCr12MoV
  9. Material of shafts: 45# steel with
  10. Diameter of shafts: φ40mm
  11. Number of rollers : 8 rollers
  12. Main power: 3kw
  13. Cycloidal planetary gear speed reducer)

angle Forming Line

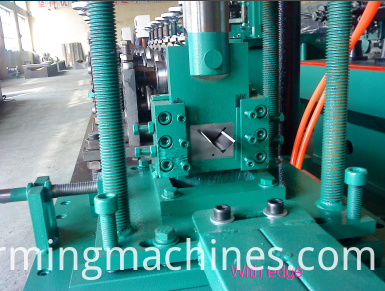

Shearing system

  1. Material of blades: Gcr12MoV quenched
  2. Power supply : hydraulic power
  3. Frame : Pillar style with rack & pinion system
  4. Stroke switch : non-contact photoelectric switch
  5. Components: It contains one set of cutting tools, one hydraulic tank and one cutter machine.

light steel angle keel roll forming machine

PLC station

  1. Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime.

  2. Other electric element are Delta

  3. Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.


1. One year, and we will provide the technical support for the whole life.

2. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day for salary.

3. Need one technicians

4. Training time: one week (contains the time of installation and adjustment)

Looking for ideal Steel Angle Shape Keel Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Angle Forming Line are quality guaranteed. We are China Origin Factory of Steel Angle Keel Roll Forming Machines. If you have any question, please feel free to contact us.
