Good Quality Double Layer Roll Forming Machine
Good Quality Double Layer Roll Forming Machine
Good Quality Double Layer Roll Forming Machine
Good Quality Double Layer Roll Forming Machine
Good Quality Double Layer Roll Forming Machine

Good Quality Double Layer Roll Forming Machine

Unit Price: USD 11500 - 8500 / Set/Sets
Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Contact Now

Basic Info

    Model No.: ZT-004-123

    Name: Good Quality Double Layer Roll Forming Machine

    CMB: 21

    Weight: 6.5T

    Container: 40GP

    Nearest Port: Tianjin Xingang

    PLC: Panasonic Or Delta

    Electric Motor: Siemen

    Number Of Roller: Upper:13 , Under:15

    Roller Material: 45# Steel, Plating Hard Chrominum, 45# Steel, Plating Hard Chromium

    Shaft Material: 45# Steel,hardening And Tempering

Additional Info

    Packaging: nude package

    Productivity: 30 sets per month

    Brand: zhongtuo

    Transportation: Ocean,Land

    Place of Origin: cangzhou

    Supply Ability: 30 sets per month

    Certificate: CE ISO9001

Product Description

Good Quality Double Layer Roll Forming Machine

As a professional manufacturer,we can make the Roofing Panel Roll Forming Machine by customer`s demand, with a profile drawing and thickness, we can do design the machine quickly.Until now,we can do many kinds of roof panel machine,such as trapezoidal sheet making machine, corrugated sheet mnaking machine, glazed Tile Making Machine, double layer roll forming machine and so on.Here is some profile drawings for you reference.

trapezoidal tile 05corrugated tile making machine 07

Main features of each part

Drawing of tile:

double layer

Processing material: colored steel plate, galvanized plate.

Material thickness: 0.3- 0.8 mm

Material hardness: 195 mpa---350 mpa

Formed width:1020 mm

Forming speed: 10-12 m/min

flow of the c z channel roll forming machine

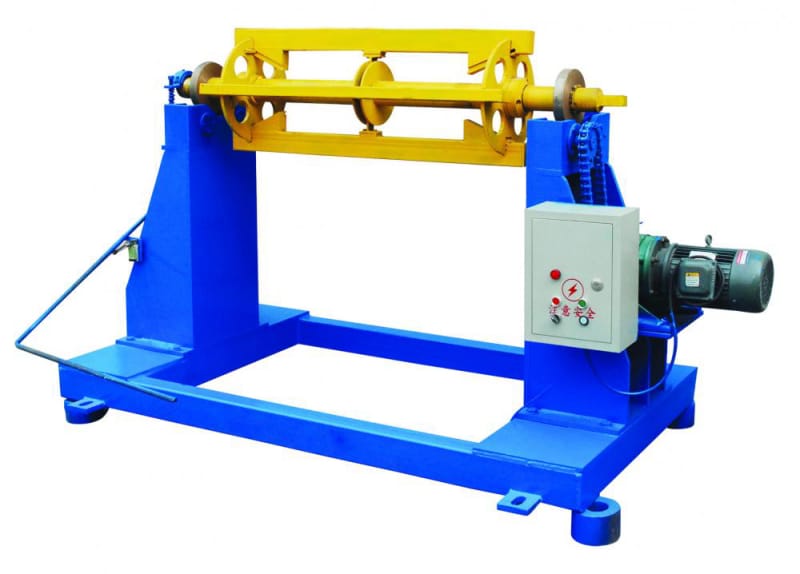

Uncoiler System


Usage: It is used to support the steel coil and uncoil it in a turntable way.

Loading capacity:5 T

Uncoiling width:1200 mm

Inner diameter: 450-550 mm.

Entry Beach

Double Layer Roll Forming machine (8)


Usage: Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

Main Roll Forming System

double layer 2

Size of the main part: about

8500 х 1650 х 1500

Weight of main part: 5. 5 tons

Voltage: 380 V/50 HZ 3 Phase or as your required

Roller fixer : middle plate

Frame : 350 mm H beam steel welded

Drive mode: case of differential

Material of rollers: 45# steel, surface hard chromium plating.

Material of shafts: 45# steel

Diameter of shafts: φ 80 mm

Number of rollers : 15 rollers

Main power: 7.5 kw

Shearing Mechanism


Feature : Ensure stability, precision and cutting speed

Function : Automatic cutting controlled by PLC

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12 quenched

Power supply : hydraulic power

Components: It contains one set of blade, one hydraulic tank and one cutter machine.

Hydraulic Station

Hydraulic Steel Roof Panel Forming Mahcine With Oil Pumb

It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job

Power: 4 kw

Hydraulic oil: 46#

Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, 2 hydraulic pipes. And 1 sets of electromagnetism valves.

Electric Control System



1.Adopted PLC, frequency converter, Delta from Taiwan to ensure high speed with stability, precision and lifetime.

If you need, we can change it other brand or little computer type for touching screen.


One counter gauges length, pulses, and decides length.

Omron encoder for length measurement.

Double Layer Roll Forming machine (6)

Products receiving tables

1. It adopts welded steel and supported roller to transmit the products.

2. 3 m/set with 2 sets



1.Easy damaged parts: conk 2 pcs, fuse-link 4 pcs

2. Rubber mat 1 pcs;

3.Bolt spanner 1 pcs

double layer

Payment terms

Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.

Delivery:within 45 working days after receipt of deposit.


1. Two years guarantee, and we will provide the technical support for the whole life.

2. Training: the buyer should charge of visa, return ticket, food and accommodation

overseas and USD50/person/day for salary, one technician needed.

4. Training time: one week (contains the time of installation and adjustment)

Q: Are you manufacturer?
A: Yes, we are manufacturer and trading company.

Q: What kind of payment term you can do?

A: We are flexible about payment terms, please contact us for details.

Q: What info you need before you make the proposal for a roll forming machine?
A: The profile drawings, material informations, your special requirements.

Q: What I should do if I just start to know roll forming machinery?
A: Contact us immediately, we provide free consultant pre-sales service.
Q: How to visit our company:
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3. Fly to Guangzhou aiport: By air From Guangzhou to Beijing airtpot; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
