High speed rolling shutter door making machine

High speed rolling shutter door making machine could help you make the rolling shutter in batch fully automatic. The speed could reach 50m/min. The high speed machine is designed based on the normal speed machine 25m/min but different with the tranditional shutter doors, it has improved the following elements:

1. Using independent strong frame stand.

2. Using moving and flying shearing system.

3. Adding turkey head to make the size and shape accuracy and beatiful.

4. Add fully automatic receiving table.

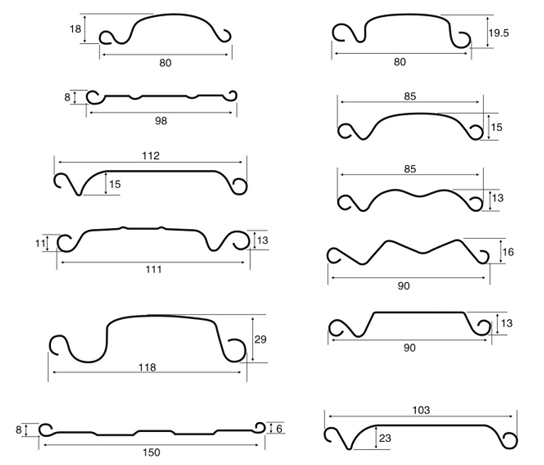

In the following article, I will take a random drawing profile to show machine parameters:

1

High speed rolling shutter door making machine pictures for your reference:

Main Roll Forming Machine system:

a. Number of forming steps: 24 stations

B. Shaft material: 45# steel with quenched treatment, precision machined,

The diameter: 80mm

c. Roller material: Cr12 Mov with quenched treatment

d.Transport: by gear

e. Forming speed: 40m/min
f. Motor: 18.5 kw

g. Voltage: 380v, 50Hz,3 phase or customize

h. Structure: independent stand

i. Size of machine: 4.5m *0.8m *1.2m

Motor brand:Siemens

Flying Shearing system:

The material of blade: Cr12Mov,

Hardening HRC 58-62

Length Tolerance:3m±1.0mm

2 sets single head Turkshead, with 4 rollers*2sets

Hydrailic the infinite cutter to make sure the shearing speed and shape

For making sure the sizes and make the cruve beautiful.

Servo motor drive to make it fast speed.

Adtvantage: lower noise and perfect shape, no stop shearing.

Hydraulic station:

Hydraulic motor Power: 3kw

Hydraulic oil: 46#

Hydraulic pressure: 12 Mpa

Brand: Bosch
Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, and two hydraulic pipes. And two sets of electromagnetism valves.

Hydraulic station with water cooling down system as when machine working at high speed, hydraulic oil is not so powerful, we need to make it cool down.

For this machine if you want to know more information, please contact us at any time.



2

Here are some parameters of high speed rolling shutter door making machine:

3


4

FAQ:

1.Does one High speed rolling shutter door making machine can only produce one style product?

Not exactly. Our machines can produce more kinds of by change their rollers.

2. Do you have after sales support?
Yes, we are happy to give advice and we also send skilled technicians to your place to support the technical guidance. We will let your machines running that in order to keep your business running.

3. What can you do if the machine broken?

Our machine's warranty period is 12months. And if the broken parts can't be repaired, we will send the new one to replace the broken parts. And the only thing you need to do is paying the transport costs.

If beyond the warranty period, we can through the negotiation to solve the problems, and we will supply the technical support for the whole life of the machine.

Looking for ideal High speed rolling shutter door making machine manufacturer & supplier ? We have a wide selection at great prices to help you get the target product. If you have any question, please contact us.
