Galvanized Corrugated Panel Roll Forming Machine

    Unit Price: USD 18500 - 6500 / Set/Sets
    Payment Type: T/T,L/C,D/A,D/P,Western Union,OA
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days
Basic Info

Model No.: Zt-003-158

Additional Info

Packaging: One 20GP

Productivity: 8-25m/min

Brand: Zhongtuo

Transportation: Ocean

Place of Origin: Hebei

Supply Ability: 30sets/month

Certificate: CE/ISO9001

Product Description

Galvanized Corrugated Panel




Roll Forming Machine


Production process

Double Layer Machine For Color Steel Profile

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Step formed→ Auto cutting→Products receiving

Components of production line


Production parameters

Processing material: colored steel plate, galvanized plate, or aluminum plate

Material thickness: 0.3- 1.2mm

Material width:1220mm/1200/1000/1250

Forming speed: 8-25m/min


Drawing of tile

Corrugated Roof Sheet Making Machine


Un-coiler System

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Passive uncoil pulled by roll forming system

Loading capacity

Uncoiling width

Inner diameter

5T

1220mm

450-550mm

Coil feeding part

Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.

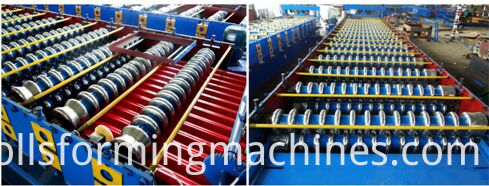

Forming device

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working

Feature : Ensure stability , precision and lifetime.

Corrugated Roof Sheet Making Machine


Cutting device

Advanced hydraulic drive, automatic punching and cutting after forming, no distorting or wasting, high level safety factor.

(include cutting tools, hydraulic tank, cutter machine)

Blade Material

Cutting system

Cr12 quenched

Full automatic

Controlling device

1.Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with

stability, precision and lifetime.

2.Other electric element are Delta

3.Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.

Screen

PLC

Text screen displayer

Taida DVP14ES from Taiwan

Hydraulic

(include a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves )

Orgin

Power

Advanced hydraulic system from Taiwan

3kw

Corrugated board roll forming machine (25)

Spare parts ( for free)

1. Easy damaged parts: conk 2 pcs, fuse-link 4 pcs;

2. Rubber mat 1 pcs;

3. Bolt spanner 1 pcs

Remarks

Payment terms

30% T/T in advance and balance 70% after inspection confirmation before shipment.

Delivery

within 45 working days after receipt of deposit.

Packing

Nude packing with 1*20 container
