Zhongtuo Roll Forming Machinery Co., ltd

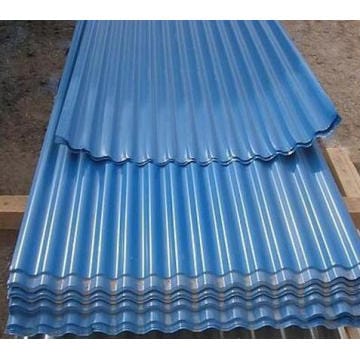

Colored steel roof panel corrugated roll forming machine
Colored steel roof panel corrugated roll forming machine
Colored steel roof panel corrugated roll forming machine
Colored steel roof panel corrugated roll forming machine
Colored steel roof panel corrugated roll forming machine

Colored steel roof panel corrugated roll forming machine

Payment Type: L/C,T/T,D/P,Western Union,O/A
Incoterm: FOB,CIF
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Contact Now Add to Basket

Basic Info

    Model No.: Zt-003-138

    Working Speed: 8-25 M/min

    Total Weight: About 5-7.5 T

    Total Power: 5.5-11 KW

    Roller Fixer: Middle Plate/guide Pillar

    Drive Mode: Chain

    Material Of Rollers: 45# Steel, Surface Hard Chromium Plating

    Diameter Of Shafts: Φ70 Mm

    Number Of Rollers: 15 Rollers

    Name: Corrugated Forming Machine

    Control System: PLC

Additional Info

    Packaging: nude packing

    Productivity: 25 m/min

    Brand: zhongtuo

    Transportation: Ocean

    Place of Origin: cangzhou

    Supply Ability: 30sets/month

    Certificate: CE\ISO9001

Product Description

Colored Steel Roof Panel Corrugated Roll Forming Machine


Product Description

Corrugated board roll forming machine (23)

Components of corrugated iron sheet machinery

No.

Name

Unit

Qty

1

Manual Decoiler

set

1

2

Main forming machine

set

1

3

PLC control system

Set

1

4

Hydraulic pump station

set

1

5

post cut

set

1

6

electric motor

set

1

7

output table

set

1

corrugated iron sheet machinery production process

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving

Details of corrugated iron sheet machinery

Corrugated board roll forming machine (25)

Corrugated board roll forming machine (12)

parameters

NO.

Items

parameters

Remark

1

Suitable Material

type

GI/PPGI/AL

Width

1200mm

Custom

Thickness

0.3-1mm

Product specifications

length

any length

length tolerance

± 2mm

3

Working Speed

8m-25m/min

Standard machine

4

Control System

PLC

Custom

5

Total Power

5.5-11 KW

6

Total Weight

About 5-7.5 T

Up to final design


Packaging & Shipping
Packaging Details: 1. one 20ft container for loading one set machine with manual decoiler; 2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film; 3. Spare parts and some small parts packed in plastic tooling box; 4. All Components Fixed by steel wire with Container.
Delivery Detail: 45 days after receipt of buyer's deposit
Our Services

a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine,and also train your workers/technician face to face.

b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

2.After Sevice

3.a.One year guarantee for whole machine.

b.24 hours technical support by email or calling

c.If there is any problem found of the machine, we will repair it for free in one year.

Company Information

Cangzhou Zhongtuo cold bending forming equipment manufacturing co., LTD is a professional manufacturer and exporter which has its own factory and also cooperate with several production

factories and associated nterprises, concerning with the design, development and production of cold roll forming machines,material of building.

It is located in northwest of CangZhou, as a long history of cold roll forming machine production

base. All products comply with international quality standards

and are greatly appreciated in variety of different markets throughout the world, such

as Asia, Africa, Europe,South America, and Australia and so on.

Looking for ideal Corrugated Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Colored Roof Machine are quality guaranteed. We are China Origin Factory of Corrugated Roll Forming Machine. If you have any question, please feel free to contact us.
