T Bar Roll Forming Machine

    Unit Price: USD 18500 - 6500 / Set/Sets
    Payment Type: L/C,T/T,D/P,Western Union
    Incoterm: FOB,CFR,CIF,EXW
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
Basic Info

Model No.: ZT-005-237

Material: Steel

After Sales Service: Available

Engineers Service Overseas: Available

Additional Info

Packaging: As the Customer's Requirement

Productivity: 10-50m/min

Brand: ZHONGTUO

Transportation: Ocean,Land,Air,as customer requirem

Place of Origin: China

Supply Ability: 30 sets/month

Certificate: CE, ISO9001

Port: TIANJIN,QINGDAO,SHANGHAI

Product Description

T Bar Roll Forming Machine

Brief introduction


We can offer fully automatic machine with in-line punching of T-bars in various customized models and sizes. The ceiling T-Bar, T runner roll forming machines are consisted of a Main T-Bar Machine, a Cross T-Bar Machine and an Angle Roll Forming Machine, which can manufacture main T-Bar, Cross-T-Bar, wall angle, ceiling panel.
There are three lines in the t bar ceiling system that is, the main t bar roll forming machine, cross t bar roll forming machine and L angle roll forming machine.

Main T Grid roll forming machine
We supply Complete roll forming Production line for producing Grid system, Suspended ceiling grid Ceiling T Grid, suspended ceiling grid, Exposed Ceiling Grid, T-bars, T-grid, Ceiling T grid ceiling, T Runner in the various models and sizes.
Main T-bar (Tee) Cold Roll Forming Machine consist of Single or Dual Head Type de-coiler, Roll forming main machine, Hydraulic, Automatic Punching and cut-off Device, run-out table, PLC Automatic Control Cabinet.

Perforated Sheet Machine/ Main T And Cross T Roll Forming Machine

What types of ceiling Tee bar we have?

About the Perforated Sheet Machine/ Main T And Cross T Roll Forming Machine,we have many types, such as Tee bar machine, Tee bar with black line,C channel machine,U channel machine,and so on.But Tee bar is more popular with some general sizes, including 30x24mm,32x24mm,26x24mm 38x24mm,32x15mm and so one.


 Ceiling Tee Grid Forming Machine

 Ceiling Tee Grid Forming Machine

basic parameters:

Raw material

Processing material: GI

Material thickness: 0.2-0.8mm

Material hardness: 550 MPA-350 MPA


Decoiler

Usage:Support two kinds of coils for automation

Loading capacity: 1.5T

Uncoiling width: 300mm

Inner diameter: 450-550mm

FUT Ceining Bar Making Machine

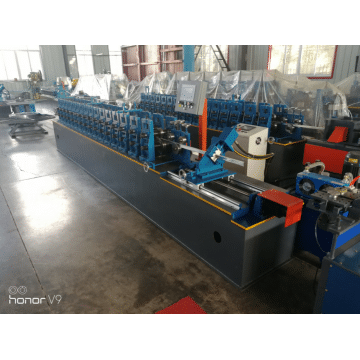

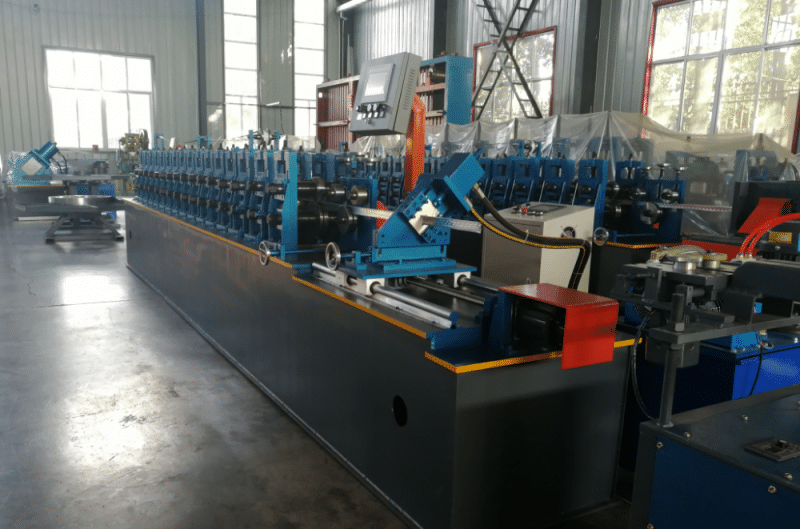

Main machine for Ceiling Tee Grid Forming Machine

Size: 3500х800х1400mm

Weight : 3 tons

Voltage:380V/50HZ3Phase (as customer`s request)

Rollerfixer : Guide column

Frame:middle plate welded, memorial arch frame type

Frame thickness:25mm

Drive mode: gear box

Material rollers: GCr12MoV

Material of shafts: 45# steel with tempering

Diameter of shafts: φ40mm

Number of rollers : 16 rollers

Main power: 3kw

Speed: 10-50m/min

Cyclical planetary gear speed reducer)

Notice: different sizes will be produced by adjusting the spacers by hand.

Perforated Sheet Machine/ Main T And Cross T Roll Forming Machine

Perforated Sheet Machine/ Main T And Cross T Roll Forming Machine

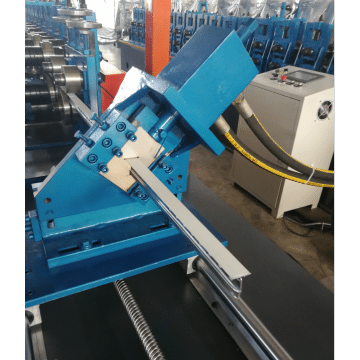

Shearing Mechanism and punching the head

Material of blades: Gcr12MoV quenched

Power: hydraulic power

Frame : Pillar style with rack & pinion system

Stroke switch : non-contact photoelectric switch

Components: It contains one set of cutting tools, one hydraulic tank and one cutter machine.

Perforated Sheet Machine/ Main T And Cross T Roll Forming Machine



ZTRFM has been dedicating to roll forming technologies for over 2 decades and now boasts strong experience, capabilities, innovative thinking and roll forming expertise to provide perfect roll forming solutions to our clients. At ZTRFM, we can help build a better future for you and your customer.

FAQ

1. IS AFTER SALES SERVICE AVAILABLE?

Yes, we offer 7x 24hours online support and our engineers can work oversea to help.

2. HOW CAN I GET TO YOUR FACTORY?

a. First fly to Beijing airport and then go from Beijing Nan to Cangzhou Xi (1 hour) by high speed train . Then we can pick you up at the railway station.

b. First fly to Shanghai Airport and then go from Shanghai Hongqiao to Cangzhou Xi(4.5 hours) by high speed train. Then we can pick you up at the railway station.

3. WHAT IF SOME PARTS BREAK?

We offer warranty of 12 months ,during which free spare parts are available if some parts of the machine break to be irreparable. Besides, we also offer whole life technical support which means we will still offer technical advice 1 year after your purchasing. We can discuss to help you out.

4. CAN YOU TAKE CHARGE OF TRANSPORT?

Yes, we have strong expertise in this area for years and you can trust us.


Looking for ideal Main T Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Cross IT Machine are quality guaranteed. We are China Origin Factory of Roll Forming Machine T Bar. If you have any question, please feel free to contact us.
