Zhongtuo Roll Forming Machinery Co., ltd

Metal Stud System Roll Forming Production Line
Metal Stud System Roll Forming Production Line
Metal Stud System Roll Forming Production Line
Metal Stud System Roll Forming Production Line
Metal Stud System Roll Forming Production Line

Metal Stud System Roll Forming Production Line

Payment Type: L/C,T/T
Incoterm: FOB,CIF
Min. Order: 1 Set/Sets
Delivery Time: 40 Days

Contact Now

Basic Info

    Model No.: zt-003

    Tile Type: Colored Steel

    Certification: CE, ISO

    Condition: New

    Customized: Customized

    Usage: Roof

    Transmission Method: Electric

    Shaft Diameter: 40mm

    Design Type: Memorial Arch Frame Type

    Roller Material: GCr12MoV

    Shaft Material: 45# Steel

    Work Speed: 10-20m/min

    Transport: Gear

Additional Info

    Packaging: nude packaging

    Productivity: 30 sets per month

    Brand: zhongtuo

    Transportation: Ocean,Land

    Place of Origin: China

    Supply Ability: 30 sets per month

    Certificate: ISO CE

    HS Code: 8455221000

    Port: Tianjin

Product Description

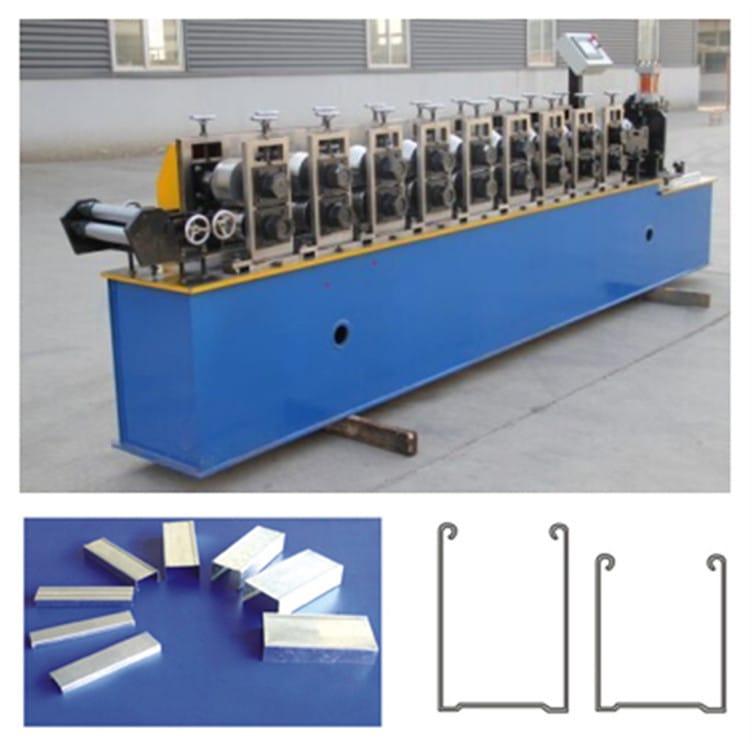

Metal Stud System Roll Forming Production Line



This Metal Stud System Roll Forming Production Line is fully automatic and high speed producing continuously, one set of forming rolls can produce various sizes of Stud and Runner just by simply and easily by agjusting the spacer manually, this enables the production of different sizes products on the same rollers.

 Metal Stud System Roll Forming Production Line )

Metal Stud System Roll Forming Production Line is consisted of Manual Decoiler, feeding,main machine of roll forming, cutting and punching the head, electric motor,hydraulic station,Delta PLC control system, run out table



 Metal Stud System Roll Forming Production Line


some profile drawings for your reference

2

some technical parameters of Metal Stud System Roll Forming Production Line

Decoiler

Usage: It is used to support the steel coil and uncoil it in a turntable way. Passive uncoil pulled by roll forming system

Loading capacity: 3T

Uncoiling width: 500mm

Inner diameter: 450-550mm

Main Roll Forming Machine:

Feeding and flatting will make sure the steel is neat clean and straight.

Roller fixer : Guide column

Frame : middle plate welded Memorial arch frame type

Drive mode: gear

Diameter of shafts: φ40mm

Shearing Machine:

Power supply : hydraulic power

Frame : Pillar style with rack & pinion system

Stroke switch : non-contact photoelectric switch

Electic Control System:

1. Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime.

2.Other electric element are Delta

3. Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.

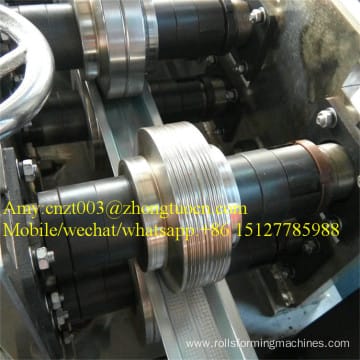

some details of Metal Stud System Roll Forming Production Line

This machine is also can be designed for in line punching, punching and cutting in one time. Main motor use AC servo motor with inverter, producing in line speed: 60 meter per minute, quick or slow speed can be adjusted freely. After roll forming, automatic in line punching and cutting continuously.

Logo and embossing are ok.

 Metal Stud System Roll Forming Production Line

Adjust the spacers for different sizes.

 Metal Stud System Roll Forming Production Line )


FAQ:

1.How to ask the accurate quotation of the Metal Stud System Roll Forming Production Line?

1.) Normally we give the accurate quotation based on the drawing profile, so if you want to get the accurate quotation, please show us the drawing profile first.

2.)Machine could be designed in many type and methods, for the machine frame, PLC brand, motor brand all will effect the price.

2. Terms of payment:

30% T/T, Balance to be paid before shipping after inspection.Also we accept the payment L/C, O/A , D/P.

3. What is your after-sale service?

Metal Stud System Roll Forming Production Line warranty period is 24 months,if the broken parts can't be repaired,we can send new to replace for free,but you need to pay the express cost yourself.we supply the technical support for the whole life of the T Bar Roll Forming Machine.


4. How to visit your company?

a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.

b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.


Why choose us ?
1. We are professional manufacturer, so we can offer better price and after-sale service and shorter delivery time.
2. We have strong design & technical ability, we can design and manufacture as customer's requirement.
3. Our factory has been approved ISO 9001 certificate.
4. We have much experience for installation and training experience overseas.
5. We have successfully exported our machines to more than 90 countries, We all get good feedback.
6. We provide a free two years warranty for all our items.
7. OEM brand.
