Ceiling stud and track iron roll forming machine

    Unit Price: USD 10500 - 20000 / Set/Sets
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
Basic Info

Model No.: ZT--65C

Additional Info

Packaging: NUDE PACKAGING IN 1*20GP CONTAINER

Productivity: 20sets/month

Brand: Zhongtuo

Place of Origin: China

Supply Ability: 20sets/month

Certificate: ISO9001,CE

Product Description

C iron Roll Forming Machine


Product Description


1. Profile

Processing material: GI

Material thickness: 0.4---0.8mm

Material hardness: 550 MPA---350 MPA

Formed width: 65mm

Forming speed: 20m/min

Working speed :20m/min


2. Process flow

Decoiling--feeding---forming---measuring---cutting---production


3. Decoiler

1.5 tons Manual Decoiler


4.Forming device

1. Shaft material 45# steel;

2. Rollers material:GCr12MoV

3. Roller fixer : Guide column

4. Forming speed: 20m/min

5. Motor: 3kw

6. Dimension:3000*800*1400mm

7. Weight: 3T

8.Number of rollers : 10 rollers


5. Cutting device

1. Blade Material: Cr12 steel with quenched treated 60-62°C

2. Cutting system: stop then cut, full automatic

6.Controlling device

1. screen: text screen displayer

2. PLC: Taida DVP14ES from Taiwan

3. coder: ENC-1-1-1T-24 from South Korea


7. Hydraulic

1. Advanced hydraulic system from Taiwan

2. Power: 5.5kw


8. Spare parts

1. easy damaged parts: conk 2 pcs, fuse-link 4 pcs

2. rubber mat 1 pcs;

3. bolt spanner 1 pcs

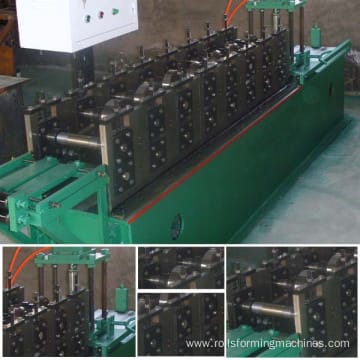

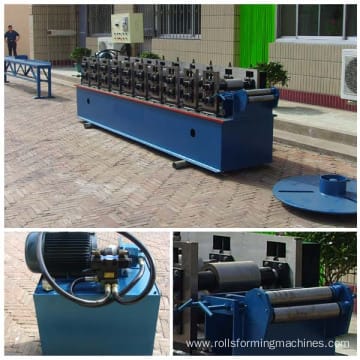

4. Picture as attached below




Packaging & Shipping


Payment terms

30% T/T in advance and balance 70% after inspection confirmation before shipment.


Our Services



Warranty

1. One year, and we will provide the technical support for the whole life.

2. Training: the buyer should charge of visa, return ticket, food and accommodation

overseas and USD50/person/day for salary.

3. Need one technicians

4. Training time: one week (contains the time of installation and adjustment)

Looking for ideal C Ceiling Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Metal Stud and Track Roll Forming Machine are quality guaranteed. We are China Origin Factory of Stud and Track Forming Machine. If you have any question, please feel free to contact us.
