Zhongtuo Roll Forming Machinery Co., ltd

Ceiling T Bar Frame Machine
Ceiling T Bar Frame Machine
Ceiling T Bar Frame Machine
Ceiling T Bar Frame Machine
Ceiling T Bar Frame Machine

Ceiling T Bar Frame Machine

Unit Price: USD 18500 - 5500 / Set/Sets
Payment Type: T/T,L/C,D/A,D/P
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Contact Now Add to Basket

Basic Info

    Model No.: ZT-005-43

Additional Info

    Packaging: As the Customer's Requirement

    Productivity: 25m/min

    Brand: ZHONGTUO

    Transportation: Ocean,Land

    Place of Origin: China

    Supply Ability: 30 sets/month

    Certificate: CE, ISO9001

Product Description

Ceiling T Bar Frame Machine

China homemade Ceiling T Bar Frame Machine, has two types for Tee bar roll forming machines, half automatic version and full automatic version.

We has all kinds of tee bar types, auch as expose system type, plane groove system, wide plane system,narrow plane system,coating system, T37 system and so on.And we also has takedown german clip performance and other metal parts. From our side, we can provide you all the product line for ceiling, more effective and quick.

Ceiling T Bar Frame Machine

Process of Ceiling T Bar Frame Machine:

The Composition Of Ceiling T Bar Frame Machine:


  • Usage: It is used to support the steel
  • coil and uncoil it in a turntable way.
  • Passive uncoil pulled by roll forming system
  • Loading capacity: 1.5T
  • Uncoiling width: 300mm
  • Inner diameter: 450-550mm
Ceiling T Bar Frame Machine

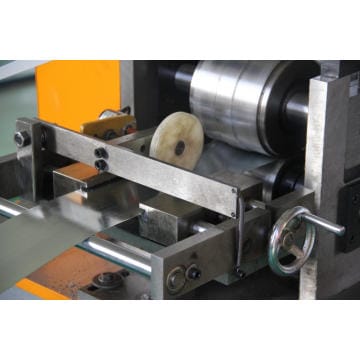

2.Feeding and leveling for Ceiling T Bar Frame Machine

This part will level coil to make sure it is neat clean and straight. Meanwhile the roller will punch dots at both side of the C channel.

Ceiling T Bar Frame Machine

3.Roll Forming Machine

  • Size: 5500х800х1400mm
  • Weight t: 2.8 tons
  • Voltage:380V/50HZ3Phase(as
  • customer`s request)
  • Roller fixer : Guide column
  • Frame : middle plate welded
  • Memorial arch frame type
  • Frame thickness:25mm
  • Drive mode: gear
  • Gear material: GCr12MoV
  • Material of rollers: GCr12MoV
  • Material of shafts: 45# steel with tempering
  • Diameter of shafts: φ40mm
  • Number of rollers :16 rollers
  • Main power: 4kw
  • speed:can be 25m/min

Ceiling T Bar Frame Machine

Ceiling T Bar Frame Machine

4.Shearing Machine

  • Material of blades: Gcr12 quenched
  • Power supply : hydraulic power
  • Frame : Pillar style with rack & pinion system
  • Stroke switch : non-contact photoelectric switch

Ceiling T Bar Frame Machine

5.Hydraulic Station and Electric Control System

  • Hydraulic motor Power: 4kw
  • Hydraulic oil: 46#
  • Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime.
  • Other electric element are Delta
  • Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.

Tee Bar Roll Forming Machine

Tee Bar Making Machine

7.Some end product picture of our Ceiling T Bar Frame Machine:

Ceiling T Bar Frame Machine

Ceiling T Bar Frame Machine

Looking for ideal T Bar Frame Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Ceiling Frame Machine are quality guaranteed. We are China Origin Factory of Ceiling Bar Frame Machine. If you have any question, please feel free to contact us.

Product Categories : C/U/ Channel & T Bar Roll Forming Machine > Ceiling Channel Roll Forming Machine
