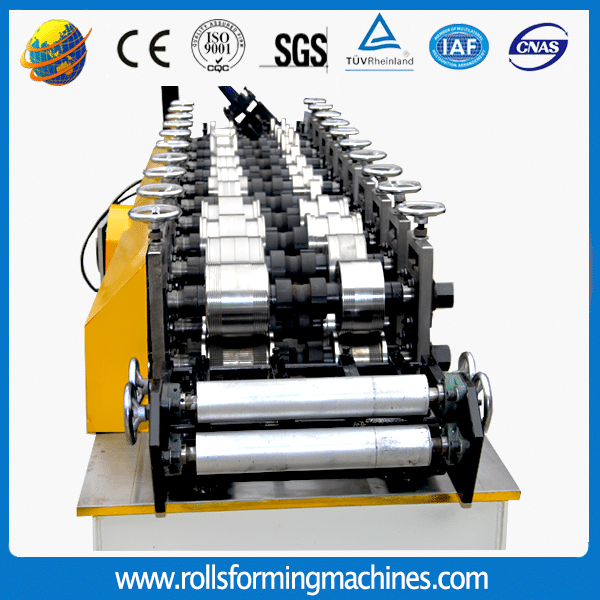

Light gauge steel machine for ceiling

    Unit Price: USD 32550 - 6500 / Set/Sets
    Payment Type: L/C,T/T,D/P,Western Union
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
Basic Info

Model No.: ZT-005-100

Additional Info

Packaging: as customer's need

Productivity: 25m/min

Brand: zhongtuo

Transportation: Ocean,Land,Air,as customer requirem

Place of Origin: cangzhou

Supply Ability: 50 sets/month

Certificate: CE, ISO, SGS, IAF,CNAS

Product Description

Brief Introduction

Product description

Zhongtuo automatic C channel Roll Forming Machine, fully automatic, computer operated roll forming machine for different profiles (purlines), such as U-, C-, Z- and diverse widths and forms. The width is adjustable using just one profilling unit. Cassette type design implies the production of different profile forms by changing the cassettes with their different profiling units. Through the integrated flying punching machine required assembly, holes can be made during the production process. It is fireproof, rustproof and CE & ISO approved.

The width and height are adjustable.

Different models for optional: U shape track,C shape stud,V shape keel or W shape keel.


Ceiling U shaped Roll Forming Machine


Main elements of Ceiling light guage steel Making Machine

1.Decoiler 1 set

2.main roll forming machine 1 set

3.punching maching(as customer's need) 1 set

4.Cutting machine (normal cutting and flying track cutting saw)(as customer`s need choose one set)

5.PLC control 1 set

6.Counter 1 set

7.hydraulic station 1 set

8.receiving table 1 set

Ceiling U shaped Roll Forming Machine


Some main parameters of Ceiling light guage steel Making Machine

1.Working efficiency:20m/min

2.Processing material: GI

3.Material hardness: 550MPA-350MPA

4.Thickness of material: 0.2-0.55mm

5.Width of material: 35mm-65mm

6. Un-coiler system: 1.5 Ton decoiler (Manual Decoiler, electric decoiler , hydraulic decoiler)

7.Number of rollers: 10 rollers

8. Ceiling light guage steel Making Machine Roller fixer: guide column

9.Roller material: Gcr12 MoV quenched

10.Material of shaft: 45# steel

11.Diameter of shaft: 40mm

12.Ceiling light guage steel Making Machine Main power: 3KW

13.Hydraulic power: 3KW

14.Hydraulic pressure: 20Mpa

15.Blade material:Gcr12 MoV quenched

16.Voltage: 380V, 50HZ, 3phase (adjustable by customer)

17.Frame: 25mm

18.Drive : gear, chain or case of different speeds(as customer`s demand)

19.Punching mould: each type one set

20.Punching machine: Gcr12 MoV quenched

21.Control system: Delta of Taiwan.

22.Machine color: yellow or blue

23.Lenth: 3000*800*1400mm

Ceiling U shaped Roll Forming Machine

Light gauge steel is a new building material. With the development of China`s modernization, light steel keel widely used in hotels, airport, railway stations, factories, office buildings, interior decoration, ceiling and so on.

Feasure: light weight, high strength, waterproof, shockproof, sound proof, sound absorbing, constant temperature. Short during, simple construction and so on.


some other Ceiling board profile drawing for your reference

Ceiling U shaped Roll Forming Machine



Looking for ideal Ceiling C Shaped Making Mill Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Ceiling U Shaped Roll Forming Machine are quality guaranteed. We are China Origin Factory of Ceiling Light Guage Steel Making Machine. If you have any question, please feel free to contact us.
