Zhongtuo Roll Forming Machinery Co., ltd

Stud And Truss Profile Roll Former Framing Machine
Stud And Truss Profile Roll Former Framing Machine
Stud And Truss Profile Roll Former Framing Machine
Stud And Truss Profile Roll Former Framing Machine
Stud And Truss Profile Roll Former Framing Machine

Stud And Truss Profile Roll Former Framing Machine

Unit Price: USD 20000 - 6000 / Set/Sets
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Contact Now Add to Basket

Basic Info

    Model No.: ZT-004-003

Additional Info

    Packaging: nude

    Productivity: 25m/min

    Brand: zhongtuo

    Place of Origin: cangzhou

    Supply Ability: 30sets/month

    Certificate: ce,iso9001

Product Description

Stud & Truss Profile Roll Former

Stud and truss profile roll former is also called light gauge steel framing machine.It is widely used in wall, floor and truss framing. Our light gauge steel framing machine produce studs & track from 3 5/8″(92.1mm) to 8″(203.2mm) widths with light gauge steel from 24(0.701mm) to 14(1.994mm)gauge.

profile size



lip max:19.1mm

steel thickness


stud and truss

Some component of the stud and truss profile roll former

combined pictures of stud

The specification of the stud and truss profile roll former

Processing material:GI

Material thickness:0.4---1.0mm

Material hardness:550MPA---350MPA

Formed width:28/60mm

Forming speed:25m/min

Machine size:3800*1200*1400

Weight of main part:3 tons

Roller fixer:Guide column Memorial arch frame type

Frame thickness:25mm

Drive mode:gear

Material of rollers:GCr12MoV

Material of shafts:45# steel with tempering

Diameter of shafts:φ40mm

Number of rollers:10 rollers

Main power:3kw

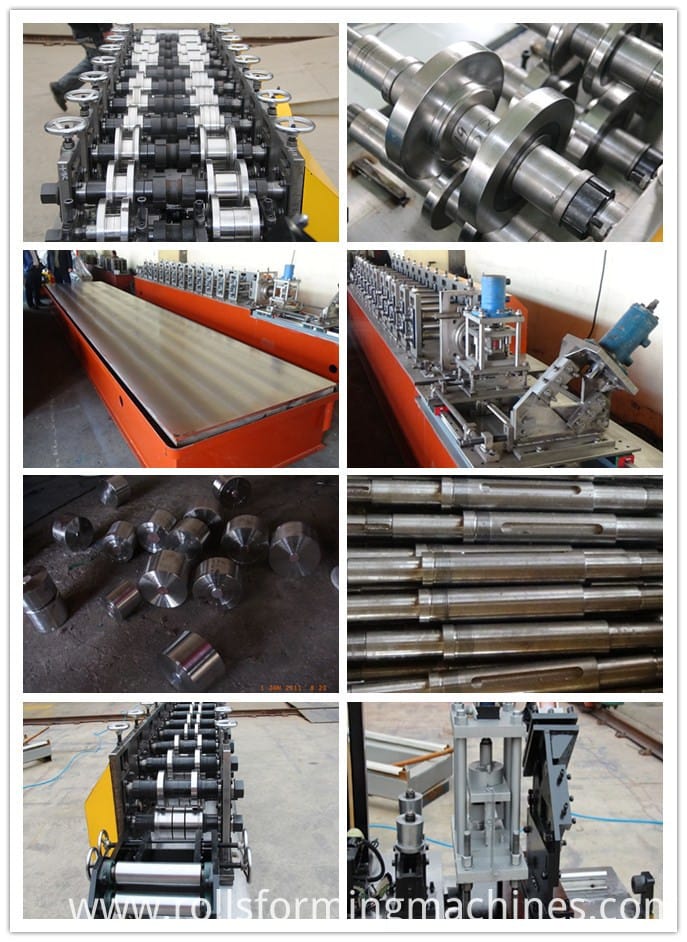

More pictures about the stud and truss profile roll former

combined pictures 2 of the stud

Packaging & Shipping



1. Do you have after sales support?

Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.

2. How to visit your company?

a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.

b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.

3. What can you do if the machine broken?

Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.

4. Can you be responsible for transport?

Yes,please tell me the destination port or address.we have rich experience in transport.

5. You are trade company or factory?

We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.

6. Why your price is higher than others?

As we persist on that each factory should put quality at the first place. We spend time and money on developing How to make machines much more automatic, accurate and high quality. We can make sure thatour machine could use more than 20 years without any problem. We can provide 2 years free qualityassurance.

7. How long the machine could be made?

Normally speaking, Welded Pipe Making Machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.

Looking for ideal Stud And Truss Profile Roll Former Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Light Gauge Steel Framing are quality guaranteed. We are China Origin Factory of Stud And Truss Roll Former. If you have any question, please feel free to contact us.

Product Categories : C/U/ Channel & T Bar Roll Forming Machine > Ceiling Channel Roll Forming Machine
