C/Z Purlin Machine: Complete Solution for Automatic Steel Profile Production
With the rapid development of steel structure buildings, industrial facilities, and renewable energy projects, the demand for high-quality steel profiles continues to increase worldwide. The C/Z Purlin Machine is an advanced solution designed for manufacturing C and Z shaped steel profiles through continuous cold roll forming technology.
The Pre-Cutting C/Z Purlin Producing Line integrates decoiling, material feeding, hydraulic punching, roll forming, cutting, and intelligent PLC control systems. It provides accurate forming performance, stable operation

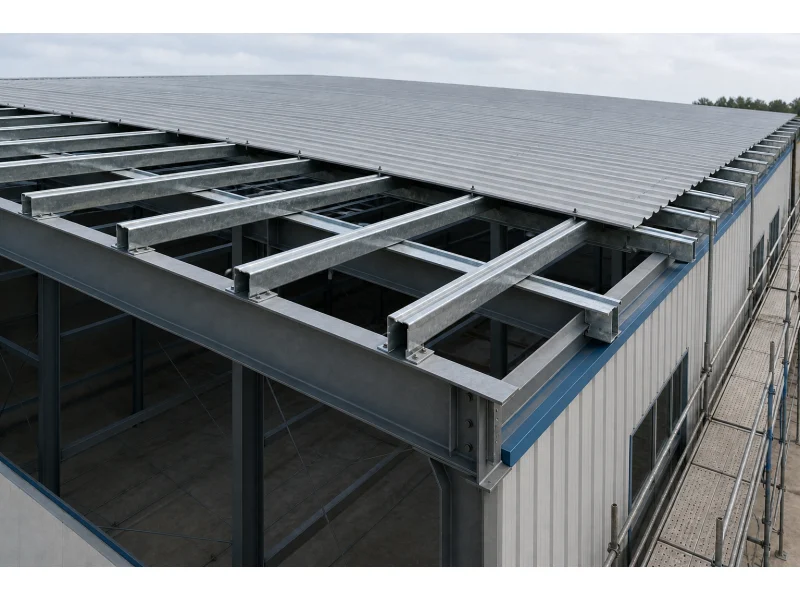

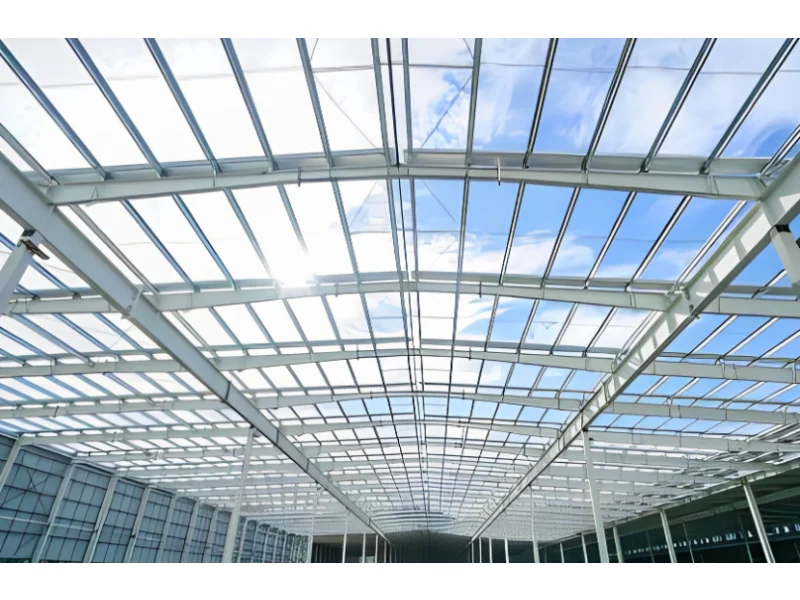

Applications of C/Z Purlin Roll Forming Machine
The products manufactured by the C/Z Purlin Roll Forming Machine are widely used in steel structure buildings, warehouses, factories, logistics centers, and commercial construction projects.
C and Z purlins provide excellent load-bearing performance while maintaining lightweight characteristics. They are commonly used as roof support structures, wall framing components, and important connection parts in modern steel buildings.
Main applications include:
- Steel structure workshops
- Industrial warehouses
- Agricultural buildings
- Solar mounting systems
- Prefabricated construction projects
According to industry data from organizations such as the World Steel Association, steel continues to play an important role in global construction and infrastructure development.
(Industry statistics can be added here according to your own data source.)

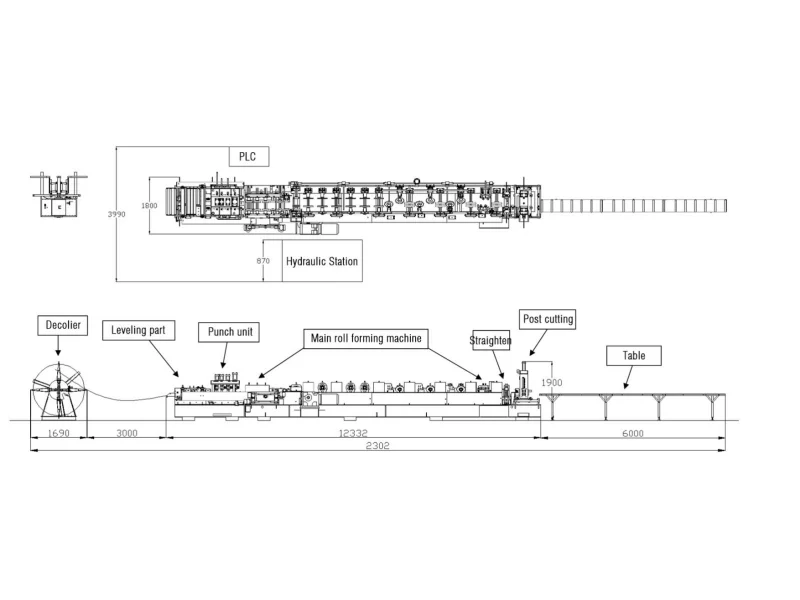

Production Process of C/Z Purlin Producing Line
The C/Z Purlin Producing Line uses advanced cold roll forming technology to transform steel coils into accurate C and Z shaped profiles. The production process starts with loading the steel coil onto the decoiler, where the material is smoothly fed into the leveling and guiding system to ensure stable operation.
After feeding, the steel strip passes through multiple precision rollers that gradually form the required C or Z profile. The hydraulic punching and cutting systems complete the required processing according to preset parameters, ensuring accurate dimensions and consistent product quality.
With automatic control technology, the complete production process requires less manual operation while maintaining high efficiency and reliable performance for continuous steel purlin manufacturing.

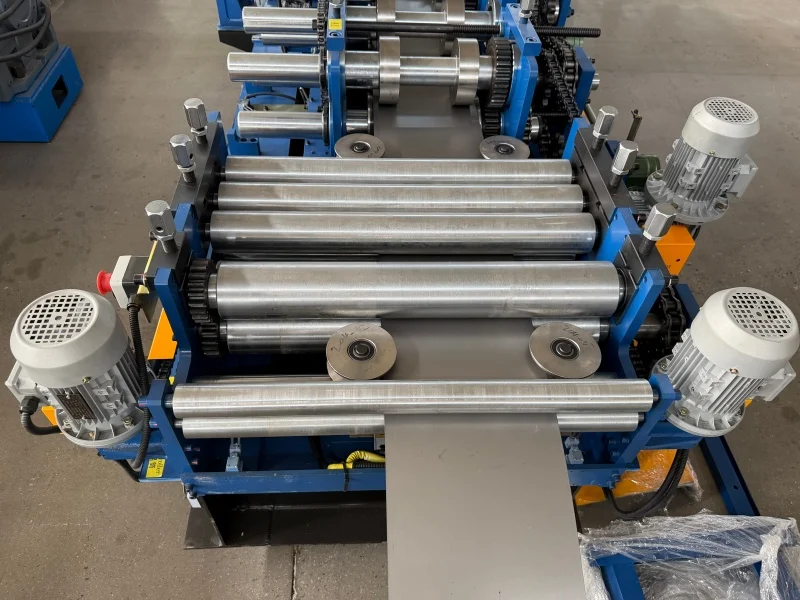

Material Feeding and Guiding System
The material feeding section is designed to ensure smooth and accurate steel strip entry before the roll forming process. The machine is equipped with an upper and lower calibration roller system, including 3 upper rollers and 4 lower rollers, which effectively correct material deviation and improve feeding stability.
The feeding system also includes adjustable guide rollers, which help control the material position during operation. The guide rollers can be adjusted electrically according to different material widths, making the machine more convenient and flexible for various production requirements.
The calibration rollers are manufactured from Cr15 high-quality steel, providing excellent wear resistance, strength, and long-term stability during continuous production.

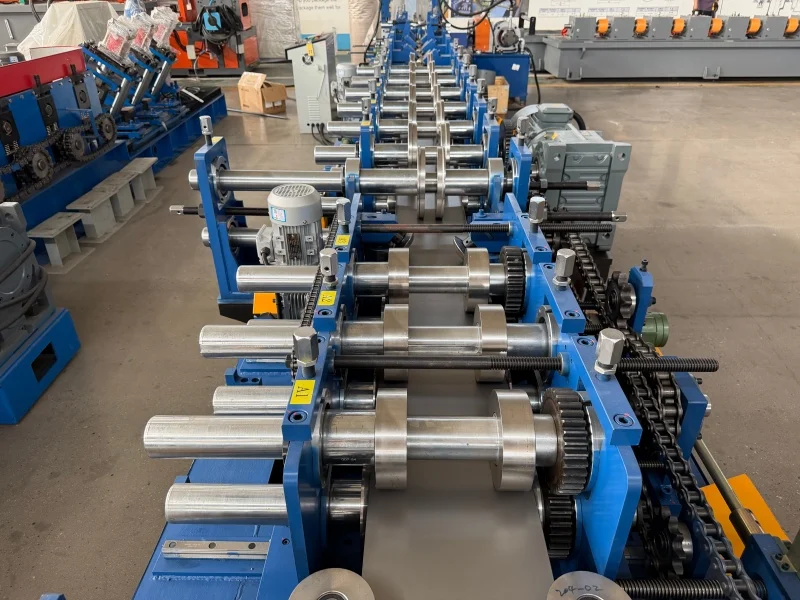

Roll Forming System
The roll forming section is the core part of the C/Z Purlin Roll Forming Machine. Through multiple precision-designed rollers, the steel strip is gradually shaped into C or Z profiles while maintaining accurate dimensions and smooth surface quality.
The forming shafts are manufactured from 45# high-grade steel, and the rollers use GCr15 material, providing excellent strength, wear resistance, and long service life during continuous production.

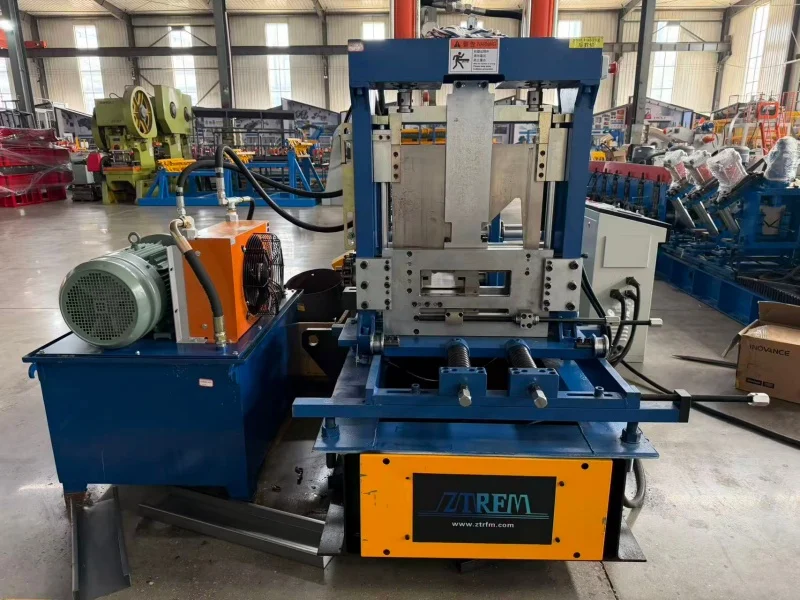

Hydraulic Punching and Cutting System
The hydraulic punching and cutting system completes profile processing according to customer requirements.
The punching unit creates accurate holes before forming, while the hydraulic cutting system separates finished profiles according to the preset length. The cutter material reaches HRC58-62 hardness, ensuring reliable cutting performance and long-term durability.
Technical Specifications of Pre-Cutting C/Z Purlin Producing Line
The following specifications represent the standard configuration of this C/Z Purlin Machine:
| Item | Specification | Item | Specification |
| Product Name | Pre-Cutting C/Z Purlin Producing Line | Raw Material | PPGI / PPGL / GI / GL |
| Material Thickness | 1.5mm - 3mm | Voltage | 380V / 440V / 220V |
| Main Power | 22KW | Machine Weight | 7000 kg |
| Decoiler | 5T Hydraulic / Manual Decoiler | Punching System | Hydraulic Punching |
| Control System | PLC and Computer Control | Shaft Material | 45# High Grade Steel |
| Roller Material | GCr15 | Cutter Material | HRC58-62 |
| After Sales Service | Overseas Engineer Support | Machine Type | C/Z Purlin Roll Forming Line |
How to Choose a Reliable C/Z Purlin Machine Manufacturer
Choosing the right C/Z Purlin Machine manufacturer is important for long-term production efficiency. International buyers should consider machine quality, manufacturing experience, customization capability, and after-sales support.
A professional supplier should provide complete solutions, including equipment design, installation guidance, technical training, spare parts supply, and overseas engineer service.
Important factors include:
- Manufacturing experience
- Production technology
- Quality inspection system
- Customer support capability
- Export experience
Frequently Asked Questions About C/Z Purlin Machine
What is a C/Z Purlin Machine used for?
A C/Z Purlin Machine is used to manufacture C and Z shaped steel profiles for steel buildings, warehouses, solar mounting structures, and industrial construction projects.
What materials can the machine process?
The machine can process PPGI, PPGL, GI, and GL steel coils with material thickness from 1.5mm to 3mm.
Can the machine produce different purlin sizes?
Yes. The production line can be customized according to different profile sizes, punching requirements, and production specifications.
Does the manufacturer provide installation service?
Yes. Professional manufacturers provide overseas engineer support for installation, commissioning, and operator training.
Conclusion
The C/Z Purlin Machine is an efficient and reliable solution for modern steel profile manufacturing. With automatic production technology, precision forming components, hydraulic punching, and intelligent PLC control, it helps global manufacturers improve production efficiency and product quality.
Choosing a professional C/Z Purlin Roll Forming Machine manufacturer enables companies to achieve stable production, reduce operating costs, and build long-term competitiveness in the international steel construction market.
