All Kind of Decoiler,Unwinding,Uncoiler Machine

    Unit Price: USD 2500 - 9500 / Set/Sets
    Payment Type: L/C,T/T,D/P,Western Union,D/A
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days
Basic Info

Model No.: ZT-004-064

Additional Info

Packaging: nude

Productivity: 45

Brand: zhongtuo

Transportation: Ocean,Land

Place of Origin: cangzhou

Supply Ability: 30sets/month

Certificate: ce,iso9001

Product Description

All Kind of Decoiler,Unwinding,Uncoiler Machine


As all of our customers known that most our roof panel Roll Forming Machine production line is consisted by uncoiler, entry beach,main roll forming system,cutting system,hydraulic station, electric controlling system and output table. So as to the uncoiler, it is also called unwinding or decoiler. We also provide many types uncoiler for your choosing. For example the manual, electric, hydraulic and hydraulic one with car and so on. If you want the machine can be automatic, we advise you to buy a hydraulic decoiler. and if you want an normal line, you just need to buy a manual uncoiler.


Manual uncoiler

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Loading capacity:5 T

Uncoiling width:1200 mm

Inner diameter: 450-550 mm.

Manual Uncoiler

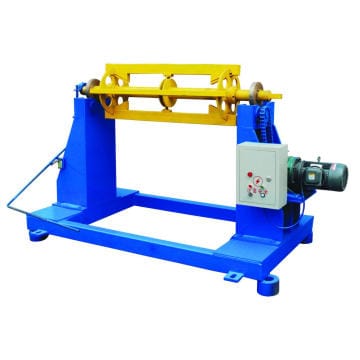

Electic unwinding

Main specification

1 Coil inner diameter: 450-550mm
2 Max coil width: 1250mm
4 Carrying capacity:5000kg

5.Motor:3kw

6.Electric expansion

7.Automatically feeding

Electric uncoiler (1)



Hydraulic Uncoiler

Main specification

1 Coil inner diameter: 450-550mm

2 Max coil out diameter:1300 -1600 mm
3 Max coil width: 1250mm
4 Carrying capacity:10T
5 Hydraulic expansion

6 Automatically feeding

7 Hydraulic, inner tight

8 Hydraulic power : 3 kw Drive power:3kw

Hydraulic unciler




Hydraulic Decoiler with car

Main specification

1 Coil inner diameter: 450-550mm

2 Max coil out diameter:1300 -1600 mm
3 Max coil width: 1250mm
4 Carrying capacity:10T
5 Hydraulic expansion

6 Automatically feeding

7 Hydraulic, inner tight

8 Hydraulic power : 3 kw Drive power:3kw

8T Hydraulic uncoiler





Looking for ideal All Kind of Decoiler Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the All Kind of Decoiler are quality guaranteed. We are China Origin Factory of Manual Uncoiler Machine. If you have any question, please feel free to contact us.
