Upright Rack(also called Uprights or Upright Columns) vary in size and design depend on the load capacity and styles. Such as L Shape ( Light Capacity), C Shape (Medium Capacity), Special C Type for heavy Capacity. Holes(Tear Drop Design) and slots are punched during producing so that the load beams can be mounted into the Upright Racks. The heavy Upright Racks thickness up to 2.5mm.
Cangzhou zhongtuo has different design roll forming machines for different requirements:
1: High speed, speed can be up to 30m/min
2: Automatic adjustment
3: Economic solution
The different sizes of the upright racks can be produced in one roll forming machine with holes and slot punched

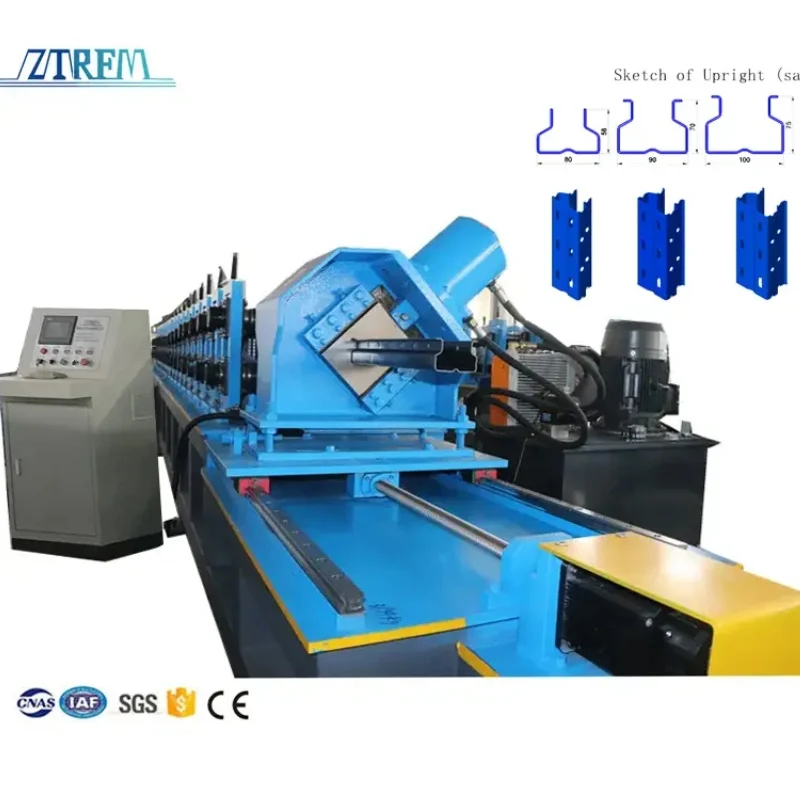

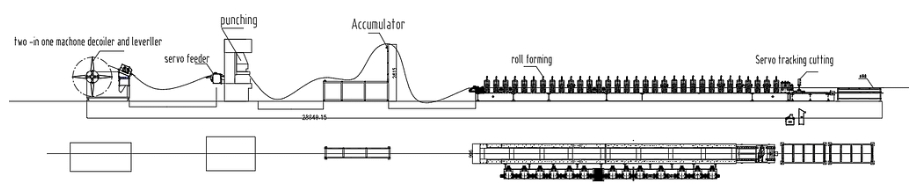

The Layout of Upright Rack Roll Forming Machine
Uncoiling–Punching Holes and Slots– Feeding and Guiding– Roll Forming– Cutting Off— Collecting.
M/C of Upright Rack Roll Forming Machine
1 Uncoiler and Leveler 1 Set
2 Servo Feeder and Punch Press 1 Set
3 Accumulator 1 Set
4 Roll Forming Machine 1 Set
5 Controller 2 Set
6 Hydraulic Station 2 Set
7 Collection Table 1 Set
Specifications of Upright Rack Roll Forming Machine

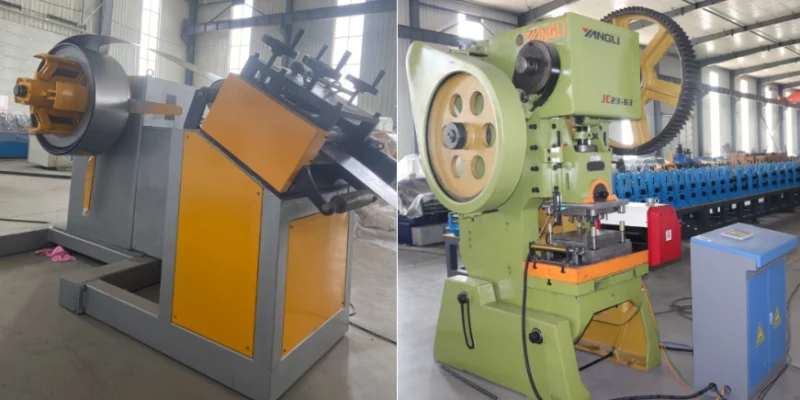

Uncoiler and Leveler
- Hydraulic expansion, Passive uncoiling
- Mounted with press arm to avoid the coil over-uncoiling
- Mounted with limit sensor to avoid over uncoiling
Servo Feeder and 80 Ton Punch Press (Yangli Brand)
- Servo Feeder: servo motor driven, for feeding material into punching press.
- Multistage Type Feeding:can input various groups of different feeding lengths.
- Equipped 80 Ton high precision and high speed punch press
- Punch press adoptsthe combined type air operated friction clutch.

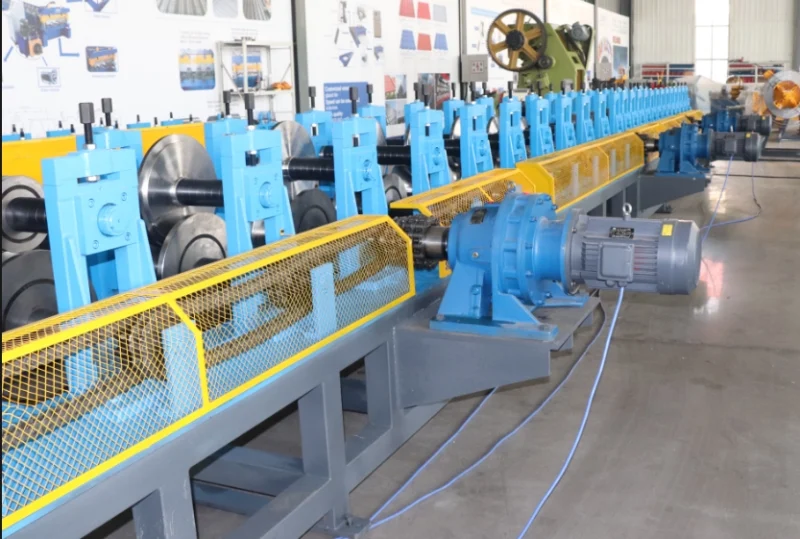

Pallet Column Roll Forming Machine
- H beam welded as the machine base, Milled steel plate on the top surface,
- Iron Cast Roll Forming Stands fixed on the top surface with position key to be high precised.
- Gear Box transmission
- The operation side of the machine can be adjustable for different width of columns . Controlled by PLC.
- All the bearings are NSK Ball Bearings
- Side rolls will be assembled between roll forming stands to form the edge radius

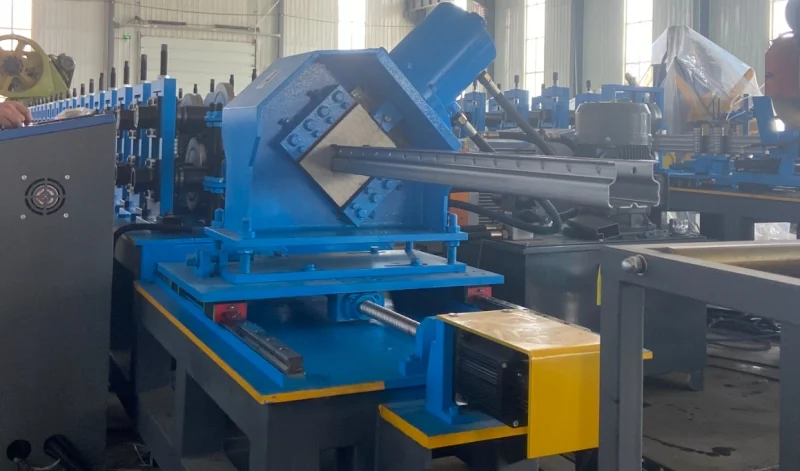

- Servo tracking cutting saw to enlarge the line speed. And saw cutting is suitable all the sizes of P beams
- Mounted with lubrication system
- Mounted with straightening device to ensure the output beams be straight
