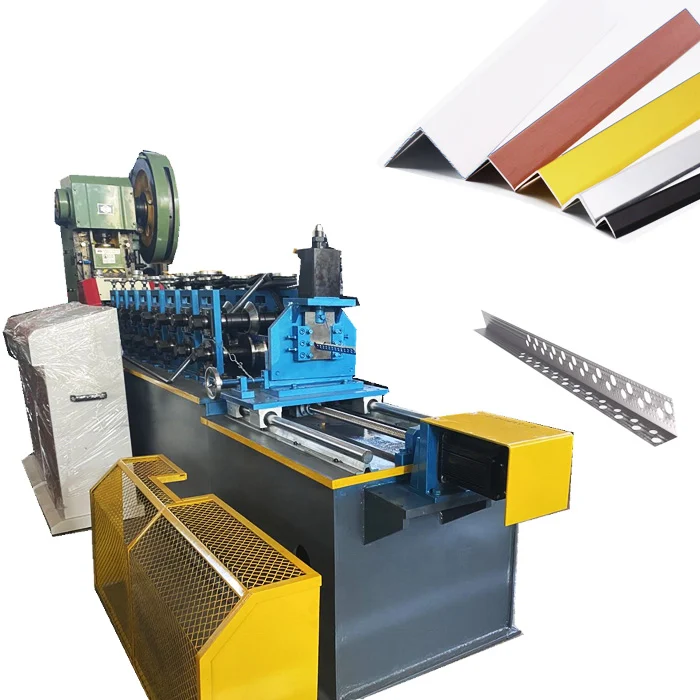

Fully Automatic Mild Steel Slotted Angle Roll Forming Machine Slotted Angle Shelving Making Machine

Fully Automatic Mild Steel Slotted Angle Roll Forming Machine Slotted Angle Shelving Making Machine


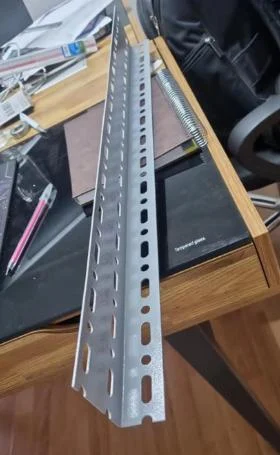

DRAWING FOR REFERENCE
Packing list for wall angle forming machine Part 1 3 T manual decoiler set 1   Part 2 Punching system set 1   Part 3 Coil feeding & Leveling system set 1   Part 4 Roll forming system set 1 Gear transmission Part 5 Hydraulic cutting system set 1   Part 6 PLC control station set 1 Delta brand Part 7 Hydraulic system set 1   Part 8 Product collect table set 1 Manual/3m length Part 9 Tools & Operation Manual set 1

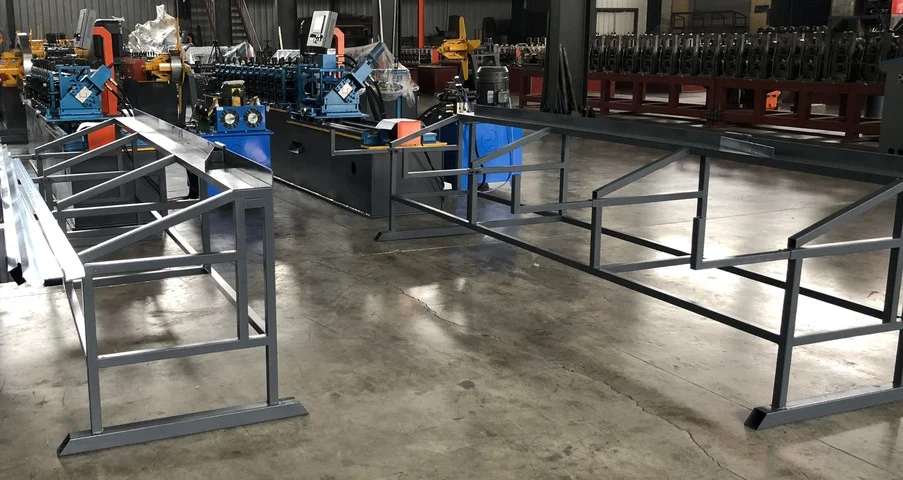

The work flow for wall angle forming machine

Technical parameters

Series	Details	Parameter
Product	Raw material	Galvanized steel
	Material thickness	1.0-2.0 mm
	Cutting length	Adjustable
	Yield Strength	≤235Mpa

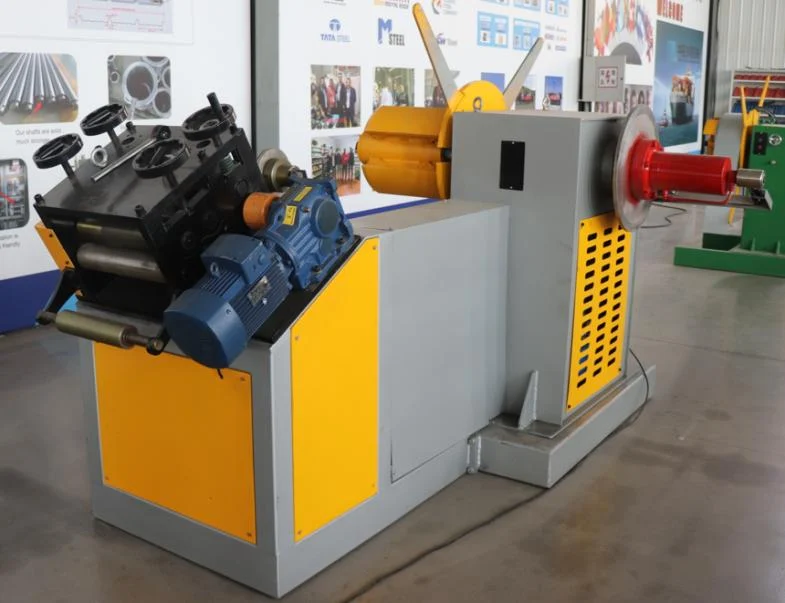

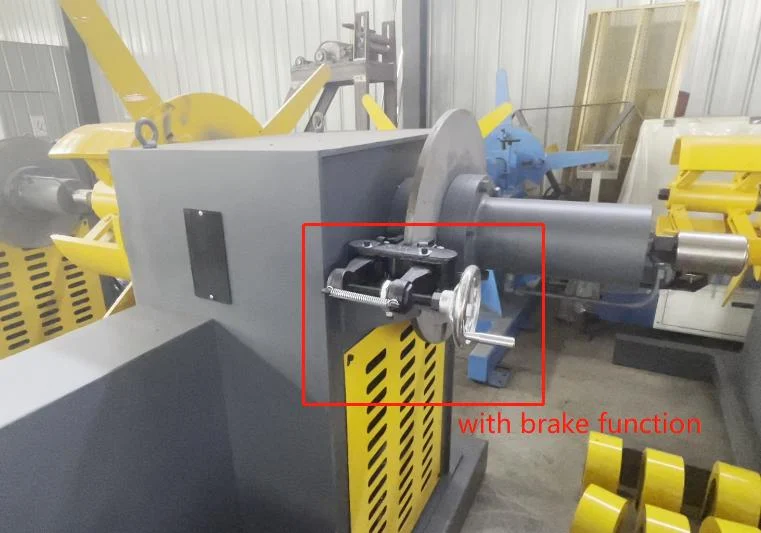

Part 1: Decoiler
Decoiler	Work type	Passive type
	Loading capacity	3 Tons
	Coil inner diameter	450-550 mm (adjustable)
Part 2: Punching System

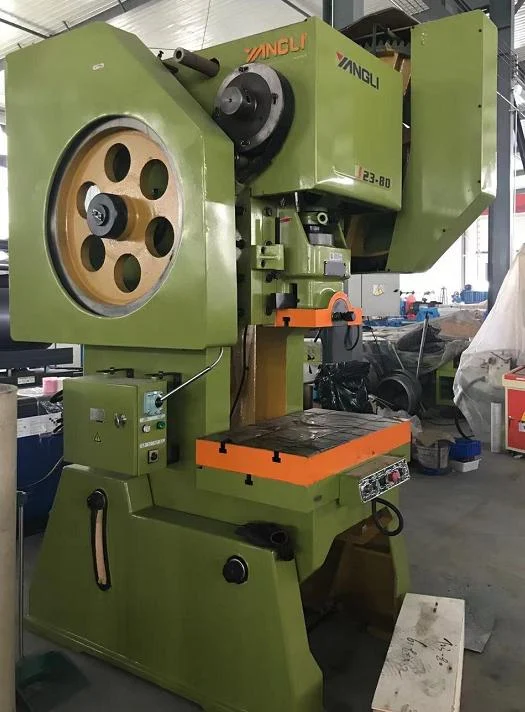

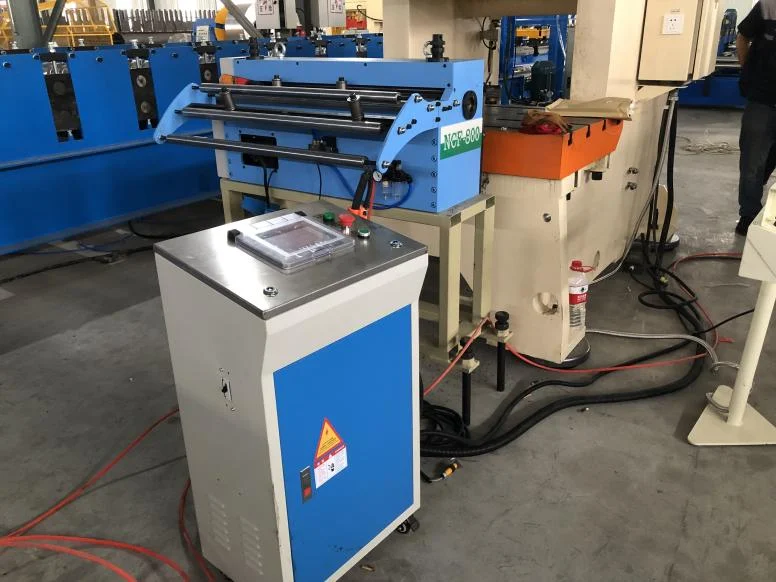

Punching machine   Servo feeder Type: model -200 Servo motor driving power:1.5 kw Control system: by PLC Feature: high precision, high speed   Punching machine Pressure: 45 TON Yangli brand (Chinese best brand) Power : by Mechanical Mold material: Cr12 Work speed: 6 m /min

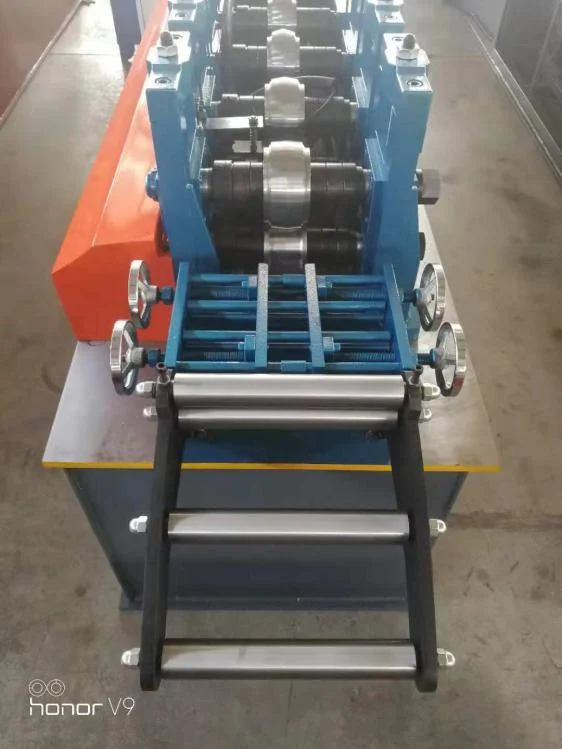

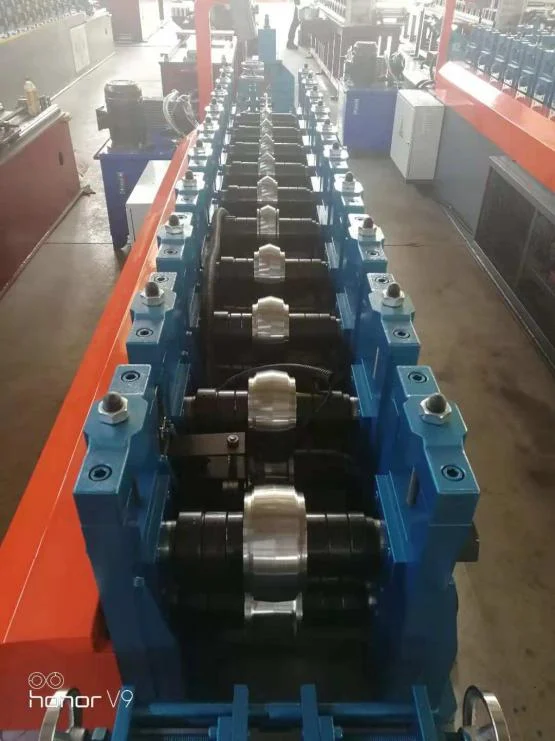

Part 3&4: Roll forming system
Roll forming system	Rolling shaft	Shaft material: 45# steel
		Shaft diameter: 60 mm
		45# steel with heat treats and hard chrome plated on the surface
	Roller	Roller material: GCr12MoV
		Quenched treatment 56-58°C
	Size adjustment	Adjust the spacers manually
	Rolling station	10 stations
	Work speed	0-20 m/min
	Machine frame	Vertical arch frame structure
	Machine body	steel plate welded with grinding
	Bearing	Chinese famous brand Harbin
	Work power	11 kw
	Transmission	Gear
	Hydraulic pump station is with cooling device
Part 4: PLC control system
Control system	Frequency brand	Delta (original)
	PLC brand	Delta (original)
	Screen type	Touch screen & buttons
	Screen language	English/Chinese/Arabic
	Encoder	Omron
	Low pressure electrical part brand	Schneider
	Function	Automatic length and quantity measurement Stop control switch, to ensure the safety of production Control station: Used to control product length and quantity, automatically cutting to length and stop when required quantity is achieved.

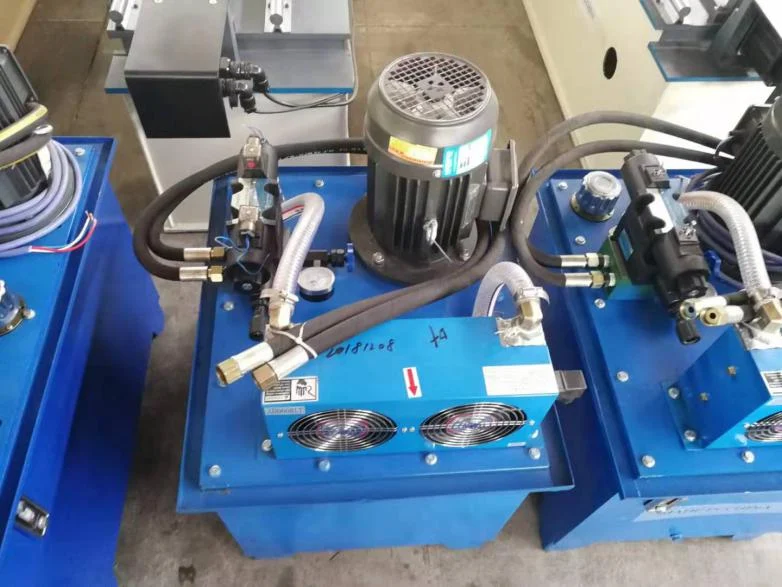

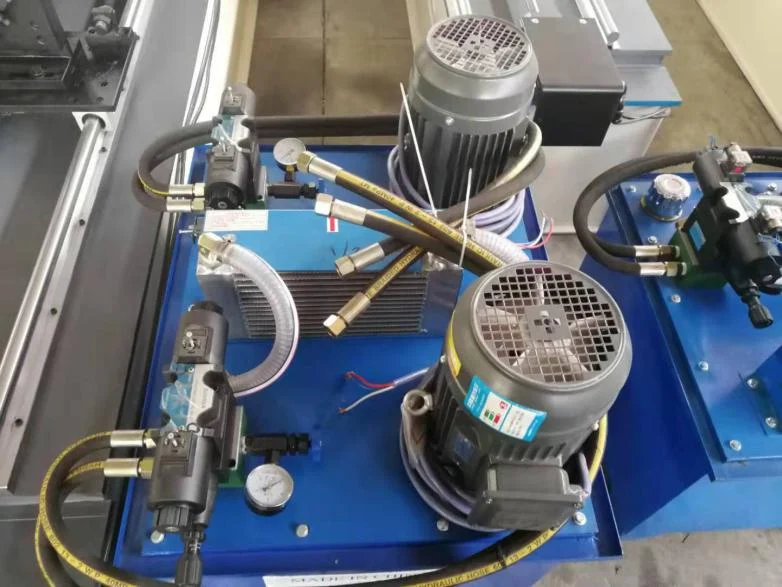

Part 5: hydraulic system
Hydraulic system	Hydraulic system brand	YUKEN standard (made in China)
	Work type	Hydraulic running cutting
	Driving method	By pillar type Cylinder
	Hydraulic motor power	4 kw
	Cutter material	Cr12 mold steel with quenched treatment
	Cutting length tolerance	±1mm/3m
	Cutting feature	Hydraulic cutting after forming, no distorting or wasting. High level safety factor. With oil cooling down system to protect the machine and fasten the shearing speed
Part 6: product collect table
Product table	Length	3 meters
	Width	0.5 meter (adjustable)
	Material	Steel bar welded
