The Surface Mount Steel Fire Extinguisher and Hose Cabinet Machine from ZTRFM is a fully automated solution designed to manufacture high-quality fire safety cabinets for commercial kitchens, schools, hospitals, restaurants, and other facilities. Our Electric Cabinet Box Roll Forming Machine is purpose-built to deliver consistent, high-quality metal enclosures for electrical cabinets, distribution boxes, control cabinets, and fire safety cabinets. By combining a multi-stage roll forming structure with synchronized punching and bending, the machine actively ensures each panel maintains flatness, precise 90° angles, and tight edge alignment. As a result, manufacturers can achieve excellent sealing performance, which effectively protects internal electrical components from dust, moisture, and external impact. Moreover, the integrated forming process reduces deformation risks and eliminates burrs, allowing finished cabinet parts to meet strict international standards such as ISO, ASTM, and DIN.
Premium Cabinet Features

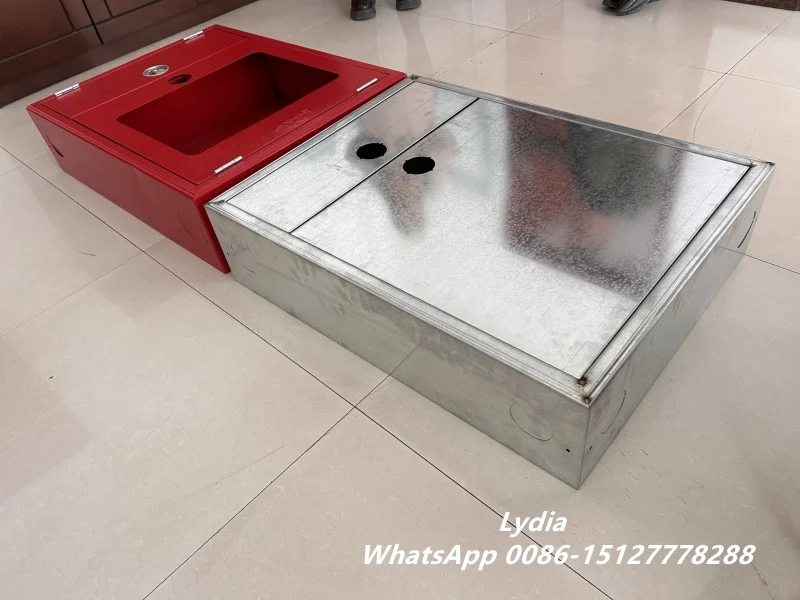

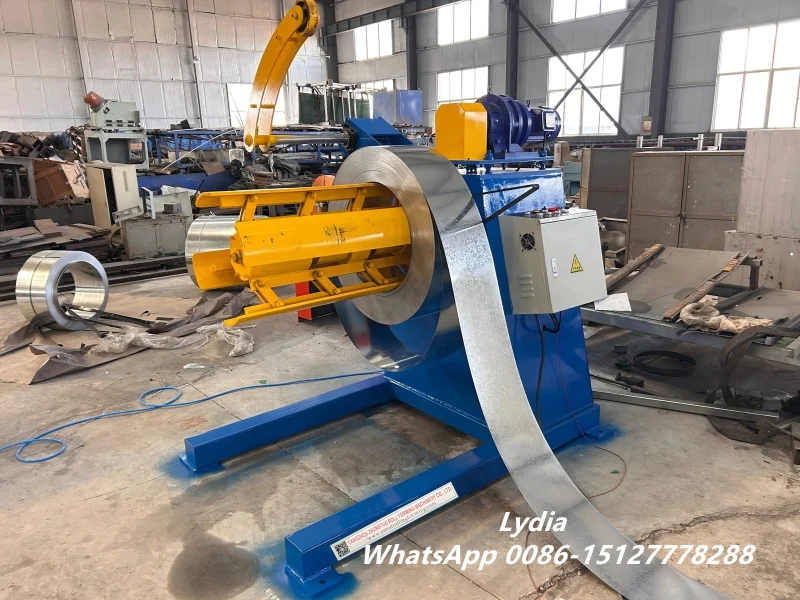

To support demanding production schedules, this machine operates with a fully automated workflow that includes uncoiling, leveling, forming, punching, cutting, and stacking. Thanks to its servo-driven system and flying shear cutting technology, it maintains continuous operation without stopping for cutting, significantly improving throughput. In practical terms, manufacturers can reach stable production speeds while reducing labor dependency by more than half. Consequently, it becomes an ideal solution for large-scale electrical cabinet projects, fire safety equipment manufacturing, and industrial enclosure production.Our machine produces surface-mount steel fire extinguishers and hose cabinets with superior durability and design flexibility. Standard cabinets feature cold-rolled steel construction with a white powder coat finish. Optional features include:
- Rolled or square edges
- Engraved metal or etched glass doors
- Custom finishes to match your project requirements

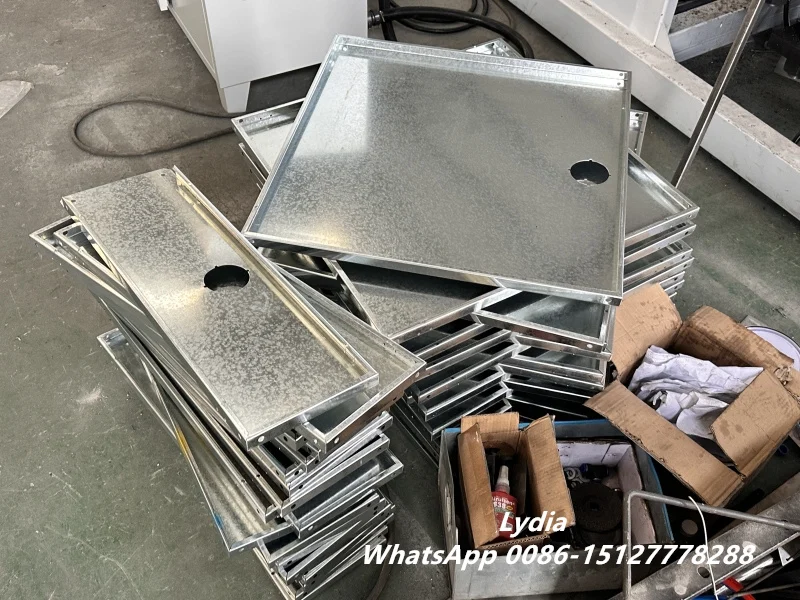

Dual bending stations and automated conveyor for fire safety cabinet doors
High-Precision Feeding and Punching
In addition to efficiency, the machine prioritizes precision through an advanced PLC control system paired with high-accuracy encoders. Operators can easily set production parameters such as length, punching positions, and batch quantities via a user-friendly touch screen interface. Meanwhile, the system continuously monitors performance and automatically adjusts operations to maintain dimensional tolerances within ±0.3mm. This level of control ensures that every cabinet panel—whether for electrical use or fire extinguisher housing—fits perfectly during assembly. Furthermore, built-in fault detection and alarm functions enhance operational safety and minimize downtime.The machine integrates a servo feeding system with DELTA motors to ensure precise material positioning. Its hydraulic cantilever punching device handles multiple stations simultaneously, producing accurate holes and notches in cabinet doors. A sensor system monitors the production line in real-time. If an irregularity occurs, the system automatically stops the punching process, protecting the equipment and maintaining consistent quality. This feature makes the machine both reliable and safe for continuous operation.
Hydraulic punching and servo feeding system for steel door panel production

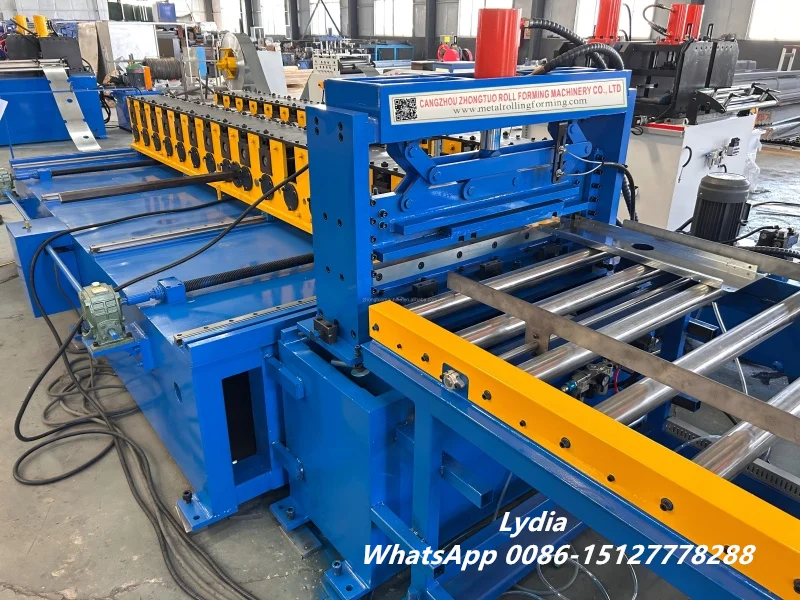

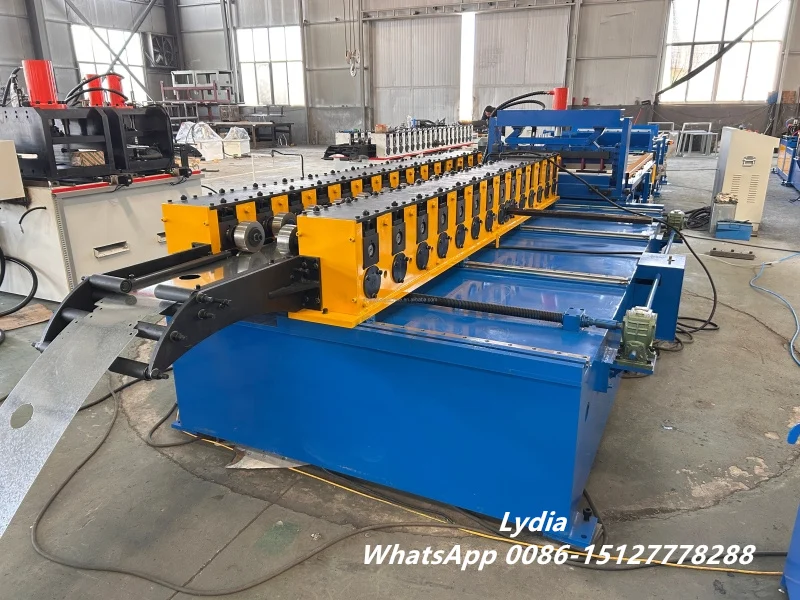

Roll Forming and Hydraulic Cutting
The machine adopts a reinforced welded steel frame that undergoes annealing treatment to improve structural stability. Because of this, it resists deformation even under long-term, high-load production conditions. At the same time, high-quality components such as hardened rollers, precision gearboxes, and durable transmission systems contribute to smooth, low-noise operation. Core electrical parts from globally recognized brands ensure consistent performance, helping manufacturers maintain stable output while reducing maintenance frequency and operational costs.The main roll forming unit uses 45# steel shafts and GCR15 rollers for long-lasting performance. With 14 roller stations, the machine forms panels at a speed of 300 pieces per hour. After forming, a hydraulic post-cutting system trims panels and creates precise step features. The channel steel knife holder ensures smooth, burr-free cuts and a stable cutting process, which is essential for producing fire extinguisher cabinet doors that fit perfectly.
Automated Conveying and Dual Bending
After forming and cutting, panels move automatically to the electric conveyor table and then to dual bending stations. Pneumatic clamping devices hold panels securely during bending, shaping the two ends of each cabinet door accurately. A production receive table makes it easy to collect finished products, reducing manual labor and improving worker safety. This fully integrated system ensures consistent door quality and efficiency throughout production.Advanced Hydraulic and PLC Control Systems
The hydraulic station features:- Dual-motor configuration for higher power and reliability
- Independent cooling fan to maintain optimal oil temperature
- Real-time thermometer for precise monitoring
- Optimized noise control for a better workshop environment

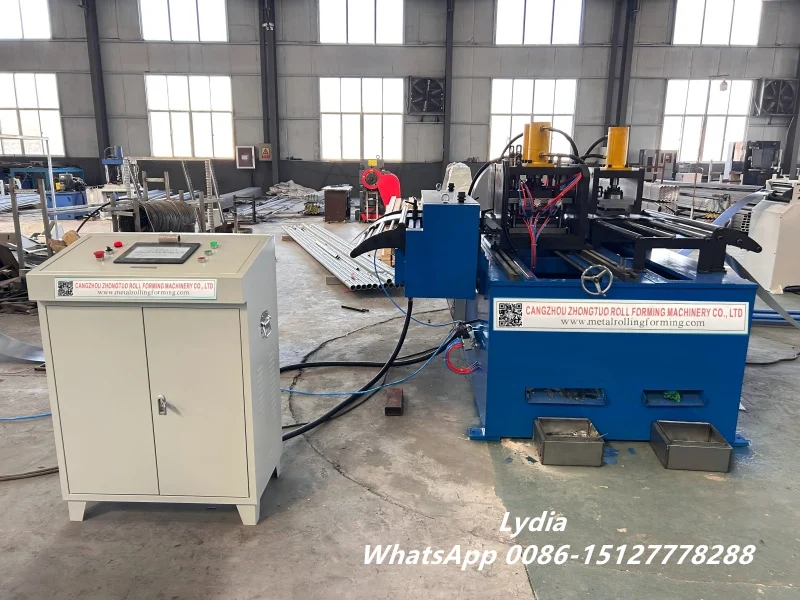

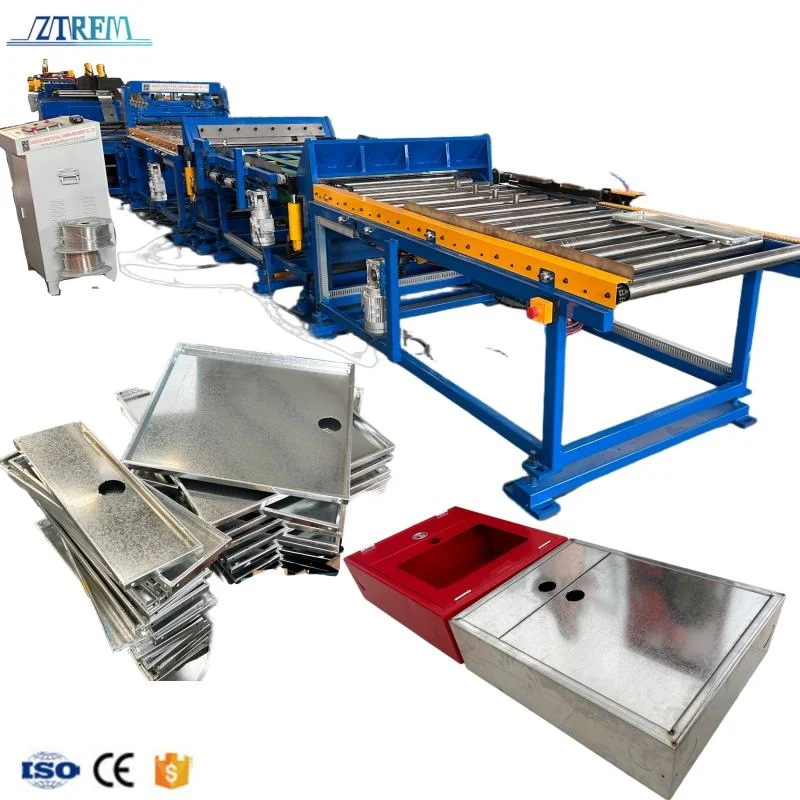

ZTRFM surface mount steel fire extinguisher cabinet roll forming machine[/caption]

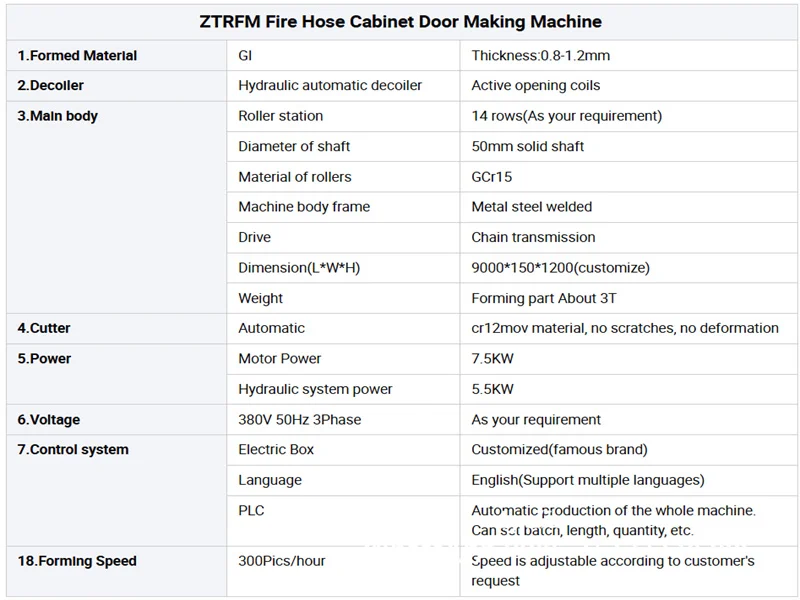

Technical Specifications
