Z Beam Steel Shelving Machine Storage Shelf Z Beam Steel Rack Roll Forming Machine
Z Beam Steel Shelving Machine Storage Shelf Z Beam Steel Rack Roll Forming Machine
Z Beam Steel Shelving Machine Storage Shelf Z Beam Steel Rack Roll Forming Machine Storage Shelf Z Beam Steel Rack Machine is a unique low profile shelving sy
Detailed Content

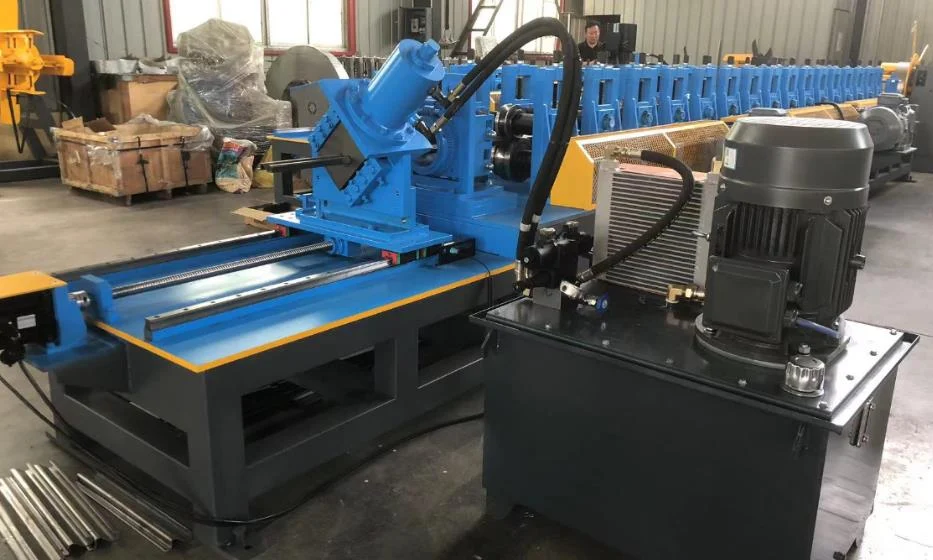

Z Beam Steel Shelving Machine Storage Shelf Z Beam Steel Rack Roll Forming Machine

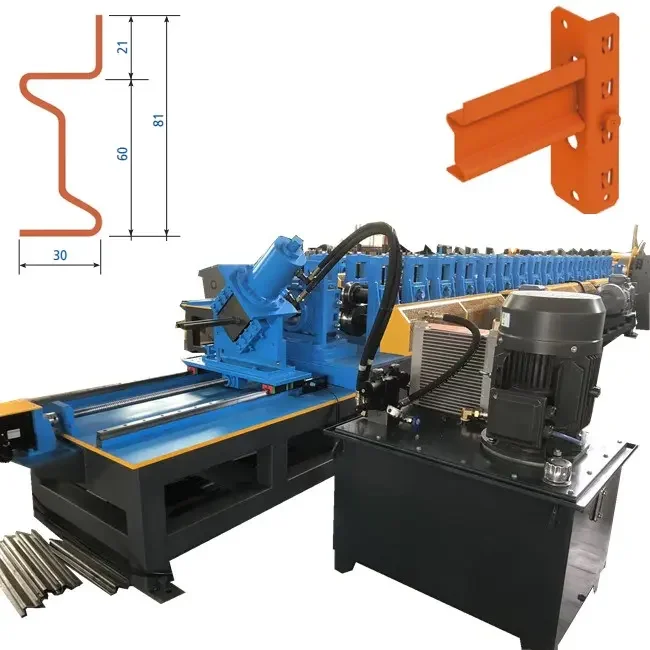

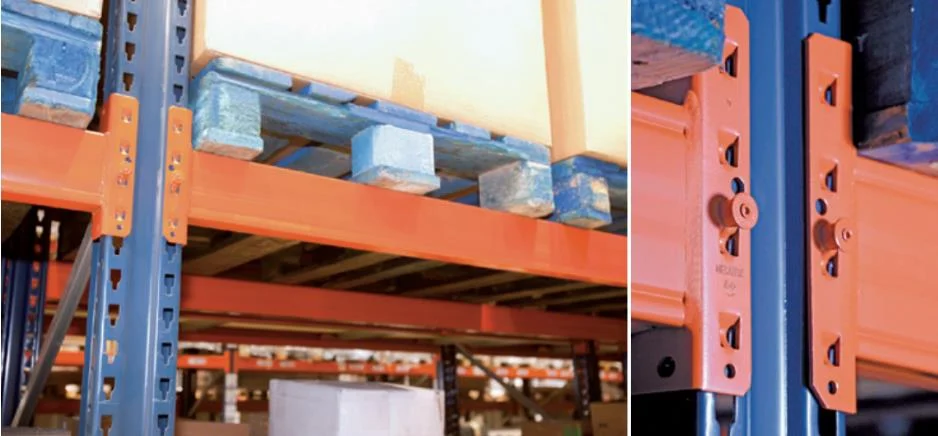

Storage Shelf Z Beam Steel Rack Machine is a unique low profile shelving system that produce special Z- shaped that reduces the shelf height and enhance the clearance between shelves. It is low profile bolting system. Its unique Z beam design provides high storage capacity and helps in particle board decks to sit flush with the top of beams. Z Beam Storage Rack Machine gives you a very attractive low profile light duty shelving system at a very reasonable cost.
Advantages of Z beam Rivet Shelving rolling forming machine
1.Top accuracy, the accuracy could be controlled within 0.5mm.
2.Before punching, speed is faster and lower producing cost.
3.Use molding frame, when higher speed, it can also work steady.
4.Big hydraulic station with cooling fan for powerful shearing.
5.Servo motor shearing to enhance the working speed.
6.With the protection cover for safety.
If you are interested in this machine, welcome to inquiry. Below is Z Beam Steel Shelving Machine details:
| Z Beam Roll Forming Machine | ||
| 1.Formed Material | GI,AI | Thickness:2 to 3mm |
| 2.Decoiler | Automatic decoiler | Manual decoiler(will give you as free） |
| 3.Main body | Roller station | 20 rows(As your requirement) |
| Diameter of shaft | 80mm solid shaft | |
| Material of rollers | Gcr12mov | |
| Machine body frame | 500 H steel | |
| Drive | Chain transmission | |
| Dimension(L*W*H) | 9500*1600*1600(customize) | |
| Weight | 6T | |
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation |
| 5.Power | Motor Power | 7.5KW |
| Hydraulic system power | 7.5KW | |
| 6.Voltage | 380V 50Hz 3Phase | As your requirement |
| 7.Control system | Electric Box | Customized(famous brand) |
| Language | English(Support multiple languages) | |
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |
| 18.Forming Speed | 15-20m/min | The speed depends on the shape of the tile and the thickness of the material. |
