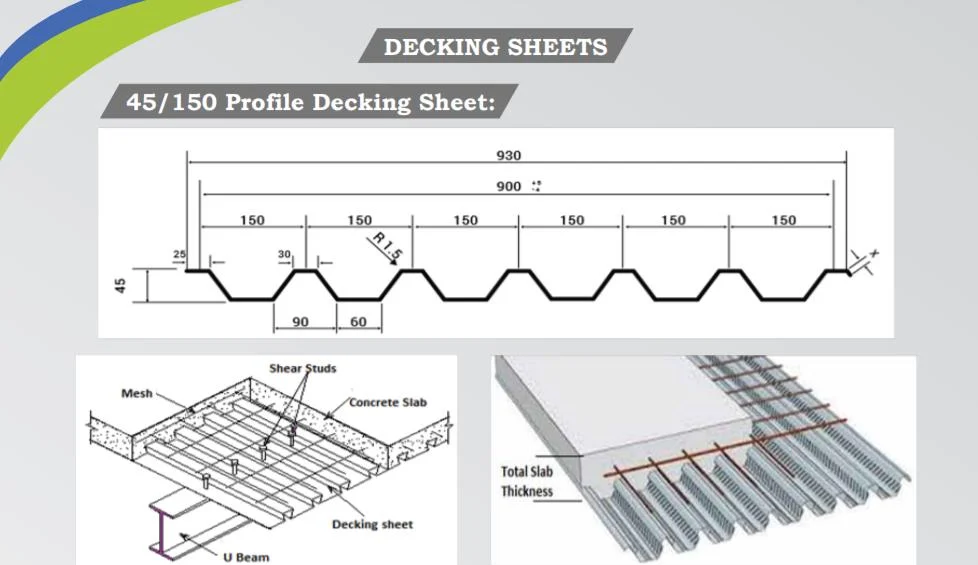

This 45-150 GI and Alu-Zinc coated steel profile floor Decking Sheet is very popular in middle east market, especially in UAE OMAN BAHRAIN KUWAIT market. This Gi Floor composite Decking Machine is also produced for our UAE client.
Detailed Content
Gi Floor composite Decking sheet roll forming machine 45/150 floor panel roll former
This 45-150 Gi Floor Decking Sheet is very popular in middle east market, especially in UAE OMAN BAHRAIN KUWAIT market. This Gi Floor composite Decking Machine is also produced for our UAE client, win positive feedbacks from him.

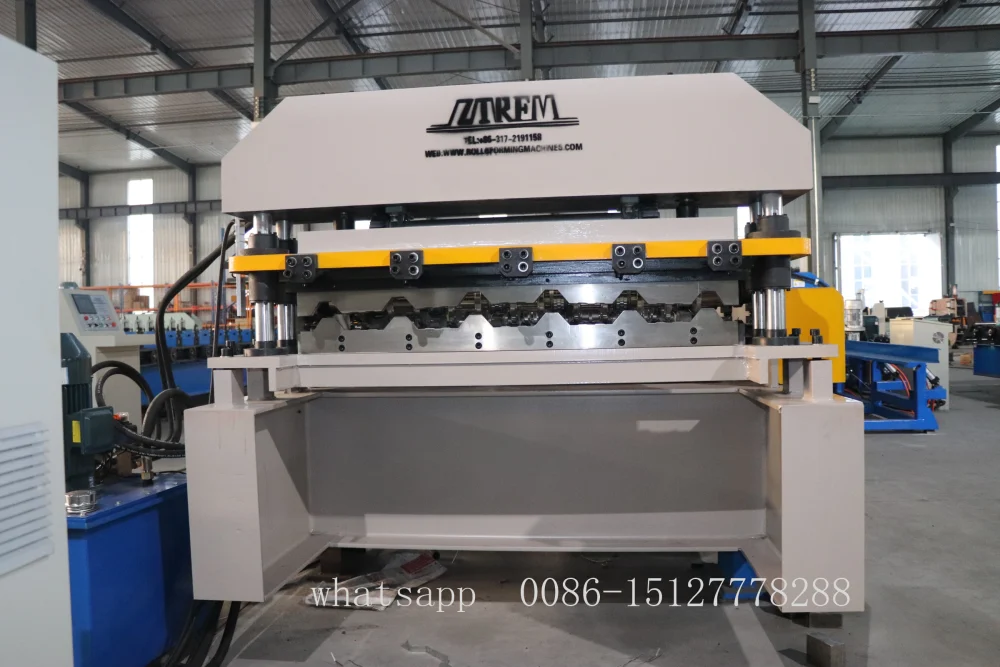

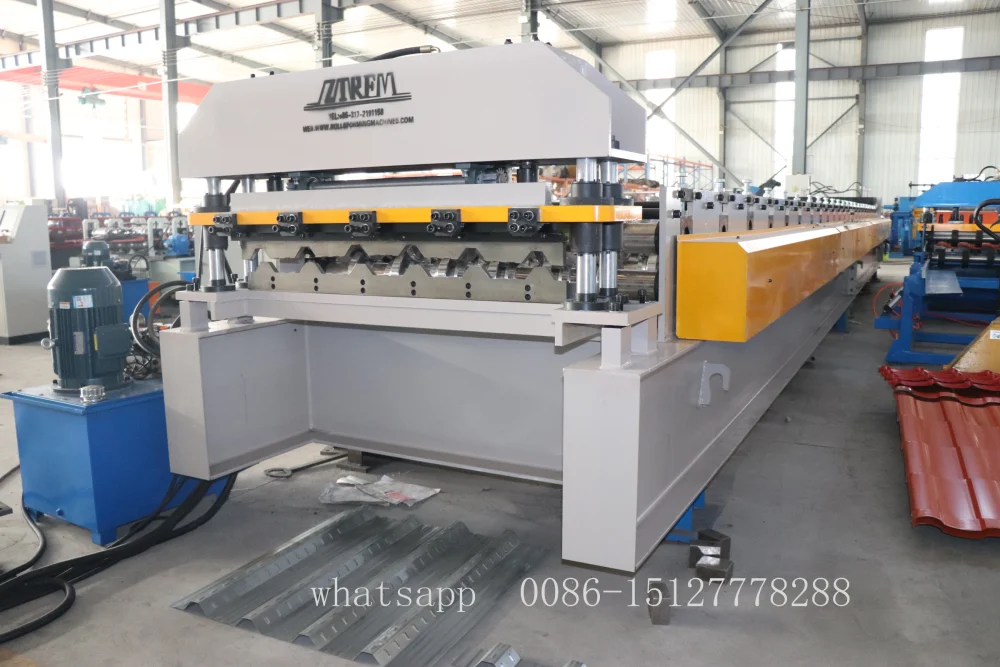

This machine is with pre-shearing device, can cut the feeding sheet automatically before roll forming, it can also save the material in case of any waste, the roller material is Gcr15, shaft material is 45# steel, our machine rollers are bigger than other suppliers, some rollers are with bearings inside to make all the rollers work in one line and produce beautiful deck sheet, also can prolong the machine using life.
Please check the details of the GI floor composite deck roll former details, if some point is not ok for you, we can do custom sized according to client's request.

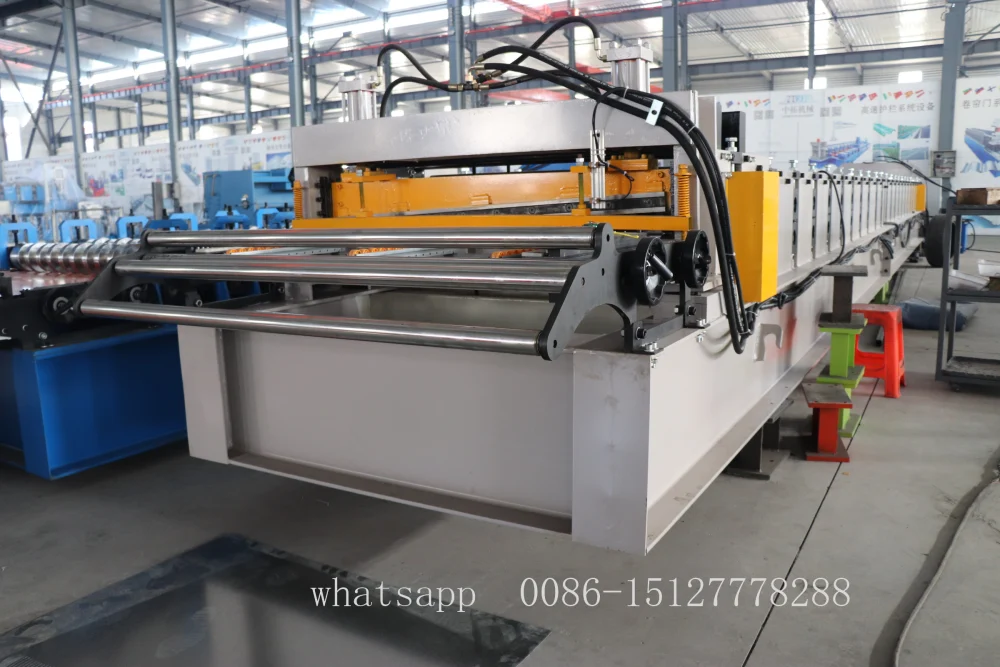

| Feeding device | the platform width is adjustable by hand wheel, have the bearing inside to protect the edge of the steel sheet. | |
| Rolling shaft |
Shaft Material: 45# steel, surface hard chromium plating. | |
| Shaft diameter: 90 mm | ||
| Tampering treatment, prevent deformed and improve the hardness | ||
| Roller |
Roller material: Cr 15 | |
| Chromed treatment (Cr thickness:0.05 mm), anti-corrosion,Increase hardness, ensure the precision and good abrasion performance | ||
| Rolling station | 31 stations | |
| Includes one set embossing rolling station | ||
| Work speed | 0-15 m/min | |
| Machine structure | Middle plate welded structure | |
| Steel plate thickness: 20mm | ||
| machine basic frame |
400# H steel welded with diagonal bracing inside | |
| The diagonal bracing can ensure the full set basic frame in the same horizontal level to prevent the sheet shift left or right. Meanwhile it can make sure the machine in a high stability when working. | ||
| Bearing | Chinese famous brand Harbin | |
| Work power | 15 kw *2 | |
| Brand: China famous brand | ||
| We adopt two motors driving on the transmission system because of the long rolling stations, it can balance the driving power and ensure all the rolling stations are in the same linear speed, to give the power more evenly to the machine | ||
| Roller spacer treatment | Anti rusty treatment | |
| Pull rod | Anti rusty treatment | |
| Transmission | Chain size: 1.5 inches | |
| Double chains driving |
