PU foam aluminum roller shutter door machine has been designed to continuously produce roller shutter door slats with PU or polyurethane insulated; the door slats or window blinds hinge each other horizontally as roller shutter.
Detailed Content
Roller shutter door aluminum with pu foam machine pu shutter door rolling machine
PU roller shutter slat door machine is ideal for the manufacturing rolling shutter slats with variable lengths and in large quantities. The alloy aluminum and galvanized zinc steel which is used to make slats have neat external appearance, even ripples, high utilization and strength. The PU or polyurethane foam insulated rolling shutter slats have good ability of heating preservation, compared to rolling shutter door slats and roller shutter door panels which have nothing thermal materials insulated.
The work flow for PU foamed roller shutter door machine

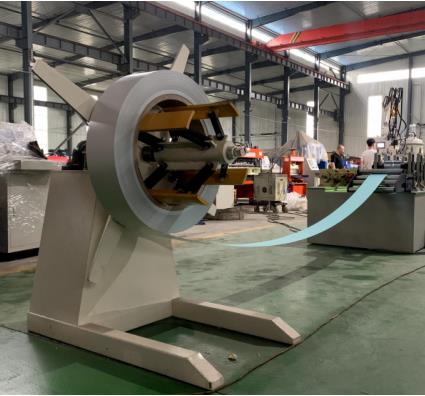

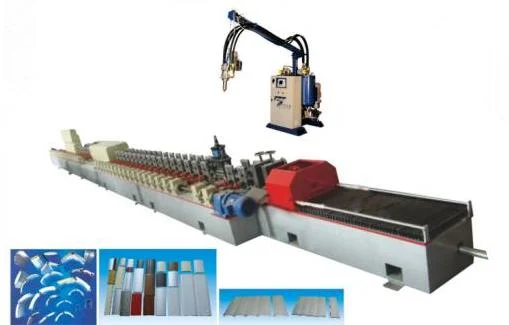

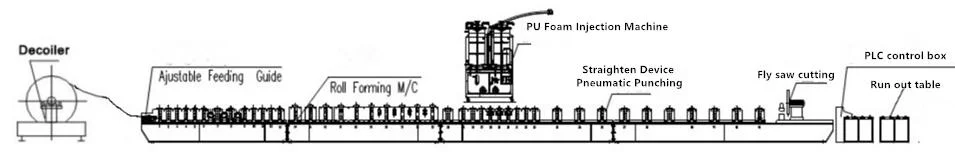

Manual Decoiler --- Feeding Guide --- Roll Forming --- PU Foam Injection Machine --- Insulation oven device --- Pneumatic Punching --- Servo Flying-saw Cutting --- Run out Tables

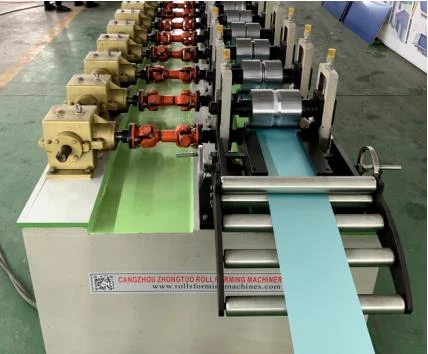

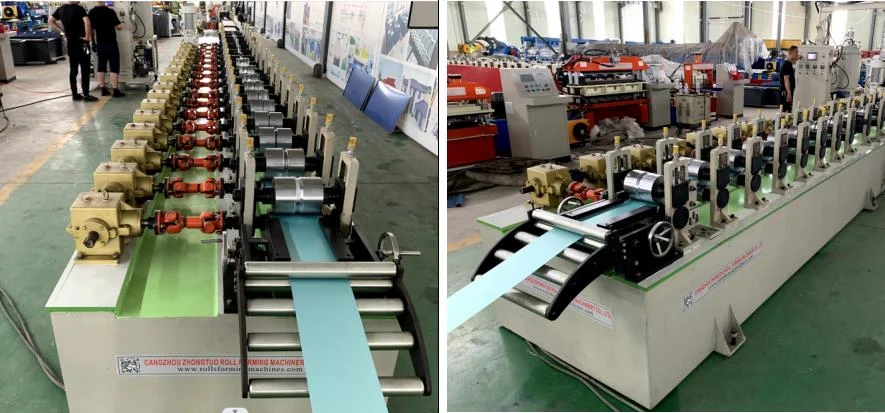

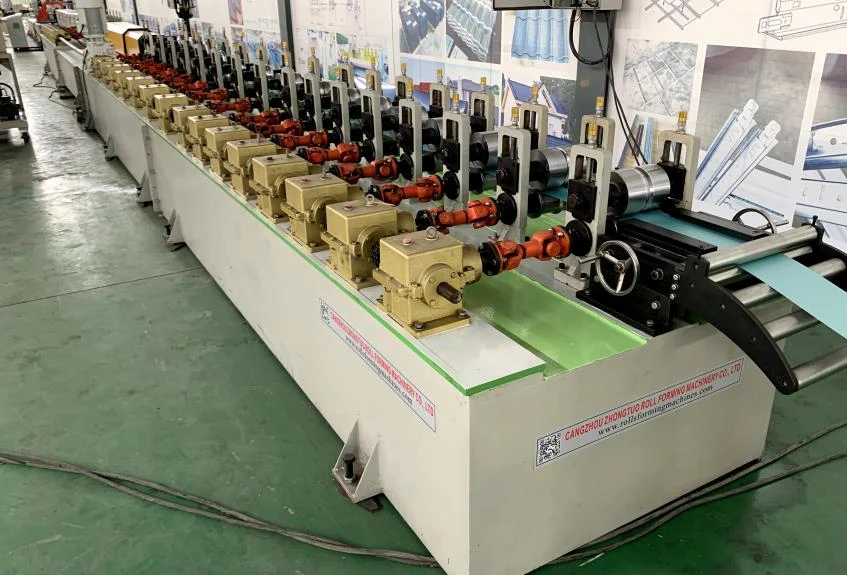

PU Shutter door roll forming system
| Rolling shaft | Shaft material: 40Cr, High grade 45# steel with heat treatment |
| Shaft diameter: 50 mm | |
| Tempering treatment | |
| Roller | Roller material: High grade GCr15 |
| Quenched treatment | |
| Rolling station | 23 stations |
| Work speed | 0-15m/min |
| Machine frame | Vertical arch frame structure |
| Machine body | steel plate welded with grinding |
| Bearing | Chinese famous brand Harbin |
| Work power | 7.5 kw |
| Transmission | Gear box with universal joint transmission system |

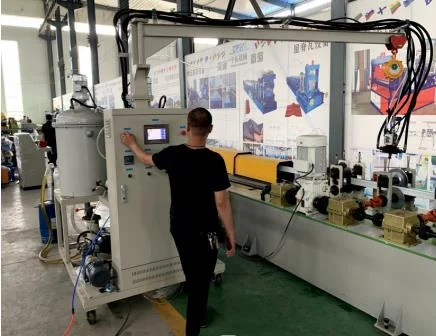

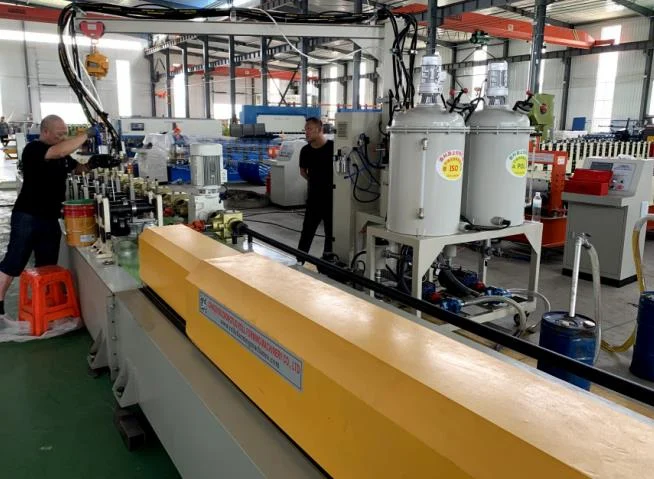

PU Foam Injection Machine
Motor power: total 7KW; 380V; 50HZ
Mixing pump quantity: 8g/Second
Density: 35 ~ 40 kg/m³
Mixing type: mechanical & automatic Washing: Automatic
Tank volume: 50 KG / tank. Both Poly and ISO
Brand of Foam machine: GREAT WALL.
Mixing head with one spare is included
Straighten Device (Insulation oven device)
Incubators are equipped before and after foaming to heat the material and help foaming, around 12m length.

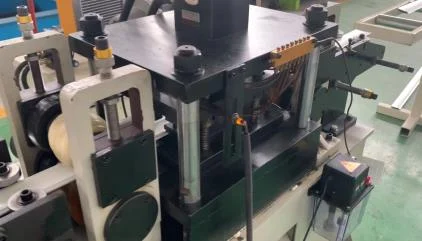

Pneumatic Punching
Structure: The punching machine is placed in the forming machine for online punching, and the length is fixed by the encoder. The punching speed can be verified, and the whole line speed can be improved.
Punching die: 1 pair Punching die material: Cr12MoV

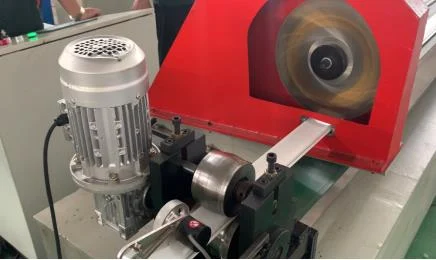

Servo Flying-saw Cutting
| Servo Power | 1.5KW |
| Cutting Power | 2.2KW |
Material of cut: Cr12Mov； Quench: HRC58-62
