Galvanized 0.7-1.5mm Floor Deck Roll Forming Machine Popular in Mexico 28 Groups Rollers

A metal deck roll forming machine

A metal deck roll forming machine,commonly referred to as a floor deck roll forming machine, is specifically designed by deck manufacturers for producing various types of metal deck flooring used in construction. Typically, these machines are optimized using computer software to ensure precision and efficiency in the production process. Our expertise lies in designing and manufacturing a wide range of steel floor plate decking roll forming machines. The metal decks produced by these machines are known for their high strength and durability, making them ideal for construction applications.

The primary distinction between floor decking and roof decking

Metal floor decking sheets, often referred to as composite metal floor decking, feature an embossing pattern along the sides at consistent intervals. This embossing helps create a strong bond between the concrete and the metal decking panel as the concrete sets. The primary distinction between floor decking and roof decking is that roof decking lacks this embossing pattern and is generally thinner in comparison.

Regarding the overlapping of metal decking sheets

Composite metal floor decks can be produced with two different types of side laps: the standard interlocking side lap and the screw-fastened side lap. The project’s design documents will provide details on the required side lap connection method. For more specific information, please refer to the drawing profiles below.

Profile drawing:

1.B-36 Formlok Description

• Deck Type: Composite Floor Deck
• Panel Type:  B-36 Formlok
• Available Gauges: 22, 20, 18, 16
• Rib Height: 1.5"
• Rib Distance (Pitch): 6" Pitch
• Available Lengths: 20'-2" to 35'-6"
• Width: 36"

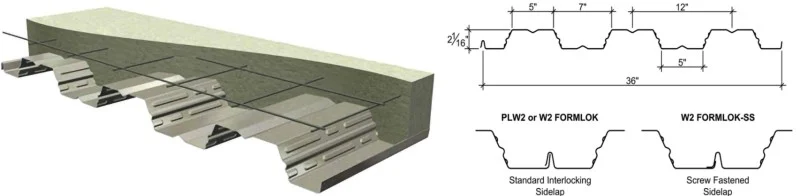

2.W2-36 Formlok Description

• Deck Type: Composite Floor Deck
• Panel Type: W2-36 Formlok™
• Available Gauges: 22, 20, 18, 16
• Rib Height: 2"
• Rib Distance (Pitch): 12" Pitch
• Available Lengths: 20'-2" to 35'-6"
• Width: 36"

A Form Deck Floor Decking Machine is used to produce steel deck flooring, which is known for its consistent quality and appealing appearance, particularly when the appropriate shop and field-applied coatings are used.

Steel deck floors offer numerous advantages, such as high strength, low weight, cost-efficiency, and economic value. The combination of structural strength relative to lightweight and shear capacity, versatility, recyclability, and easy installation makes steel decking an excellent choice for architects, building owners, and engineers.

The metal deck making machine，mainly component as belows:

• 10 Ton Hydrulic Uncoiler with Coil Car

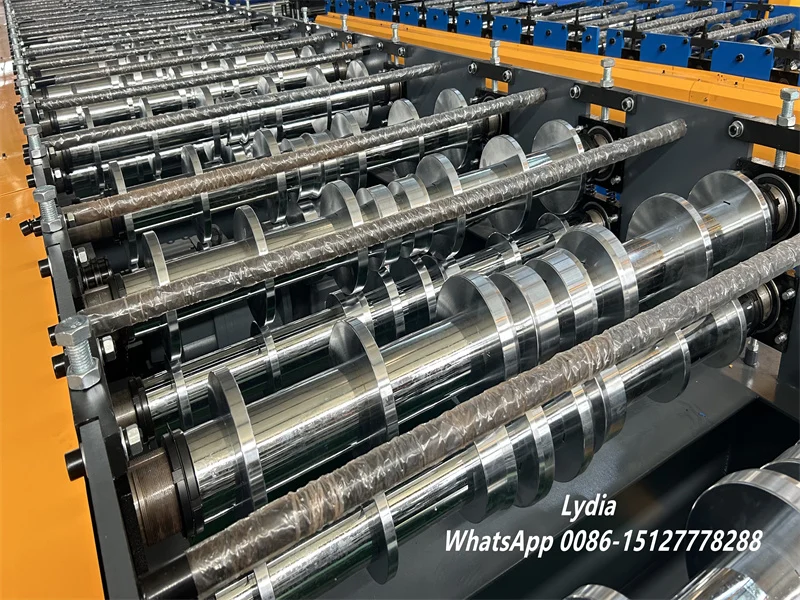

• Main Roll Forming Machine Part( Including feeder and guider, roll former, cutter)
• Controlled Box
• Hydraulic Station
• Collection Table

The technical specifications of the B Deck roll forming machine Machine：

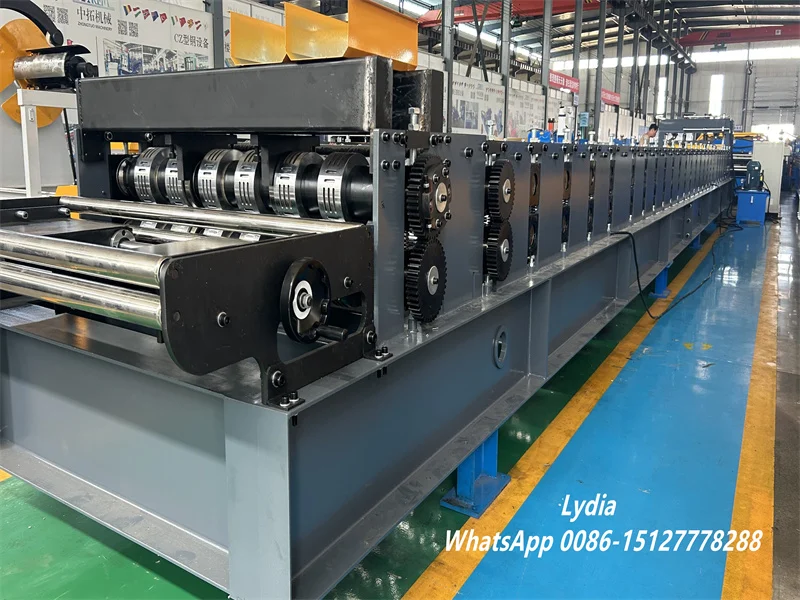

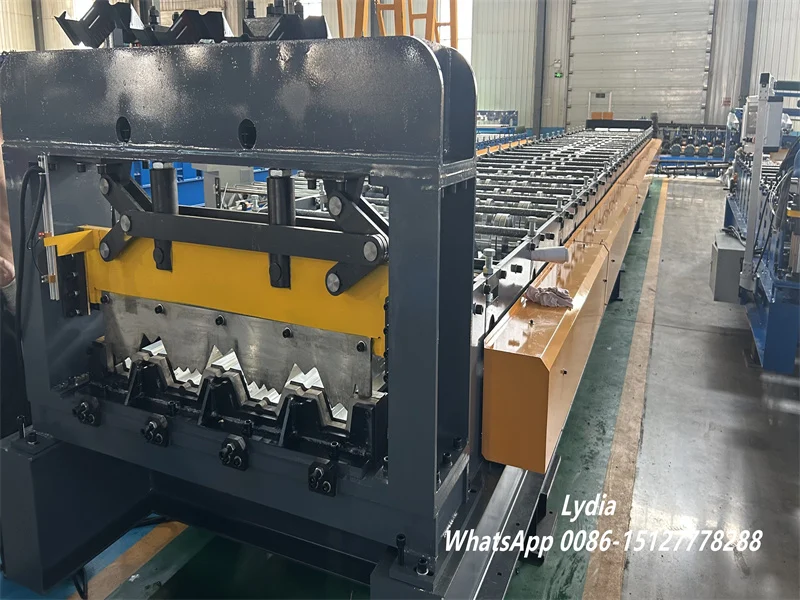

More pictures of the machine：
