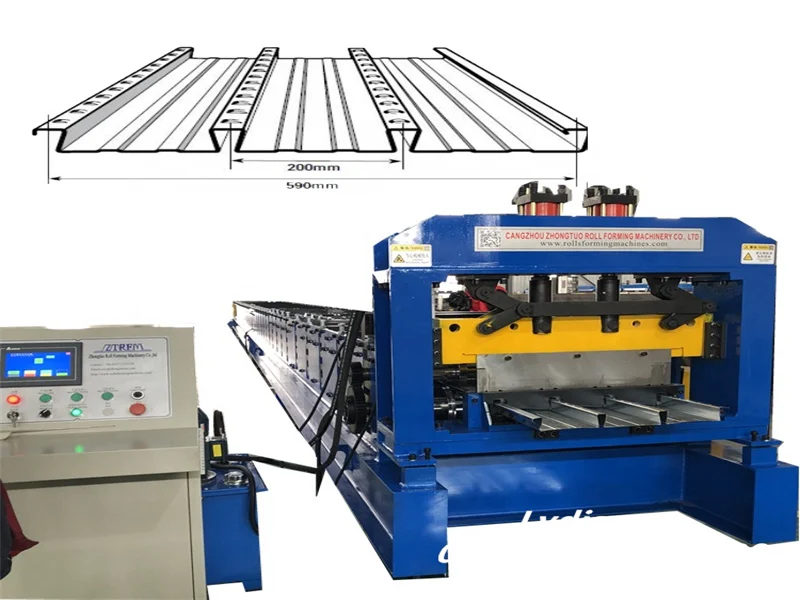

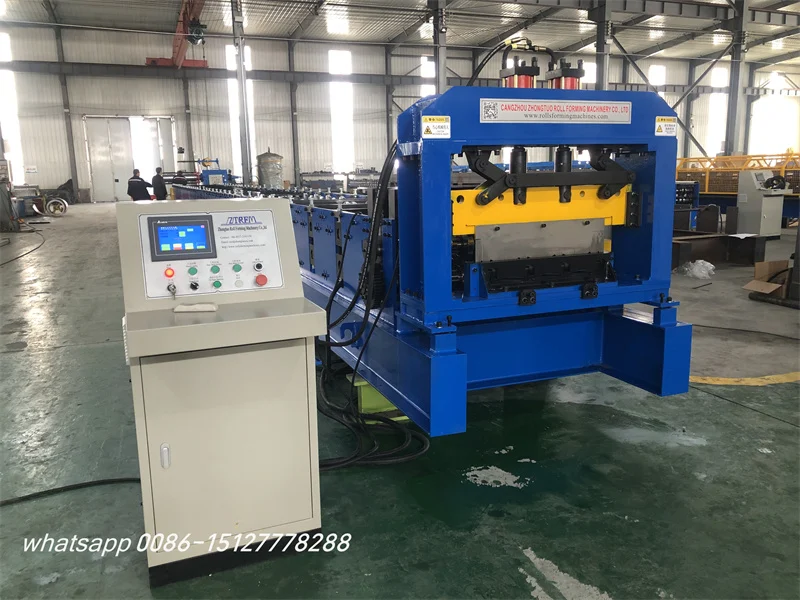

The High Quality Dovetail Steel Deck Machine and 1.5 Inch Composite Steel Deck Machine

The Composite Steel Deck Machine produces permanent metal formwork for cast-in-place concrete slabs. With engineered embossments that mechanically bond with the concrete, composite decks boost slab shear and bending strength while eliminating traditional wood forming—slashing material waste, labor, and cycle times.

Benefits of Composite Metal Floor Decking
Superior Composite Action: Embossments (1.5″, 2″, 3″ depths) grip concrete as it cures, dramatically increasing floor system stiffness and load capacity.
Zero Net Weight Increase: Embossing doesn’t add dead weight to the decking panel, avoiding costly structural upsizing.
Permanent Form work: Eliminates wood form installation and teardown—reducing construction schedule by up to 30%.
Flexible Depth Options: Select from 1.5″, 2″, or 3″ embossment depths to meet specific span and load requirements.
1.5″ composite floor deck panels Machine
Primarily used as a form for concrete slabs, 1.5″ composite floor deck panels Machine feature raised embossments that interlock with the cured concrete, creating a solid mechanical bond. When combined with reinforcing elements such as rebar or welded wire mesh, they significantly enhance slab strength. Acting as permanent formwork, these steel decks both support the structure and eliminate the time and expense required for traditional wood forming.


2” composite floor deck panels Machine  serve primarily as permanent formwork for concrete slabs. Featuring embossed ribs that mechanically interlock with the poured concrete, these steel decks are typically reinforced with rebar or welded wire mesh to create a robust bond. By combining structural support and positive reinforcement, composite steel decking removes the need for traditional wood forms—saving both time and labour.


3” composite floor deck panels Machine  serve as permanent forms for cast-in-place concrete slabs. Their embossed ridges lock into the curing concrete—often reinforced with rebar or welded wire mesh—to create a unified, high-strength bond. Because the steel deck remains in place, it provides continuous reinforcement and removes the labor and material costs associated with traditional wood formwork.

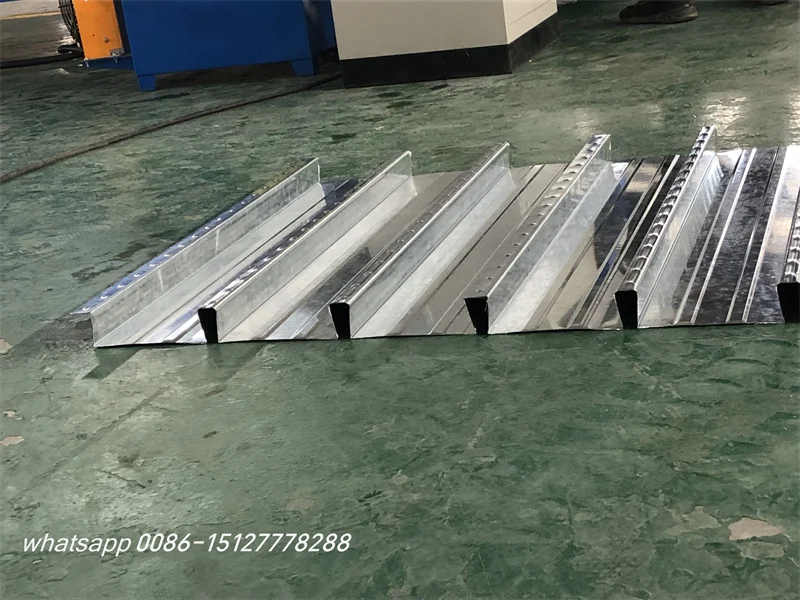

2.0″ Dovetail Metal Deck Machine
The dovetail roof and floor deck merges the load-bearing strength of structural decking with the clean, linear plank aesthetic. Its distinctive profile permits longer spans at reduced slab depths, allowing more levels within the same building height. In addition, dovetail decking excels in acoustics: its flute geometry accommodates more sound-absorbing insulation than standard profiles, which is why it’s widely specified for gymnasiums, auditoriums, and theaters.


3.5″ Dovetail Metal Deck
As a 3.5″-deep structural solution, this deck provides a clean, finished appearance in exposed ceilings while permitting extended spans with minimal overall depth. The dovetail roof and floor deck combines the robustness of structural metal with the sleek, linear look of plank-style panels Machine. Its distinctive geometry allows you to cover greater distances at reduced deck thickness—ideal for maximizing usable floor-to-floor height in multi-story buildings. Moreover, the flute-shaped channels accommodate more sound-absorbing materials than standard profiles, delivering superior acoustic performance for applications like gymnasiums, auditoriums, and theaters.



Technical Parameters for Roll Forming Line
Product Sheet
