Light duty cable tray machine with cable extension making also allow you to do the cable tray production and cable extension production fully automatically.
Detailed Content
Light duty cable tray machine with cable extension making also

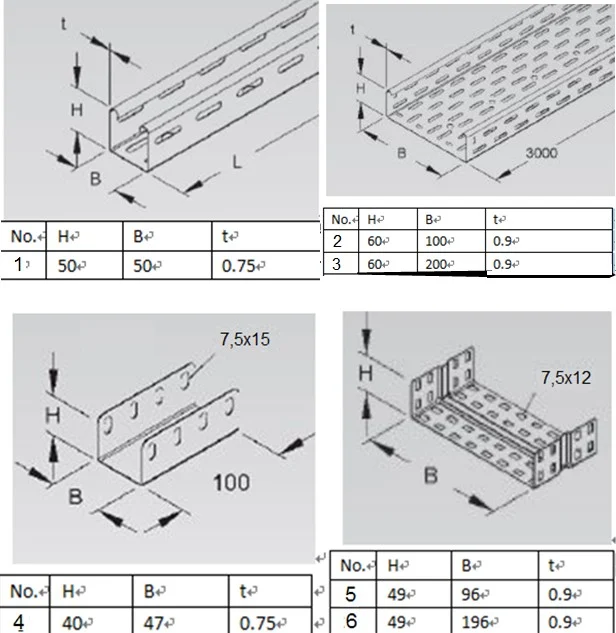

Light duty cable tray machine with cable extension making also support the width of cable from 50 to 200 supports the mateiral thickness from 0.8 to 1.5mm. This one cable tray could either make the cable tray machine and the cover machine. For the sizes changing, you need to know how to change the spacer and punching molds. But for the shearing system, you do not need to do any type adjustment. Here are some sizes and drawing of cable tray for your reference:
Cable tray: C50x50x3000; C60x100x3000; C60x200x3000mm;
Cable tray extension: U40x47x100; U49x96x100; U49x196x100 mm;

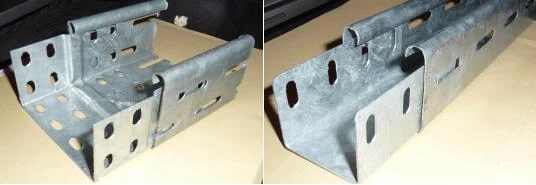

The following pictures are about the cable tray installation pictures for your reference:

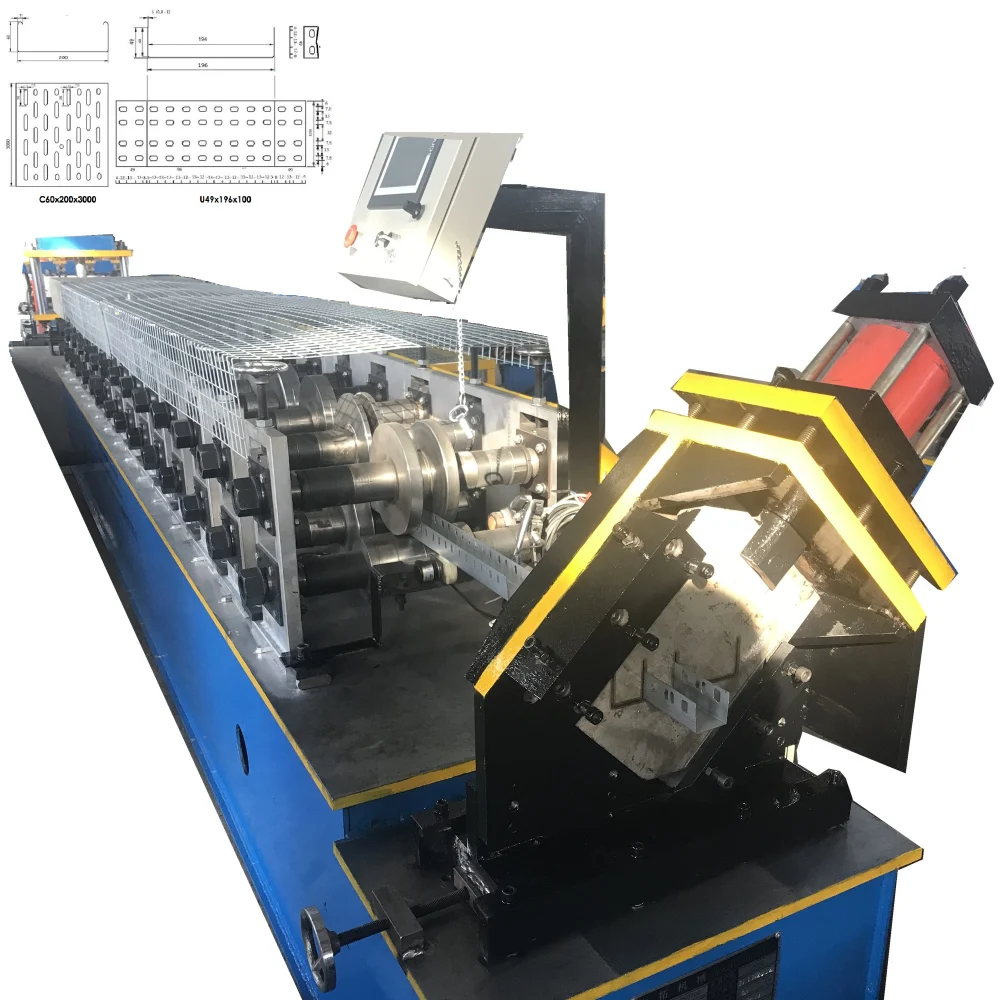

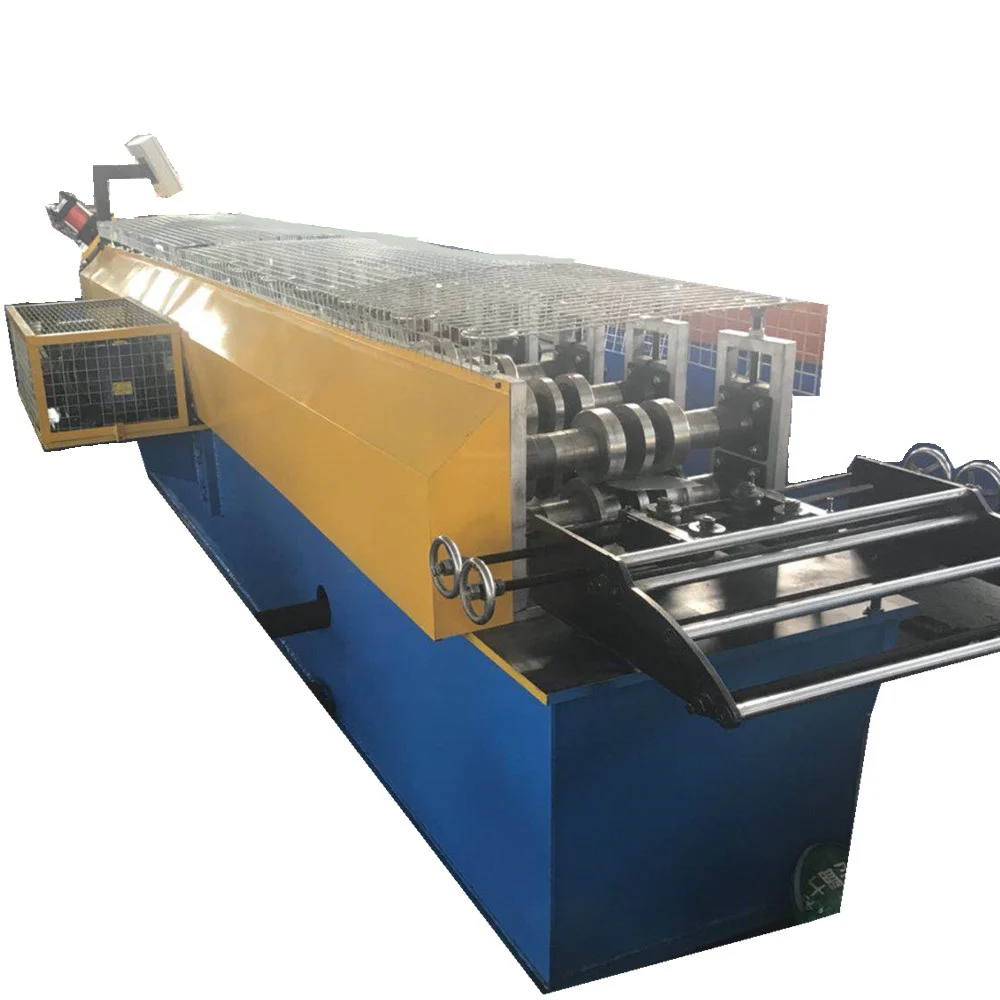

The cable tray machine we design like the following pictures:

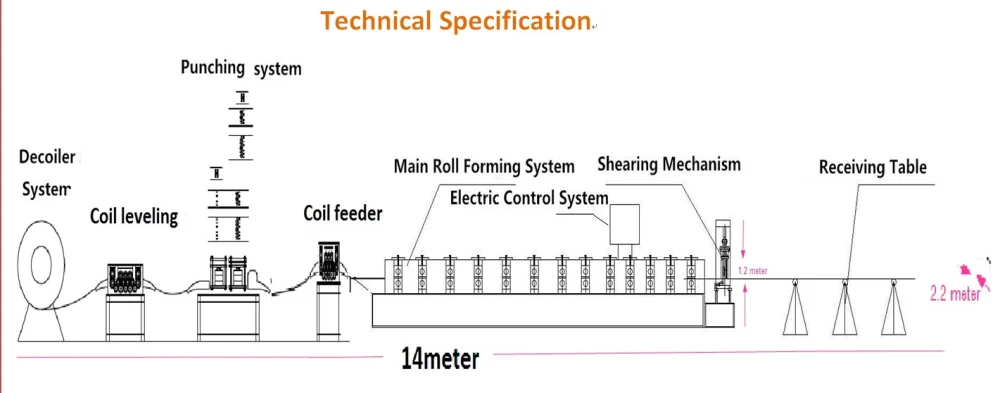

The cable tray machine working flow:
How to adjust sizes for cable tray and cable extension of different sizes

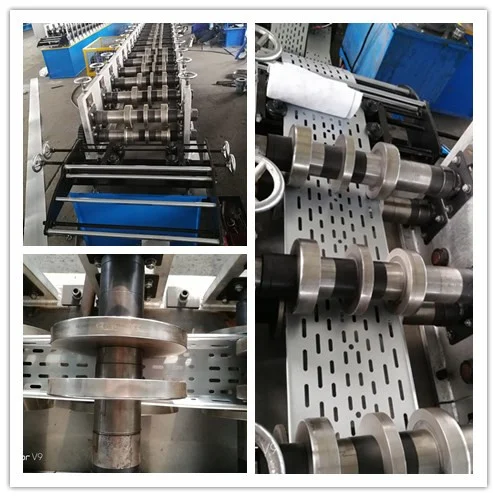

As this cable tray machine supports more sizes, but how to change sizes. We call it as spacer. By the active spacer, you can change sizes easily. The following is about the spacer pictures:
Main elements of the cable tray machine for your reference:
| NO. | Elements nave | Quantity piece | weight (kg) |
| 1. | Decoiler | 1 | 350kg |
| 2. | Coil leveling | 1 | 500kg |
| 3. | Punching machine | 1 | 1250kg |
| 4. | Coil feeder | 1 | 120kg |
| 5. | Roll forming machine (GCr12MoV) | 1 | 6200kg |
| 6. | Hydraulic cutting device | 1 | |
| 7. | Hydraulic station 1 unit | 2 | 150kg |
| 8. | PLC station - Siemens | 1 | |
| 9. | Out table 3m | 1 | |
| 10. | Hydraulic punching heads | 6 | 240kg |
| 11. | Cutting device | 6 | |
| 12. | Total – all: | 8460kg |
