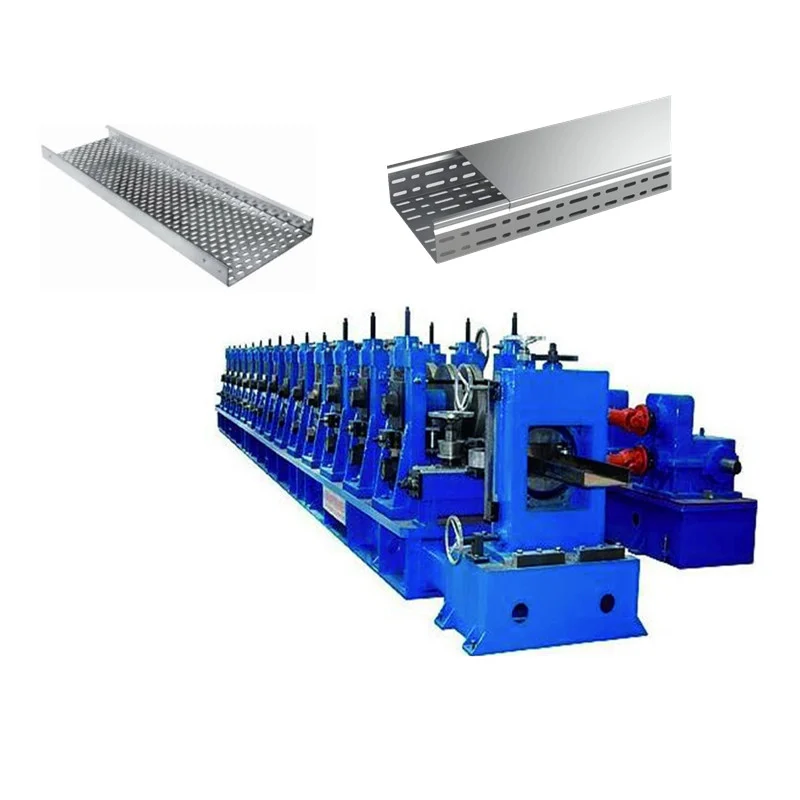

Cable Profile Roll Forming Machine With Punch Machine & Hydraulic Pre-Cutting Device

Cable Profile Roll Forming Machine With Punch Machine & Hydraulic Pre-Cutting Device
 Main technical specifications
1. Coil Material: GI or Carbon Steel
2. Forming material thickness: 1.0-2.5mm
3. Decoil Type: Hydraulic Decoiler
4. Electric releasing coil, hydraulic expanding, tension
5. I.D: 508, 610mm
6. O.D: Max. 1500mm
7. Leveling Device: 2 Rollers pinch feeding, 7 rollers leveling
8. Leveling roller diameter: about Φ 90mm
9. Leveling motor power: 4.0KW
10. Feeding Type: Servo Feeding
11. Servo motor power: 3KW
12. Punching Type: Punch Machine
13. Punching Die: Cr12 Mov, quenching process
14. Punching Die size: according to drawing
15. Punching Power: 15KW
16. Punching controlled by PLC
17. Cutting: Hydraulic pre-cutting
18. Cutting blade material: Cr12Mov, Quench treatment, HRC58-62
19. Hydraulic Station Power: 15KW
20. Shaft Material: 40Cr high grade Steel tempering treatment (HB220-260)
21. Shaft Diameter: Φ 85mm
22. Roller Material: high grade GCr15 steel, and roller surface with hard chrome ≥ 0.05mm
23. Forming Station: 18 stations
24. Forming Speed: 0-15m/min
25. Forming Motor: 15KW
26. Size adjustment: electrical power adjustment
27. Drive type: Chain drive
working flow chart
Decoiling --- Guiding & Leveling --- Punching --- Hydraulic Pre-Cutting --- Roll Forming --- Run-out Table

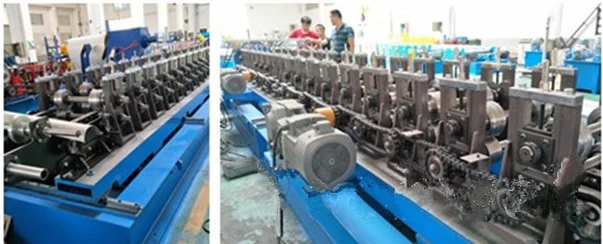

Main components

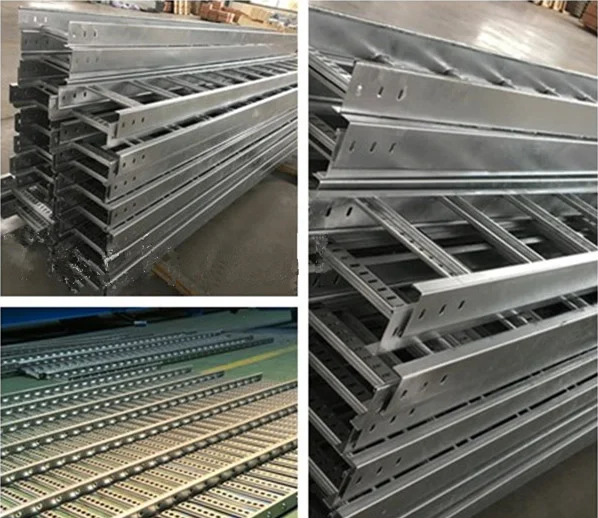

the finished product of the cable tray roll forming machine

The advantages of the cable tray roll forming machine
High Quality
 Reliable
 Durable
 Reasonable Price
 Good after-sales Service
More machine pictures
