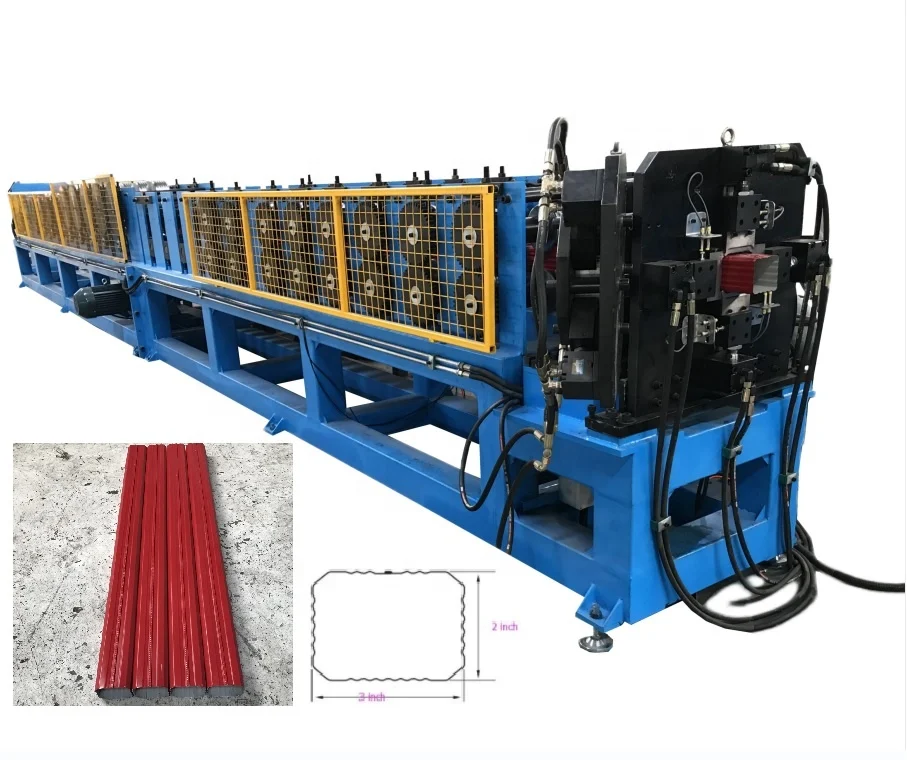

3*4 Downspout water gutter pipe roll forming machine downspouts & downpipes roll forming machine
3*4 Downspout water gutter pipe roll forming machine downspouts & downpipes roll forming machine

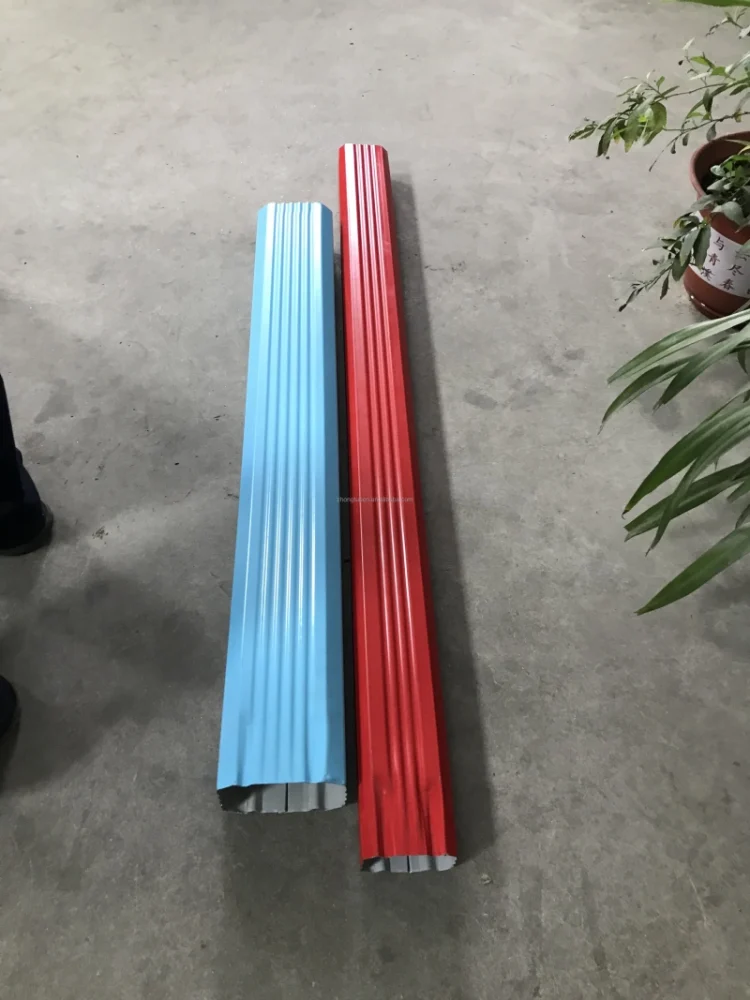

Down pipe machine or downspout forming machine make precise and well sealed roof drain pipe, leader is a pipe for carrying rainwater from a rain gutter.

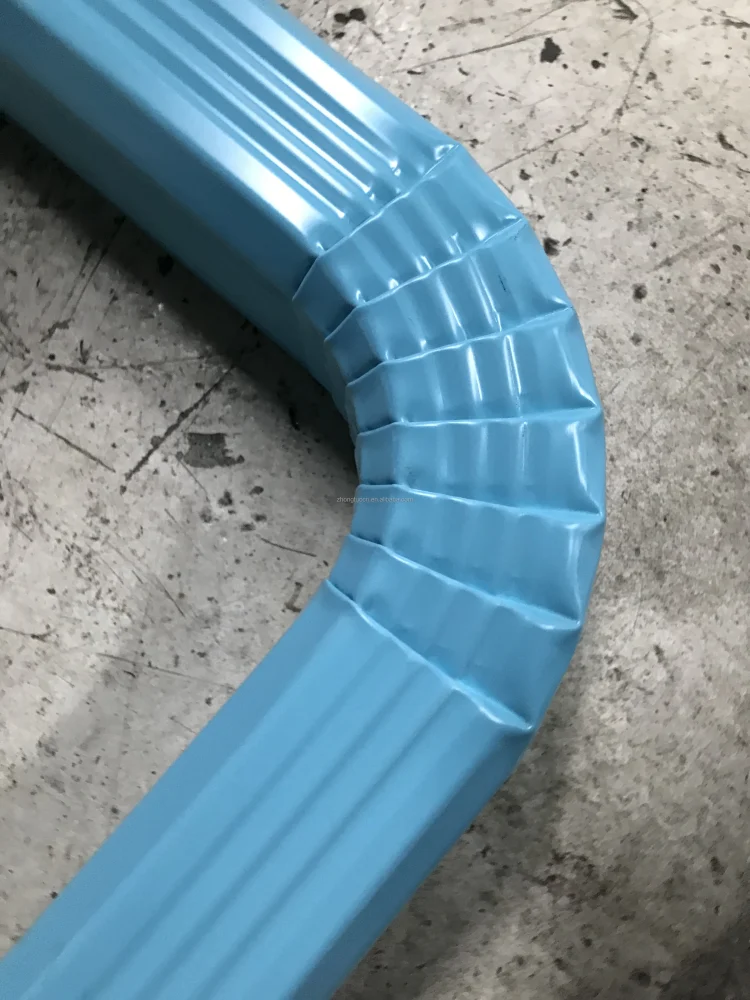

Downspout roll forming machine, also known as downpipe roll forming machine, downspout elbow machine, roof leader, downcomer or gutter downpipe machine. Automatic control PPGI steel Downspout making Machine downspout machine and Bending Machine is for making the downspout pipe for rain water collection and guiding.
Technical Details of Downspout water gutter pipe roll forming machine
| Machine Specifications | |
|---|---|
| Weight | About 5000kgs |
| Size | About 11m x 1.2m x 1m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 0.5-0.8mm |
| Coil width | 325mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 20-22 |
| Diameter of forming rollers shafts | 60mm |
| Roll Forming Speed | 8-12m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Motor of roll forming machine: 5.5kw |
| Motor of sawing cutter: 3kw | |
| Motor of elbow machine: 1.5kw | |
| Electric voltage | According to customer’s requirement |
APPLICATION of Downspout water gutter pipe roll forming machine
Fascia covers to protect timber against splitting flaking and peeling.
Gutter minimise the risk of serious water damage to buildings.
Downpipe is bridge let water pass from gutter to a local stormwater.
ZTRFM Cangzhou zhongtuo machinery factory can manufacture fascia cover machine, gutter machine , downpipe machine with high quality and reasonable price to you, you will emjoy one stop purchase from us.
We already sell half round gutter machine, square gutter machine, fascia cover machine to Australia.
