downspout rain gutter down pipe roll forming machine
1.Component of the downspout rain gutter down pipe roll forming machine
| Item | Name | Remark |
| 1 | Manual decoiler | 5 tons/7 tons |
| 2 | Main roll forming machine | Famous brand motor |
| 3 | Control system | Delta / Siemens brand |
| 4 | Hydraulic system | Chinese famous brand |
| 5 | Receive table | 3 meters |
| 6 | Elbow machine | 1 set |

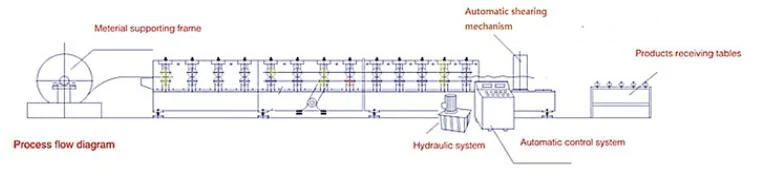

2.Process flow of the downspout rain gutter down pipe roll forming machine
3.Detailed specifications for each part of the Rain gutter Downspout and elbow Roll former machine
| Item | Name | Description |
| 1 | Decoiler | Manual or hydraulic |
| 2 | Machine body | 350H steel welded |
| 3 | Machine frame | 18mm middle plate welded |
| 4 | Roller station | 18 stations |
| 5 | Roller material | 45# steel with quenched treatment and hard chroming |
| 6 | Shaft diameter | 80mm,solid |
| 7 | Shaft material | 45# steel with tempering treatment |
| 8 | Motor power | 5.5 kw |
| 9 | Cutting type | Hydraulic |
| 10 | Control system | PLC,Delta brand |
| 11 | Electric parts | Siemens or Schneider |
| 12 | Hydraulic power | 4 kw |
| 13 | Voltage | 380V,50HZ,3PH |

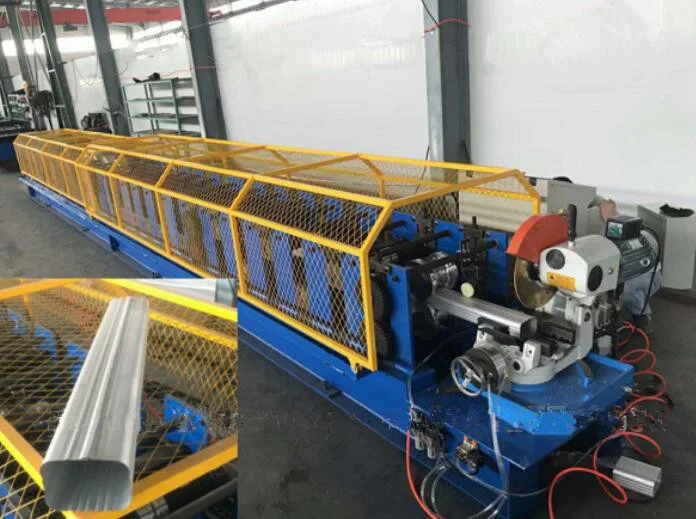

The machine pictures as following :

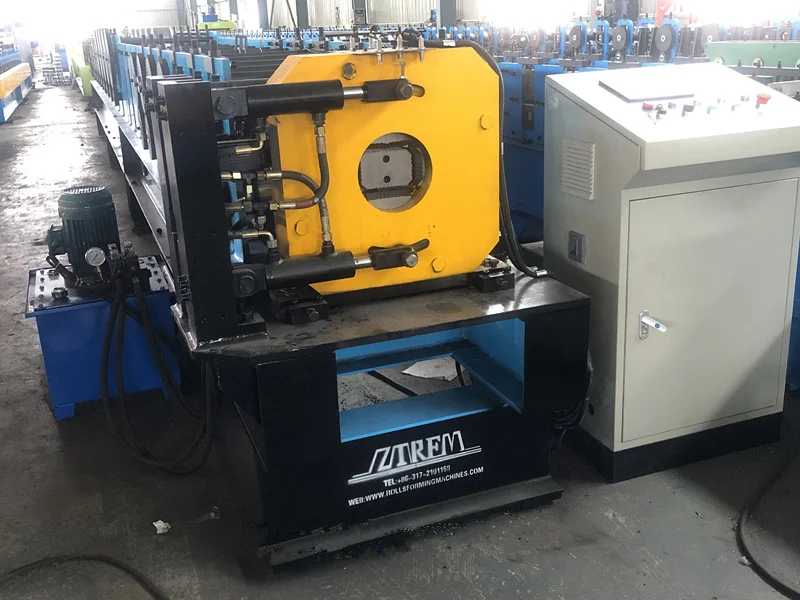

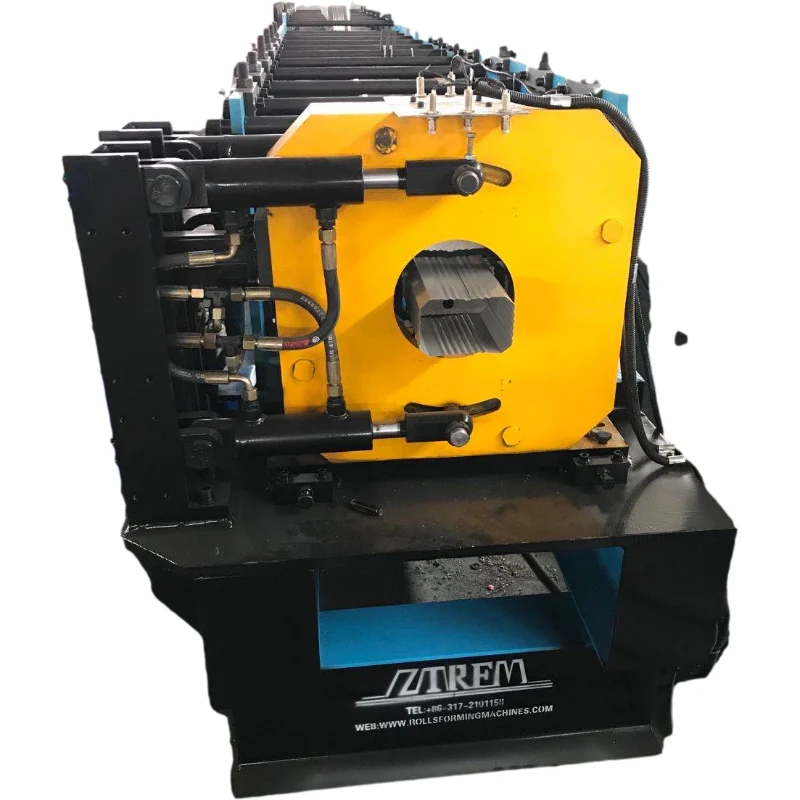

The post cutter

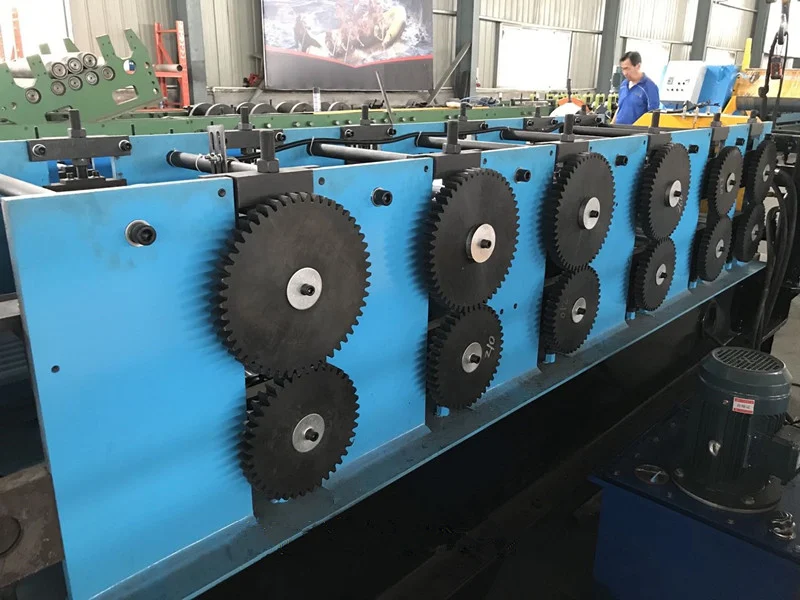

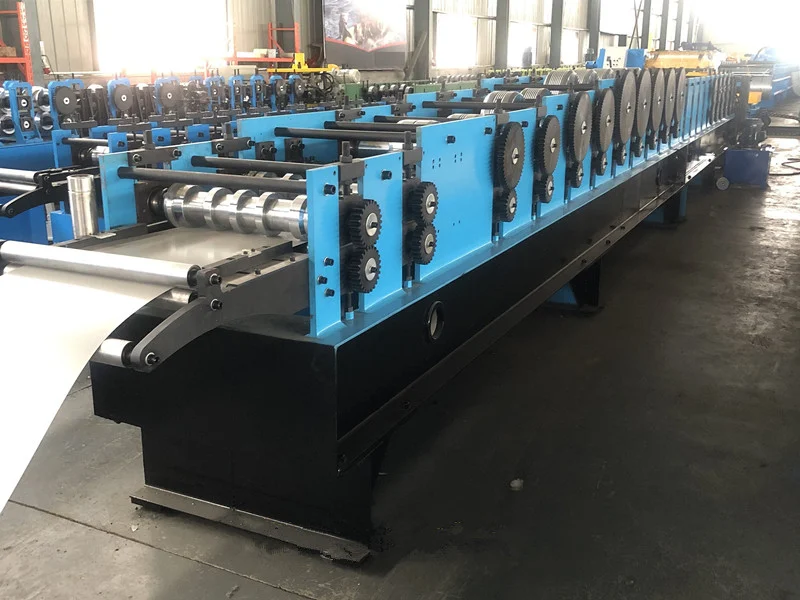

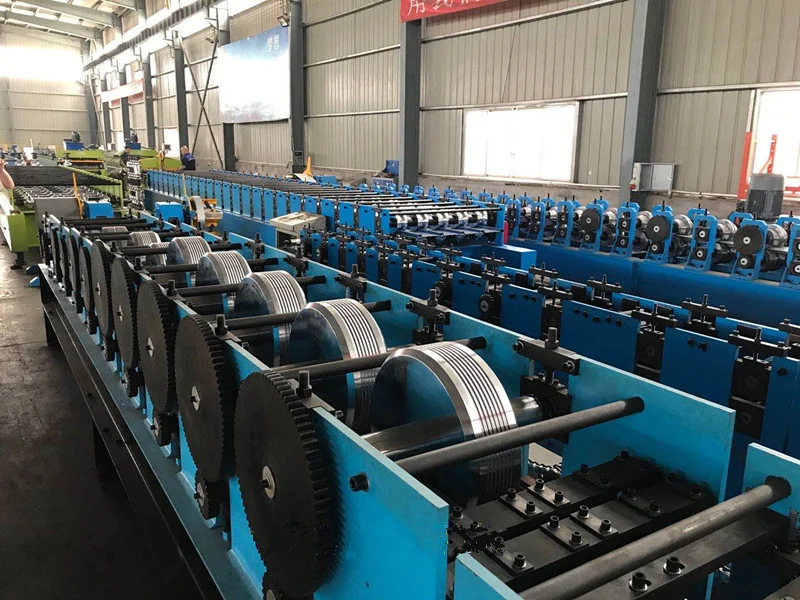

The main machine and the roller
The feeding device

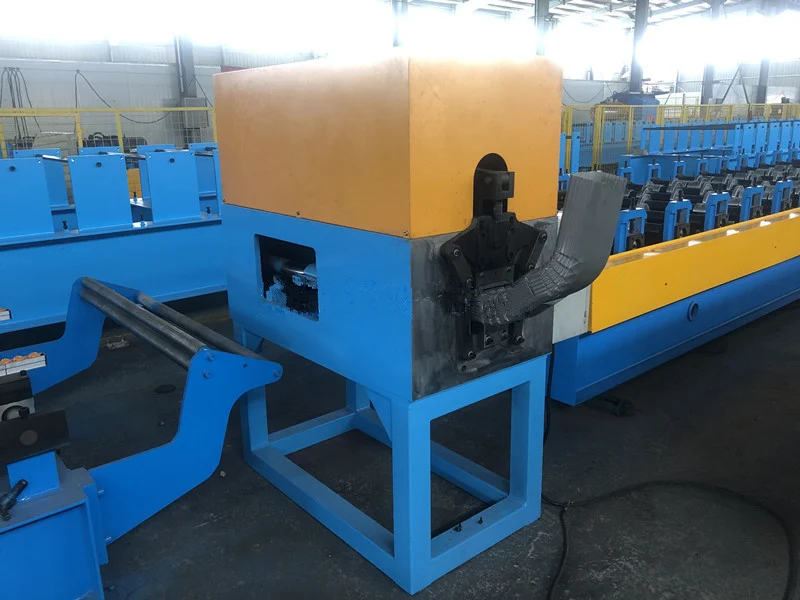

The pipe bending machine（optional）
