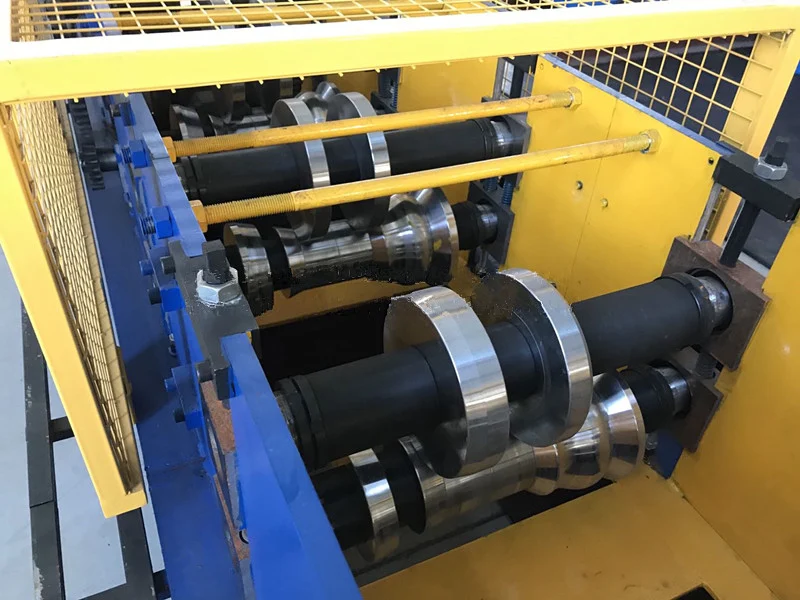

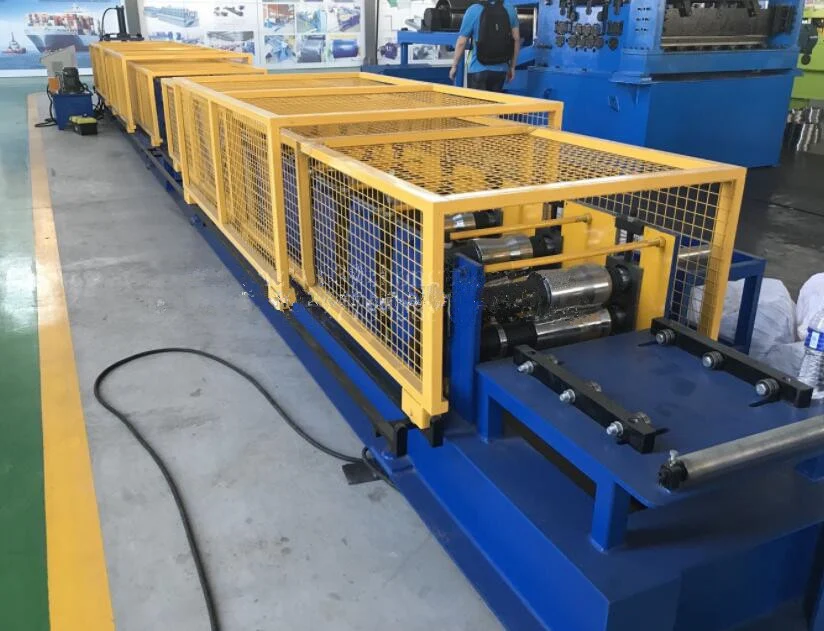

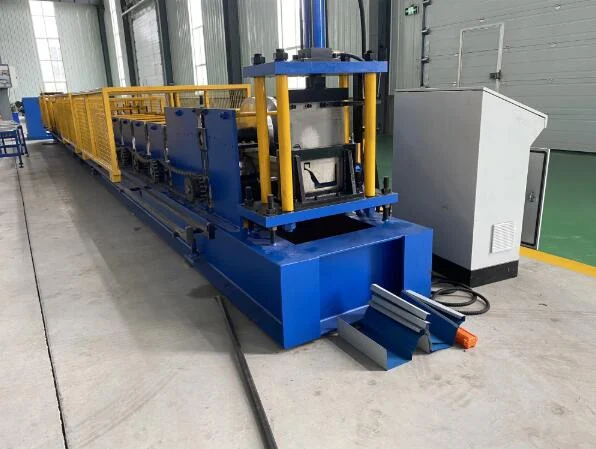

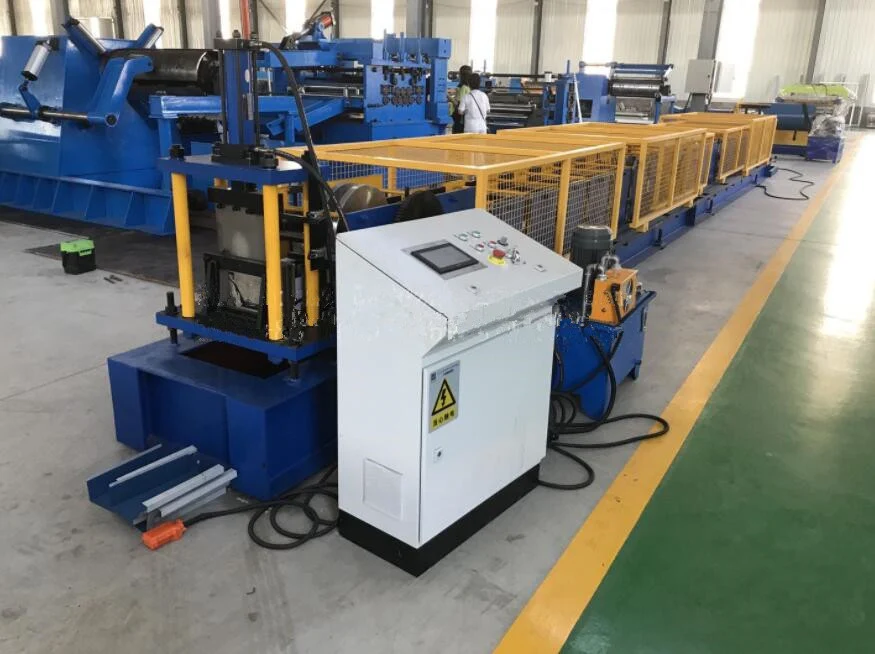

K-Style gutters metal rain gutters roll forming machine

1)machine structure:wall panel structure
2)Main power:8-9KW siemens motor
3)Forming stations:22
4) Way of drive:1.0"single row chain drive
5)Diameter of shaft:80mm
6)Max rolling speed: 12-15m/min
7)Thickness: 0.3-0.8mm galvanized steel or prepainted sheet,G550Mpa
8) Material width:as request
9)Material of roller:polished and coated with chrome, surface with 0.05mm
10)Material of blade mould:Cr12, quenched 58-62℃
11)way of cutting:hydraulic mould cutting(stop to cut)
12)Length cutting tolerance:+/-1.0mm
13)Hydraulic pressure :16Mpa
14)Hydraulic power:5.5kw
15)Computer Control system:PLC control from Taiwan
16)Omron encoder measure the length ,made in Japan
17) Electrical requirement:380V,50Hz,3Ph

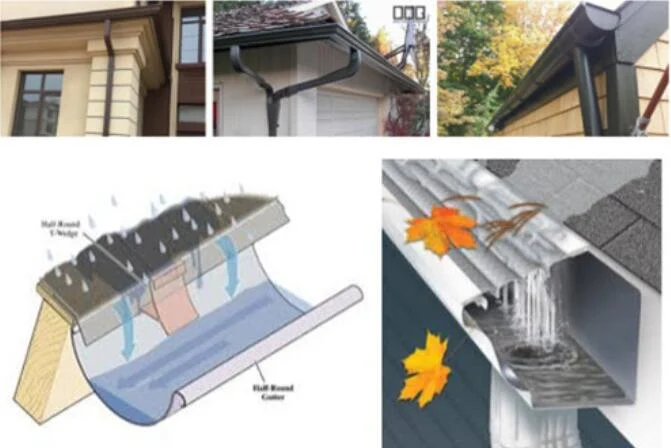

  Application of  Metal gutter machine

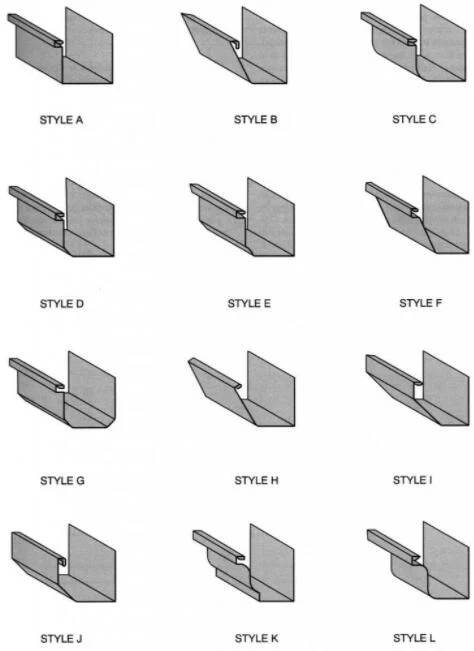

Profile Drawings of  Metal gutter machine
we can offer professional CAD drawins according to your requirement

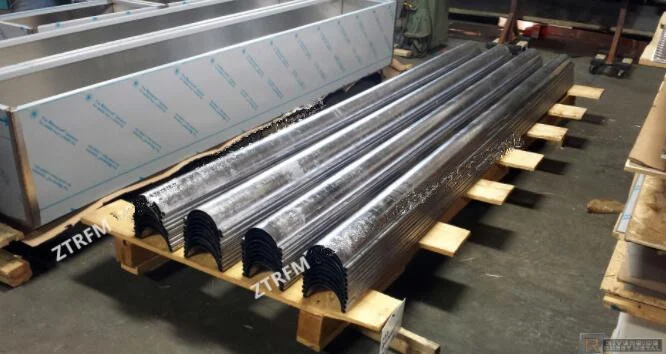

Final product of Metal gutter machine
