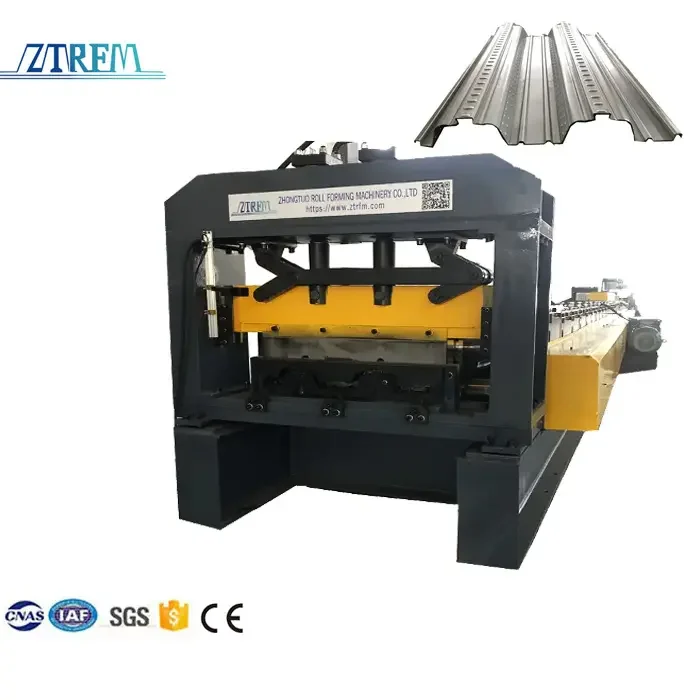

ComFlor® 80 Composite slab steel floor deck roll forming machine floor panel making machine

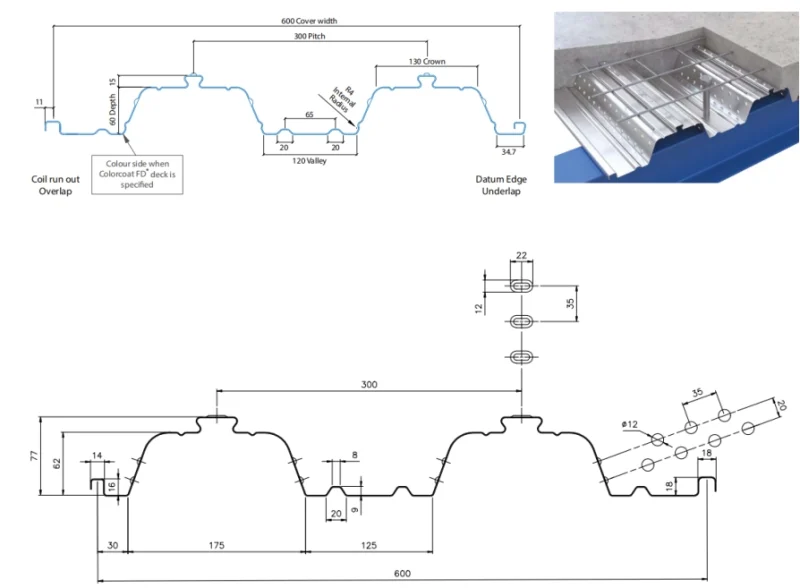

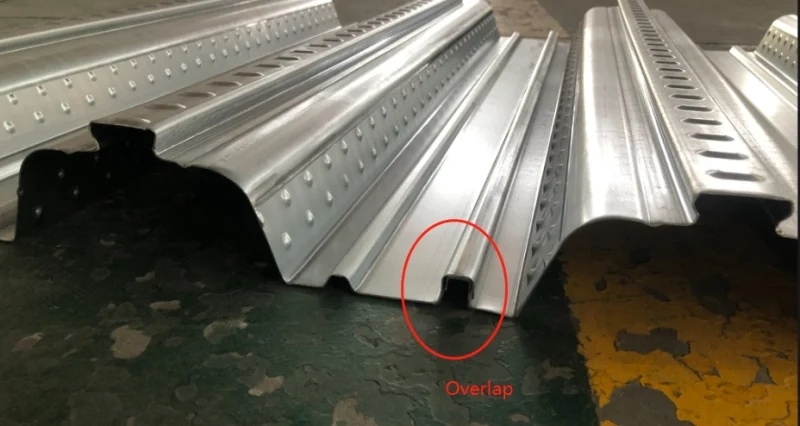

The composite metal decks have embossments in the vertical ribs designed to interlock with concrete slabs, creating a reinforced concrete slab to develop a composite floor system.
Our metal deck roll forming machine could produce floor deck, roof deck, form deck and vigacero (more popular in Peru) according to your drawing. Cangzhou zhongtuo ZTRFM machines offers high efficiency metal deck solutions through our deck rollforming lines that produce roof, composite, and floor metal decks. if you have any request, contact us freely.

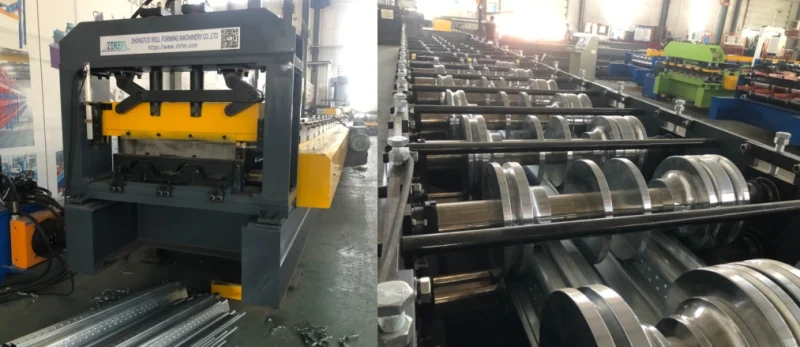

| Composite Deck Durable Floor Decking Roll Forming Machine | ||||
| 1.Formed Material | GI, cold rolled coil | Thickness:1.2mm | ||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） | ||

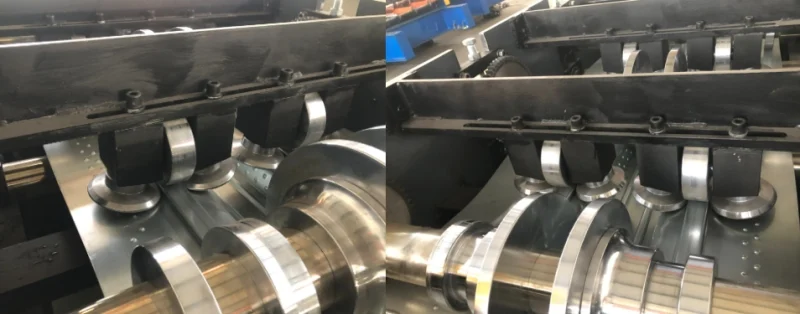

| 3.Main body | Roller station | 36 rows(As your requirement) | ||
| 9 Diameter of shaft | 90mm solid shaft | |||
| Material of rollers | GCR15 | |||
| Machine body frame | Metal steel welded | |||
| Drive | chain transmission | |||
| Dimension(L*W*H) | 5500*800*1200(customize) | |||
| Weight | About 15.5T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 11KW*2 sets | ||
| Hydraulic system power | 5.5KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 40-45m/min(customized) | The speed depends on the shape of the tile and the thickness of the material. | ||
